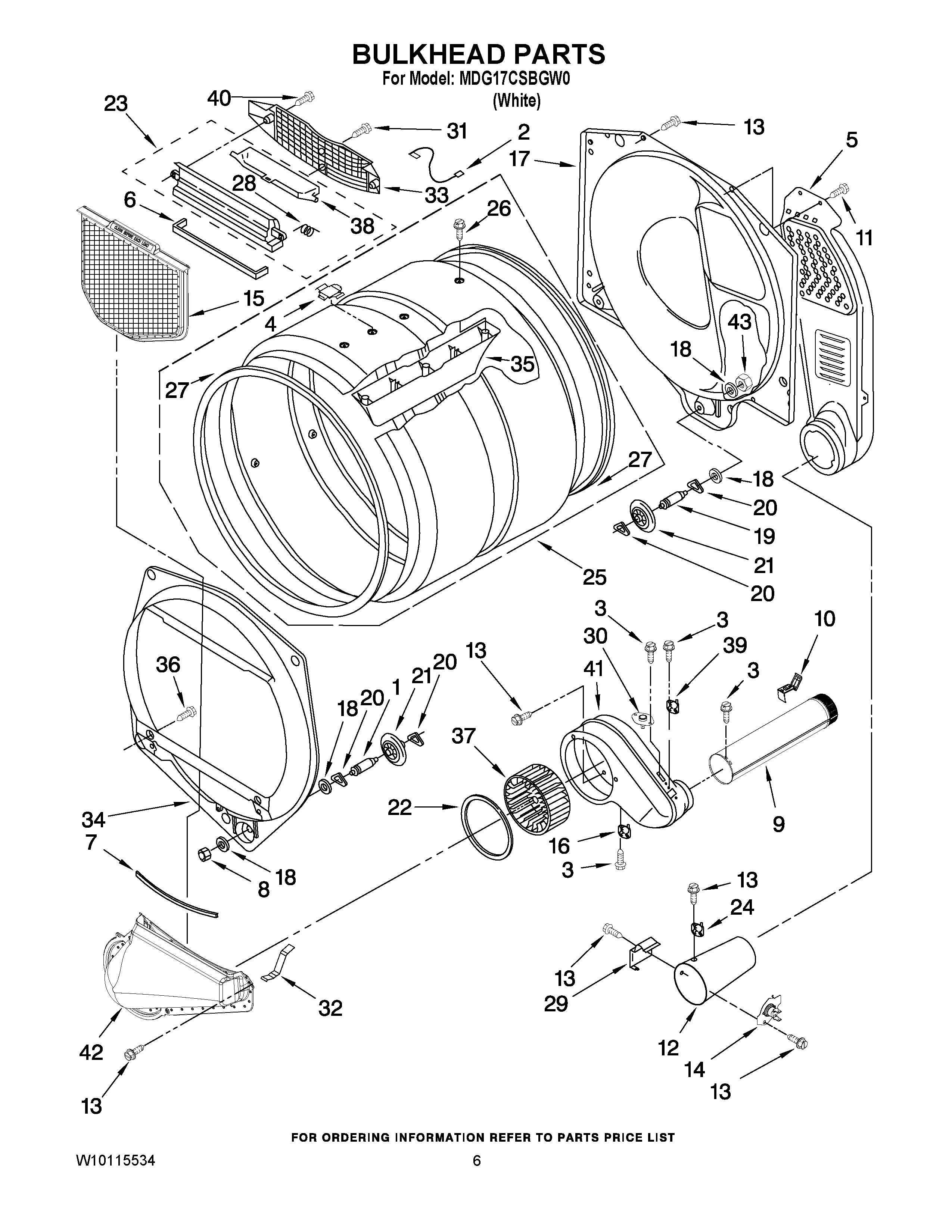

MDG17CSBGW0 03 – BULKHEAD PARTS
Written by
in
MDG17CSBGW0 03 – BULKHEAD PARTS
Products
Position
Product
1
MAY 8575324
2
WIRE JUMPER
3
MAY W10080820
4
Plug, Drum Hole
5
MAY 3394346
6
MAY 697813
7
MAY 697814
8
NUT, 3/8 X 16 (R.H.)
9
Exhaust Pipe
10
CLIP, EXHAUST
11
MAY W10080700
12
MAY 8573824
13
Screw, 6-20 x 3/8
14
MAY W10181549
15
MAY W10049370
16
THERMOSTAT 155º F ELECTRONIC
17
MAY 3387809
18
MAY W10080960
19
MAY 8575325
20
WASHER, TRI RING
21
MAY 8536973
22
SEAL, PLATE COVER
23
MAY W10181927
24
THERMOSTAT 255° F HIGH LIMIT
25
Complete Drum Assembly
26
MAY W10219342
27
MAY W10166807
28
Spring, Lint Screen Door
29
MAY 338906
30
Fuse, Thermal (91 C)
31
MAY 487909
32
CLIP-SPRING
33
MAY W10181926
34
BULKHEAD, FRONT
35
BAFFLE, DRUM
36
MAY W10080590
37
MAY W10168564
38
MAY W10181925
39
THERMOSTAT, CYCLING (140F)
40
Screw, 10-16 x 3/4
41
MAY W10119255
42
Lint Duct Assembly
43
MAY W10080190
←
