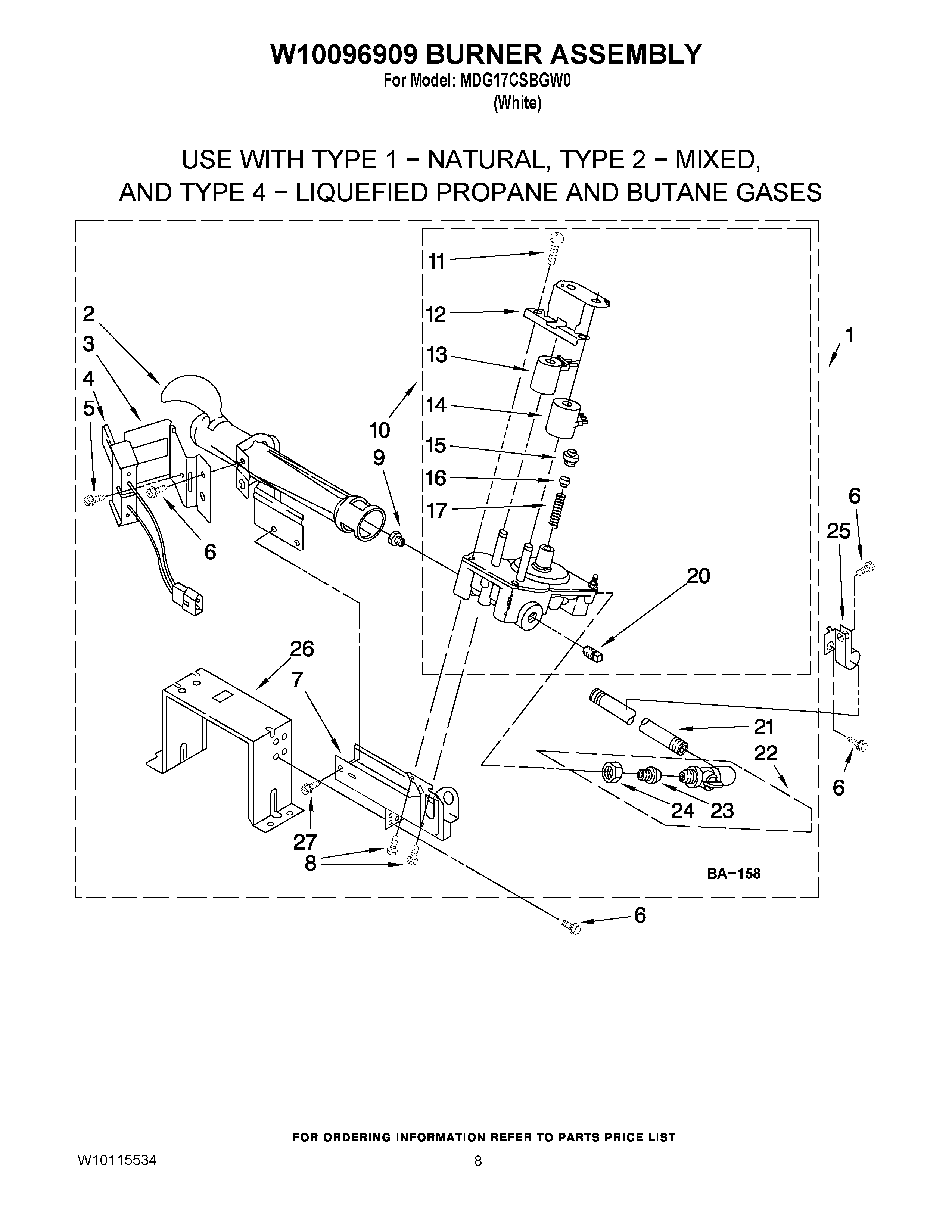

MDG17CSBGW0 04 – W10096909 BURNER ASSEMBLY

MDG17CSBGW0 04 – W10096909 BURNER ASSEMBLY

Written by

in

MDG17CSBGW0 04 – W10096909 BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10135245
1	MAY W10096909
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	Screw & Washer (8-32 x 5/8)
6	Screw, Ground
7	MAY 3389871
8	MAY W10080630
9	ORIFICE, BURNER (TYPE 1)
10	VALVE, GAS 50 HZ. (COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	COIL, 50 HZ. (2 TERMINAL) (MAIN)
14	MAY 695298
15	MAY 694424
16	MAY 694423
17	MAY 694422
20	MAY 239822
21	MAY W10097610
22	Valve & Union Shut-Off
23	MAY 3393767
24	MAY 233076
25	MAY 3387561
26	MAY 3389889
27	MAY W10080320
