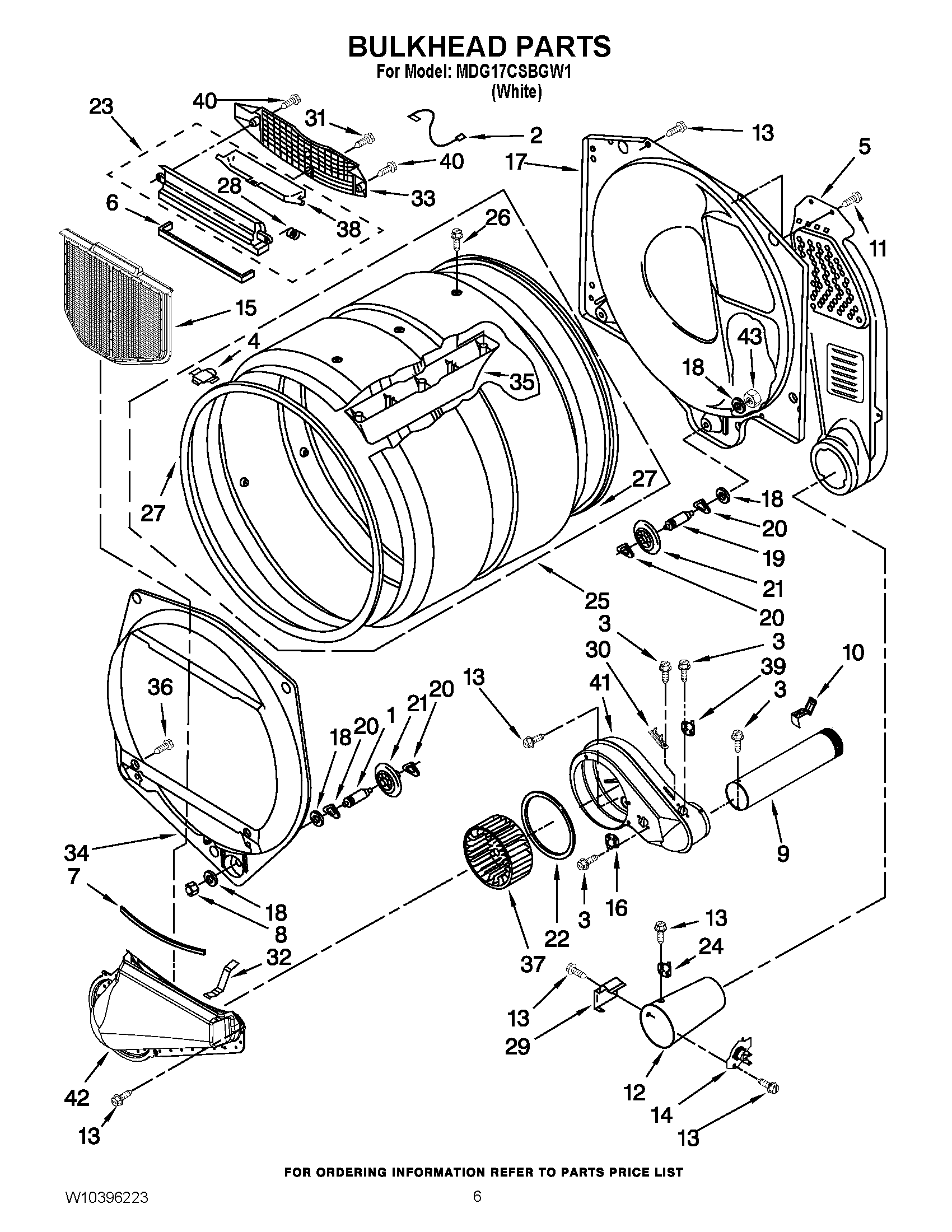

MDG17CSBGW1 03 – BULKHEAD PARTSadmin2025-04-26T10:10:08+00:00MDG17CSBGW1 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | MAY 8575324 |
| 2 | WIRE JUMPER |
| 3 | Screw |
| 4 | CAP, PLUG |
| 5 | MAY 3394346 |
| 6 | MAY 697813 |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | Exhaust Pipe |
| 10 | CLIP, EXHAUST |
| 11 | MAY W10080700 |
| 12 | MAY 8573824 |
| 13 | MAY 8533971 |
| 14 | MAY W10181549 |
| 15 | MAY W10049370 |
| 16 | THERMOSTAT 155º F ELECTRONIC |
| 17 | MAY 3387809 |
| 18 | WASHER |
| 19 | MAY 8575325 |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | SEAL, PLATE COVER |
| 23 | MAY W10181927 |
| 24 | THERMOSTAT 255° F HIGH LIMIT |
| 25 | Complete Drum Assembly |
| 26 | MAY W10219342 |
| 27 | MAY W10166807 |
| 28 | Spring, Lint Screen Door |
| 29 | MAY 338906 |
| 30 | Fuse, Thermal (91 C) |
| 31 | Screw, 8-18 x 1/2 |
| 32 | CLIP, SPRING |
| 33 | MAY W10181926 |
| 34 | BULKHEAD, FRONT |
| 35 | BAFFLE, DRUM |
| 36 | SCREW |
| 37 | MAY W10349492 |
| 38 | MAY W10181925 |
| 39 | THERMOSTAT, CYCLING (140F) |
| 40 | Screw, 10-16 x 3/4 |
| 41 | MAY W10119255 |
| 42 | Lint Duct Assembly |
| 43 | NUT, HEX (LEFT HAND THREAD) |
