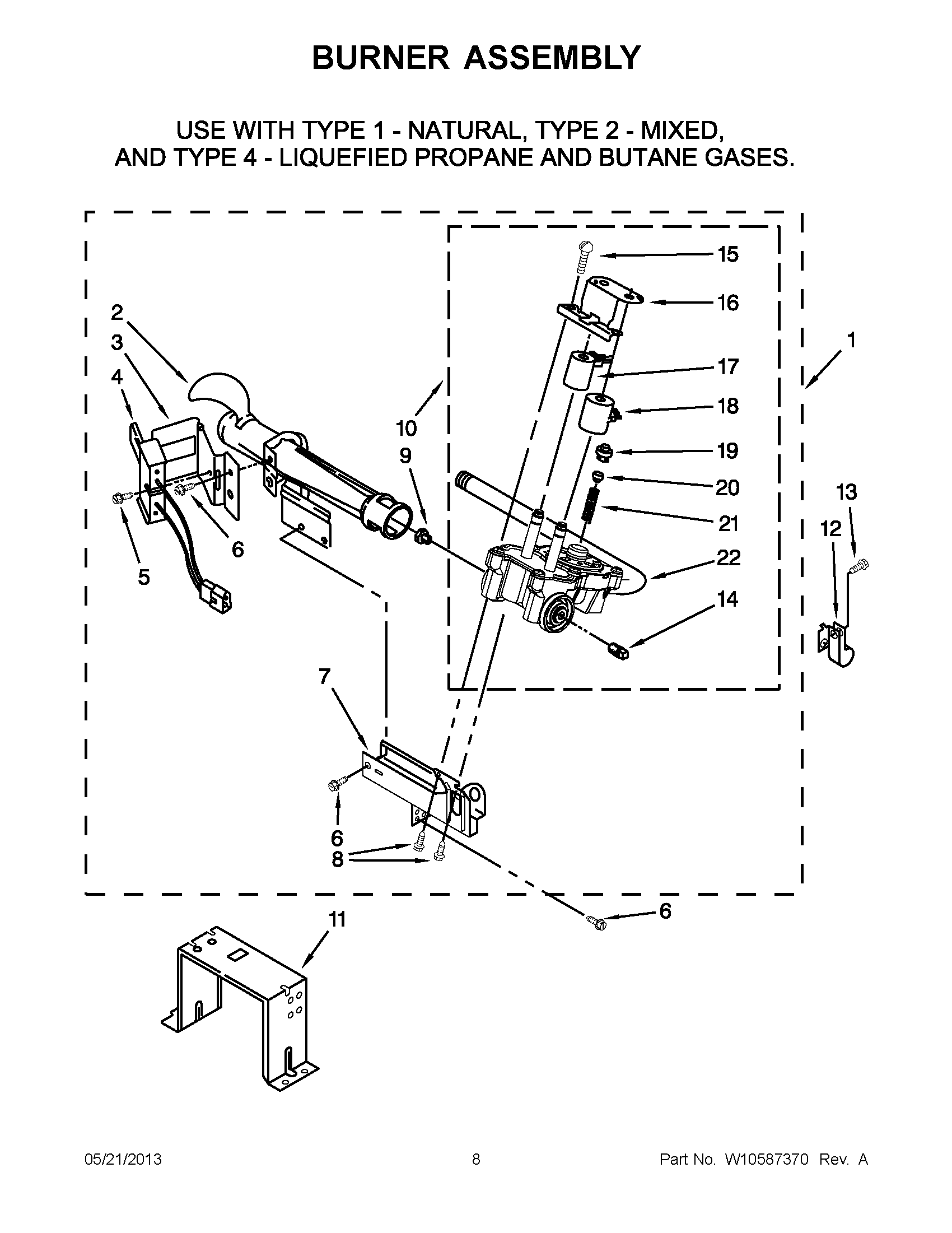

MDG17CSBGW3 04 – BURNER ASSEMBLY

Products

PositionProduct
NIMAY W10233219
NILINER (NOT A SERVICEABLE PART)
1MAY W10096909
2MAY 688617
3MAY 694298
4MAY 686590
5MAY 3393909
6SCREW
7MAY 3389871
8SCREW
9ORIFICE, BURNER (TYPE 1)
9MAY 234868
10VALVE, GAS 50 HZ. (COMPLETE)
11MAY 3389889
12MAY 3978776
13SCREW
14MAY W10295523
15SCREW, COIL
16MAY 694538
17COIL, 50 HZ. (2 TERMINAL) (MAIN)
18MAY 695298
19MAY 694424
20MAY 694423
21MAY 694422
22MAY W10097610
