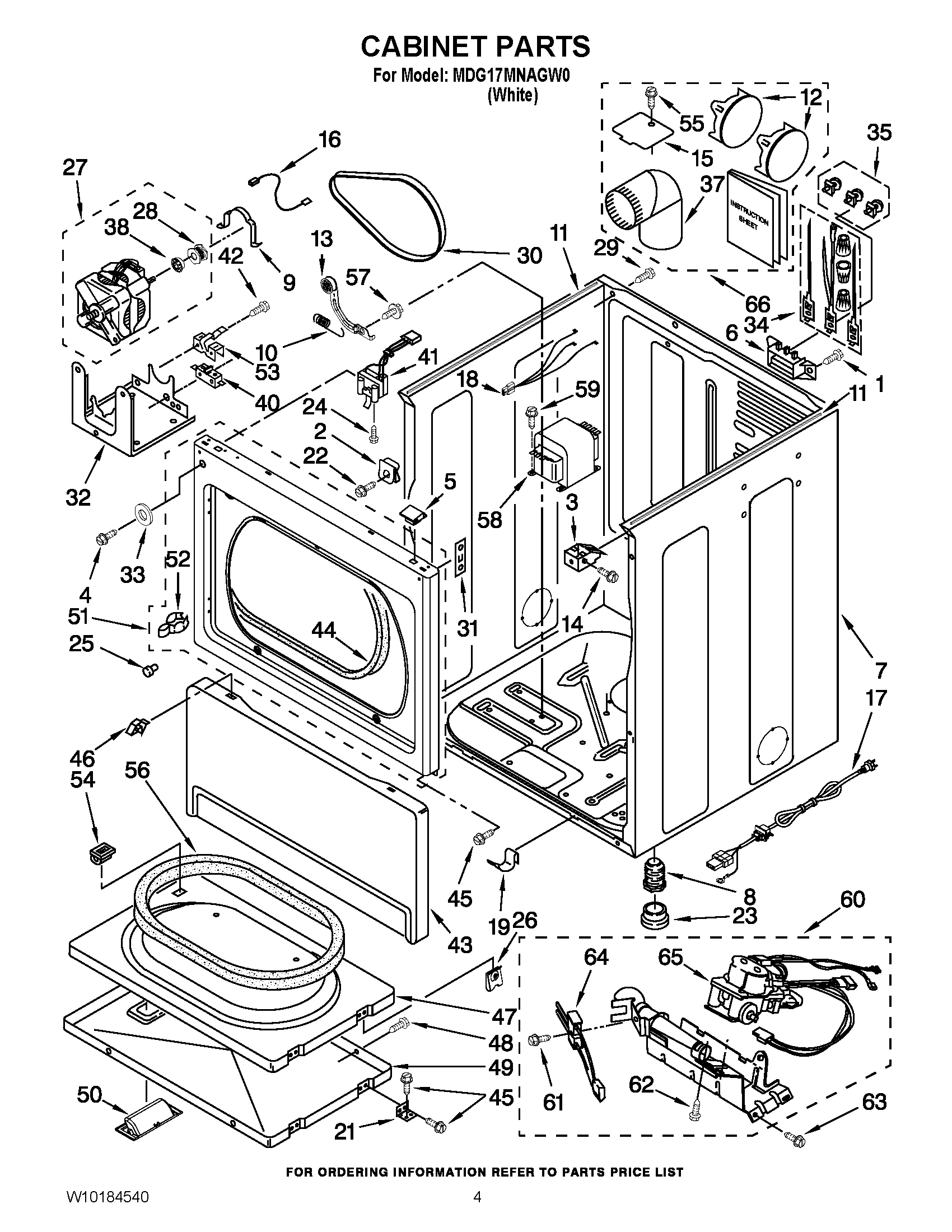

MDG17MNAGW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	MAY 279818
NI	MAY W10223807
NI	MAY W10223809
NI	MAY W10223804
NI	MAY W10153836
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, 10-16 X 1/2
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	LOCK TOP
6	MAY 3397659
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SEAL-FOAM (IEC)
12	MAY 697750
13	MAY W10118754
14	MAY W10223793
15	MAY 3394331
16	MAY 3394081
17	MAY W10207854
18	JUMPER, TRANSFORMER
19	Clip (2)
21	Hinge & Pin Assembly (2)
22	MAY W10131119
23	BOOT, FOOT
24	MAY W10080540
25	BUMPER
26	Nut, Inner Door (4)
27	Motor Assembly (50 Hz.)
28	MAY 3402548
29	MAY 8533974
30	BELT, DRIVE
31	MAY 3390902
32	MAY 3387118
33	MAY W10223794
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
37	MAY 279731
38	MAY 3393657
40	MAY 8318457
41	MAY W10237959
42	MAY W10118188
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	SCREW
46	RETAINER
47	MAY 3392563
48	MAY W10080300
49	MAY 3387872
50	Handle, Door (White)
51	Front Panel
52	Strike, Door
53	Lever, Snap Switch
54	MAY 3392538
56	MAY 3390735
57	MAY W10080670
58	MAY 3977633
59	MAY W10080740
60	MAY W10096909
61	MAY 3393909
62	MAY W10080630
63	SCREW
64	MAY 686590
65	VALVE, GAS 50 HZ. (COMPLETE)
