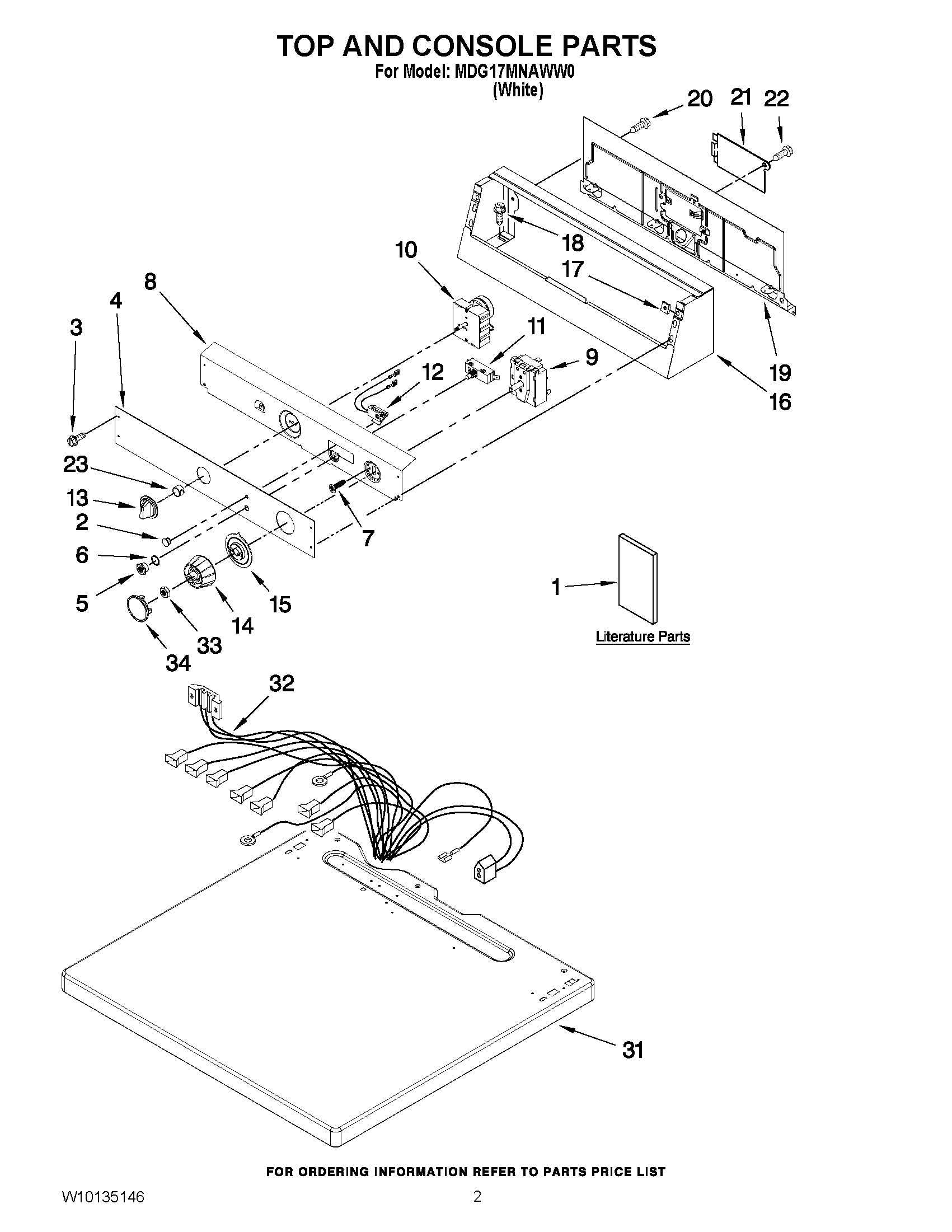

MDG17MNAWW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10135146
1	MAY W10135130
1	WIRING DIAGRAM
2	INDICATOR LIGHTS ASSEMBLY
3	MAY W10131119
4	MAY W10135184
5	MAY W10146429
6	MAY W10139799
7	SCREW
8	MAY W10124216
9	TIMER, DRYER
10	MAY W10129712
11	MAY W10149462
12	Lamp-Indicator 120 V.
13	KNOB
14	MAY W10133505
15	SKIRT, DIAL
16	MAY W10137300
17	NUT, "U"
18	MAY W10139210
19	MAY 8317305
20	SCREW
21	MAY 8317340
22	Screw, 8-18 x 3/8
23	MAY W10140928
31	TOP (WHITE)
32	HARNESS, MAIN
33	NUT, HEX
34	CAP, KNOB
