MDG17MNAWW1 01 – TOP AND CONSOLE PARTS – Aparts

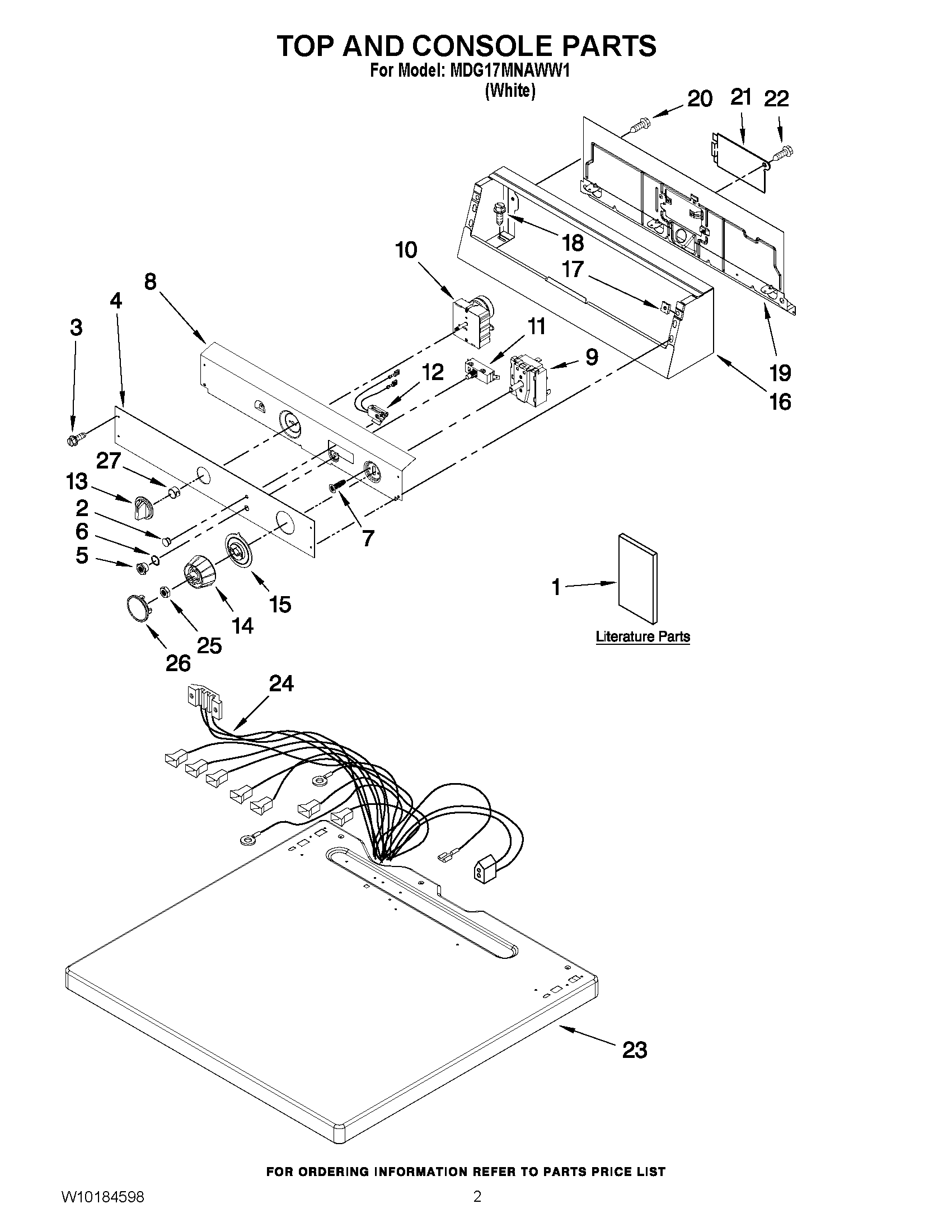

MDG17MNAWW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10184598
1	WIRING DIAGRAM
1	MAY W10184576
2	INDICATOR LIGHTS ASSEMBLY
3	MAY W10131119
4	MAY W10135184
5	MAY W10146429
6	MAY W10139799
7	SCREW
8	MAY W10124216
9	TIMER, DRYER
10	MAY W10129712
11	MAY W10149462
12	Lamp-Indicator 120 V.
13	KNOB
14	MAY W10133505
15	SKIRT, DIAL
16	MAY W10205150
17	NUT, "U"
18	MAY W10139210
19	MAY 8317305
20	SCREW
21	MAY 8317340
22	Screw, 8-18 x 3/8
23	TOP (WHITE)
24	HARNESS, MAIN
25	NUT, HEX
26	CAP, KNOB
27	MAY W10140928
