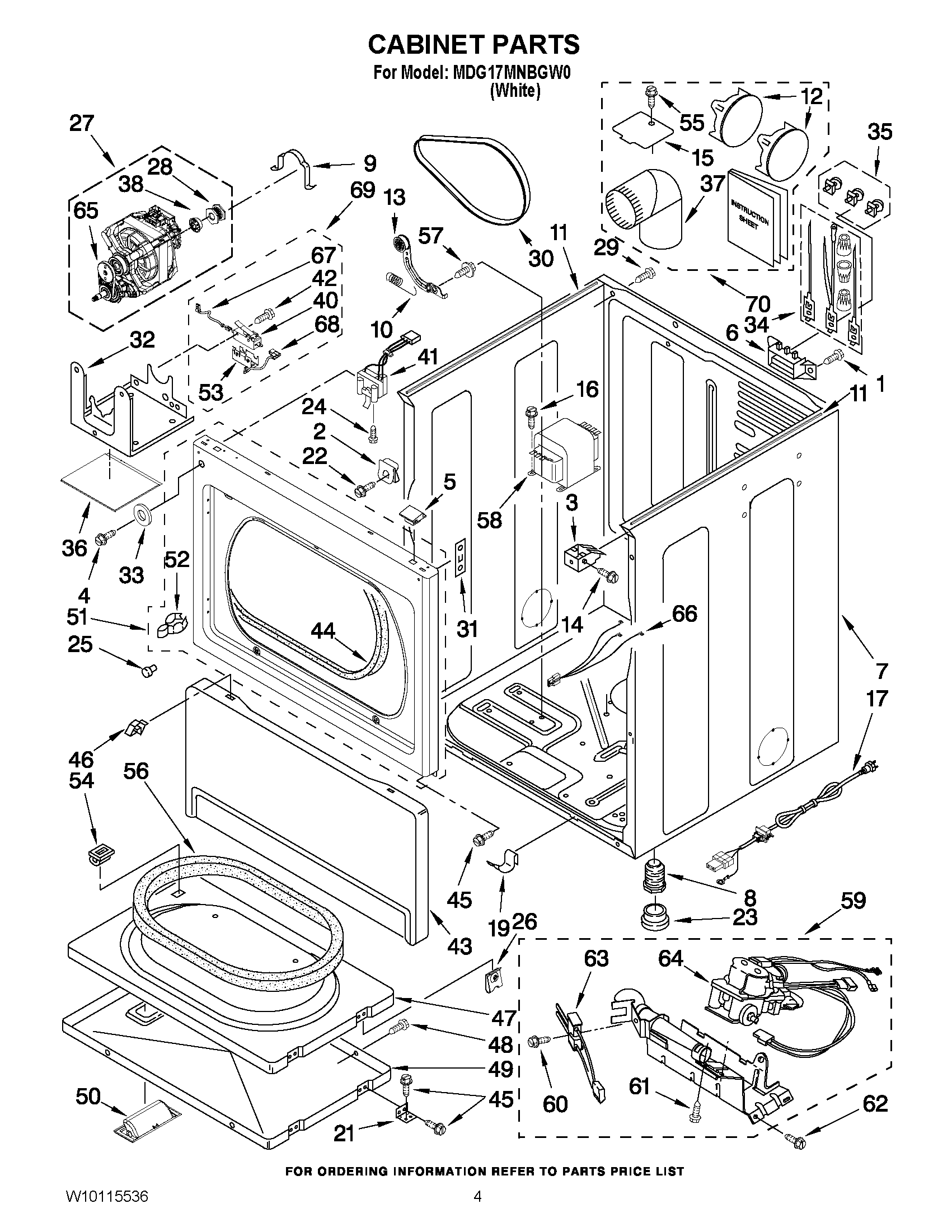

MDG17MNBGW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	MAY 279818
NI	MAY W10223804
NI	MAY W10223809
NI	MAY W10153836
NI	MAY W10223807
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, 10-16 X 1/2
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	LOCK TOP
6	MAY 3397659
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SEAL-FOAM (IEC)
12	MAY 697750
13	ASSEMBLY, IDLER
14	MAY W10223793
15	MAY 3394331
16	MAY W10080740
17	MAY W10207854
19	Clip (2)
21	Hinge & Pin Assembly (2)
22	MAY W10131119
23	BOOT, FOOT
24	MAY W10080540
25	BUMPER
26	Nut, Inner Door (4)
27	ASSEMBLY, MOTOR (50 HZ.)
28	MAY W10167237
29	MAY 8533974
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	MAY W10223794
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
36	DAPENING PANEL
37	MAY 279731
38	MAY 3393657
40	Switch, Broken Belt
41	MAY W10237959
42	SCREW
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	SCREW
46	RETAINER
47	MAY 3392563
48	MAY W10080300
49	MAY 3387872
50	Handle, Door (White)
51	PANEL, FRONT (WHITE)
52	Strike, Door
53	MAY 8564011
54	MAY 3392538
56	MAY 3390735
57	SCREW
58	MAY 3977633
59	MAY W10096909
60	MAY 3393909
61	MAY W10080630
62	SCREW
63	MAY 686590
64	VALVE, GAS 50 HZ. (COMPLETE)
65	MAY 3405160
66	JUMPER, TRANSFORMER
67	Wire, Belt (To Protector)
68	MAY 8539892
69	ASSEMBLY, SWITCH
