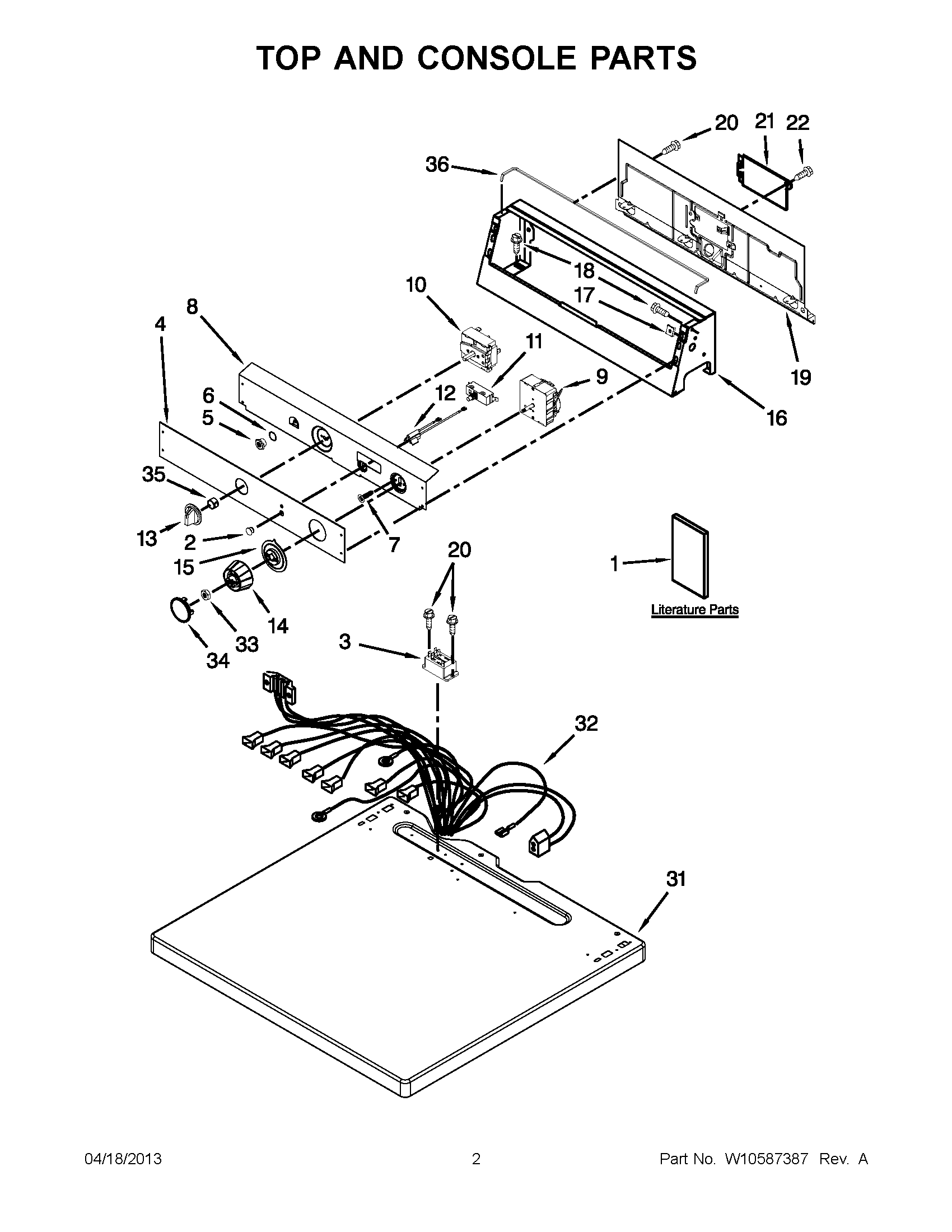

MDG17MNBGW3 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10115538
1	MAY W10396191
2	INDICATOR LIGHTS ASSEMBLY
3	RELAY, HEATER 230V
4	MAY W10135191
5	MAY W10146429
6	MAY W10139799
7	SCREW
8	MAY W10124216
9	MAY W10157945
10	SWITCH, CYCLE SELECTION
11	MAY W10181931
12	LAMP, INDICATOR
13	KNOB
14	MAY W10133505
15	SKIRT, DIAL
16	MAY W10205150
17	NUT, "U"
18	MAY W10139210
19	MAY W10121161
21	MAY W10096918
22	SCREW
31	TOP (WHITE)
32	MAY W10386328
33	NUT, HEX
34	CAP, KNOB
35	MAY W10140928
36	Foam Seal
