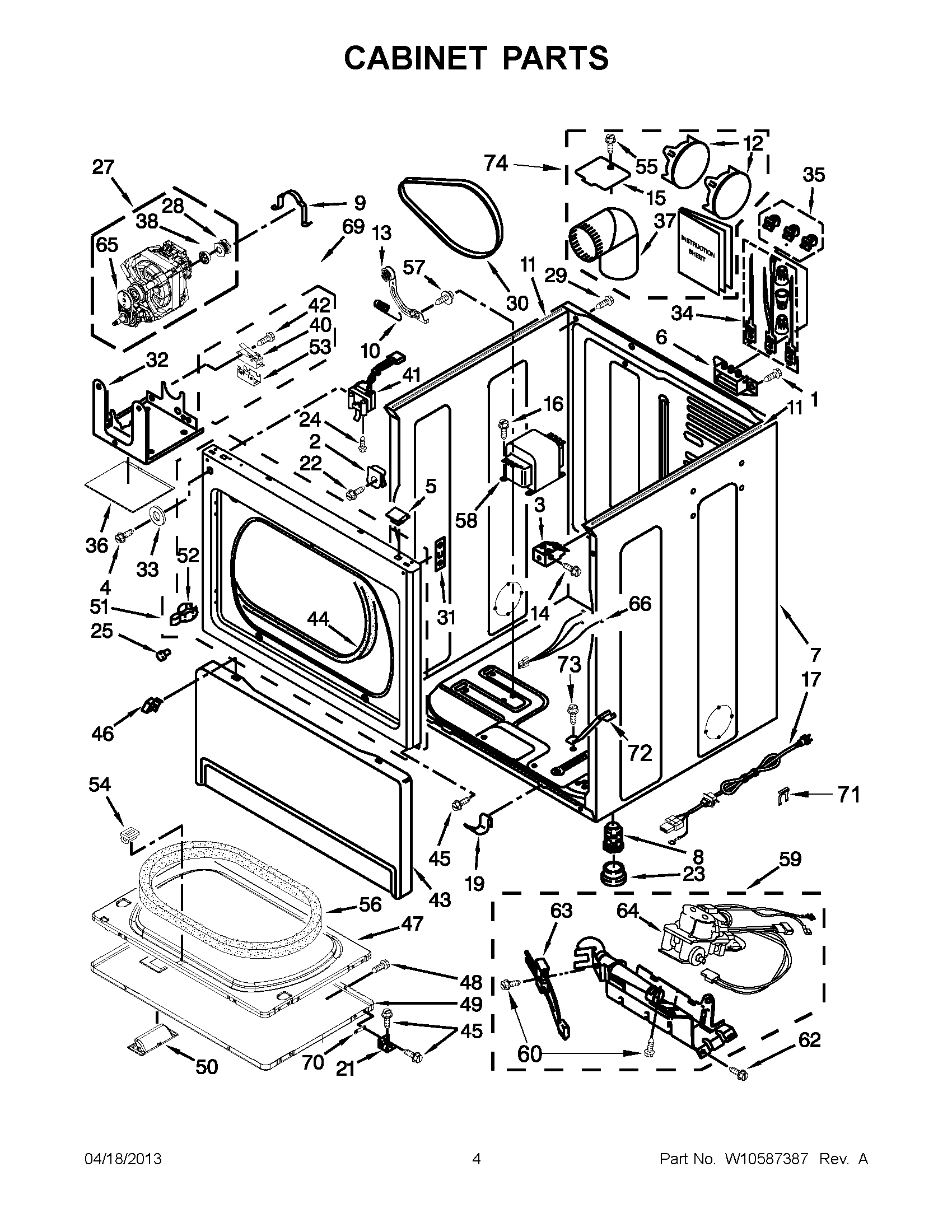

MDG17MNBGW3 02 – CABINET PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD ADAPTER (EUROPEAN)
NI	MAY W10476818
NI	MAY 279810
1	SCREW, 10-16 X 1/2
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	LOCK TOP
6	MAY 3397659
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SEAL-FOAM (IEC)
12	MAY 697750
13	MAY W10344192
14	SCREW
15	MAY 3394331
16	SCREW
17	CORD-POWER
19	CLIP
21	ASSEMBLY, HINGE & PIN (SILVER)
22	SCREW
23	BOOT, FOOT
24	SCREW
25	BUMPER
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10167237
29	MAY 8533974
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	MAY W10223794
34	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
35	MAY 279393
36	DAPENING PANEL
37	MAY 49026
38	MAY 3393657
40	ASSEMBLY, SWITCH ACTUATOR
41	MAY W10237959
42	SCREW
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY W10323061
48	MAY W10080300
49	DOOR, FRONT
50	Handle, Door (White)
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	MAY 8564011
54	MAY 3392538
56	MAY 3390735
57	SCREW
58	MAY 3977633
59	MAY W10096909
60	MAY 3393909
62	SCREW
63	MAY 686590
64	VALVE, GAS 50 HZ. (COMPLETE)
65	MAY 3405160
66	JUMPER, TRANSFORMER
69	ASSEMBLY, SWITCH
70	PLUG, HINGE SCREW
71	STRAIN-RELIEF CLIP
72	MAY W10181903
73	Screw
74	MAY 279818
