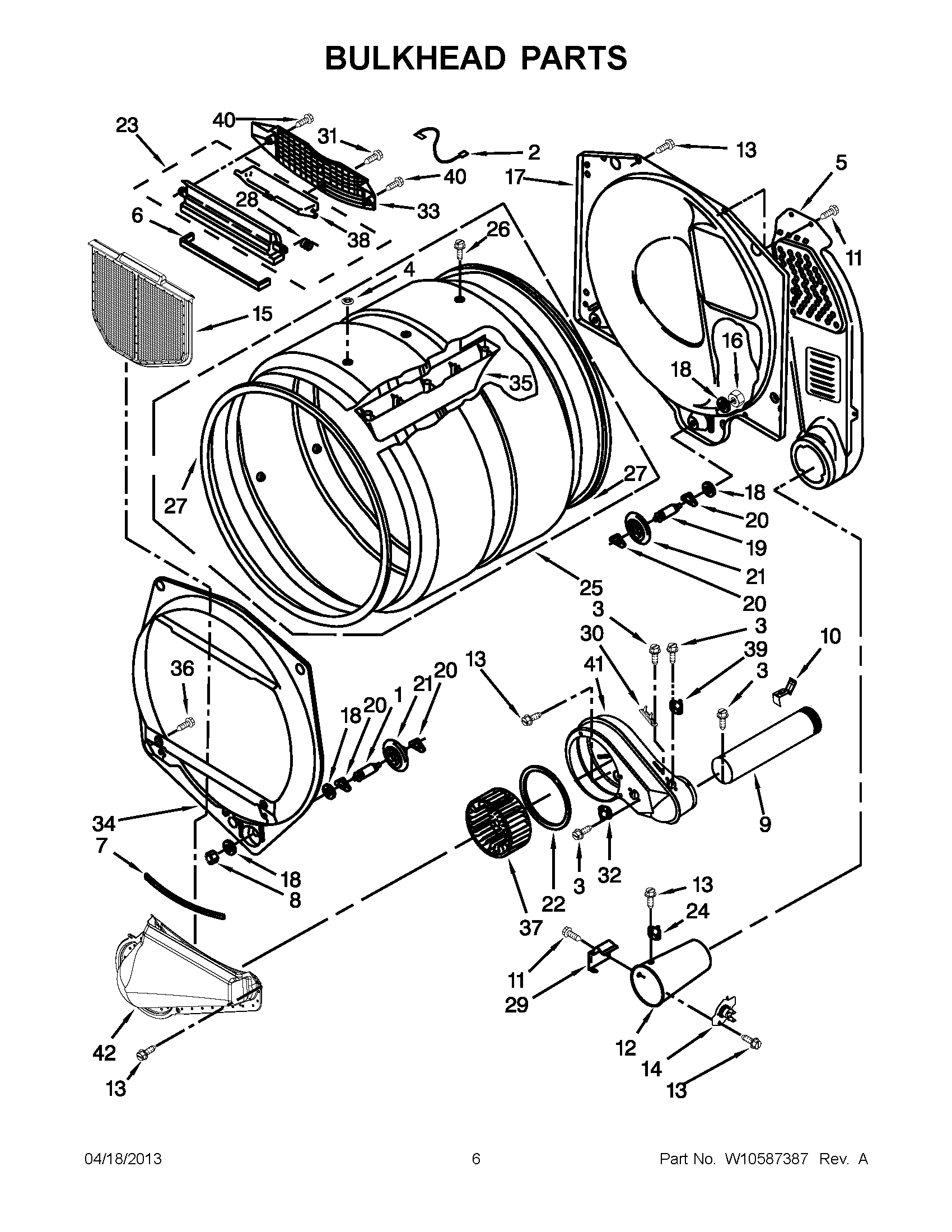

MDG17MNBGW3 03 – BULKHEAD PARTS

MDG17MNBGW3 03 – BULKHEAD PARTS

Written by

in

MDG17MNBGW3 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT, DRUM ROLLER RIGHT HAND THREAD
2WIRE JUMPER
3Screw
4CAP, PLUG
5MAY 3394346
6MAY 697813
7MAY 697814
8NUT, HEX
9Exhaust Pipe
10CLIP, EXHAUST
11SCREW,8-18 X 3/8
12MAY 8573824
13Screw
14MAY W10181549
15LINT SCREEN (WHITE)
16NUT, HEX (LEFT HAND THREAD)
17MAY 3387809
18WASHER
19SHAFT, DRUM ROLLER – LEFT HAND THREAD
20WASHER, TRI RING
21ROLLER, SUPPORT
22SEAL, PLATE COVER
23MAY W10181927
24THERMOSTAT 255° F HIGH LIMIT
25Complete Drum Assembly
26MAY W10219342
27MAY W10166807
28Spring, Lint Screen Door
29MAY 338906
30Fuse, Thermal (91 C)
31Screw, 8-18 x 1/2
32THERMOSTAT 155º F ELECTRONIC
33MAY W10181926
34BULKHEAD, FRONT
35BAFFLE, DRUM
36SCREW
37MAY W10349492
38MAY W10181925
39THERMOSTAT, CYCLING (140F)
40SCREW
41MAY W10119255
42Lint Duct Assembly
