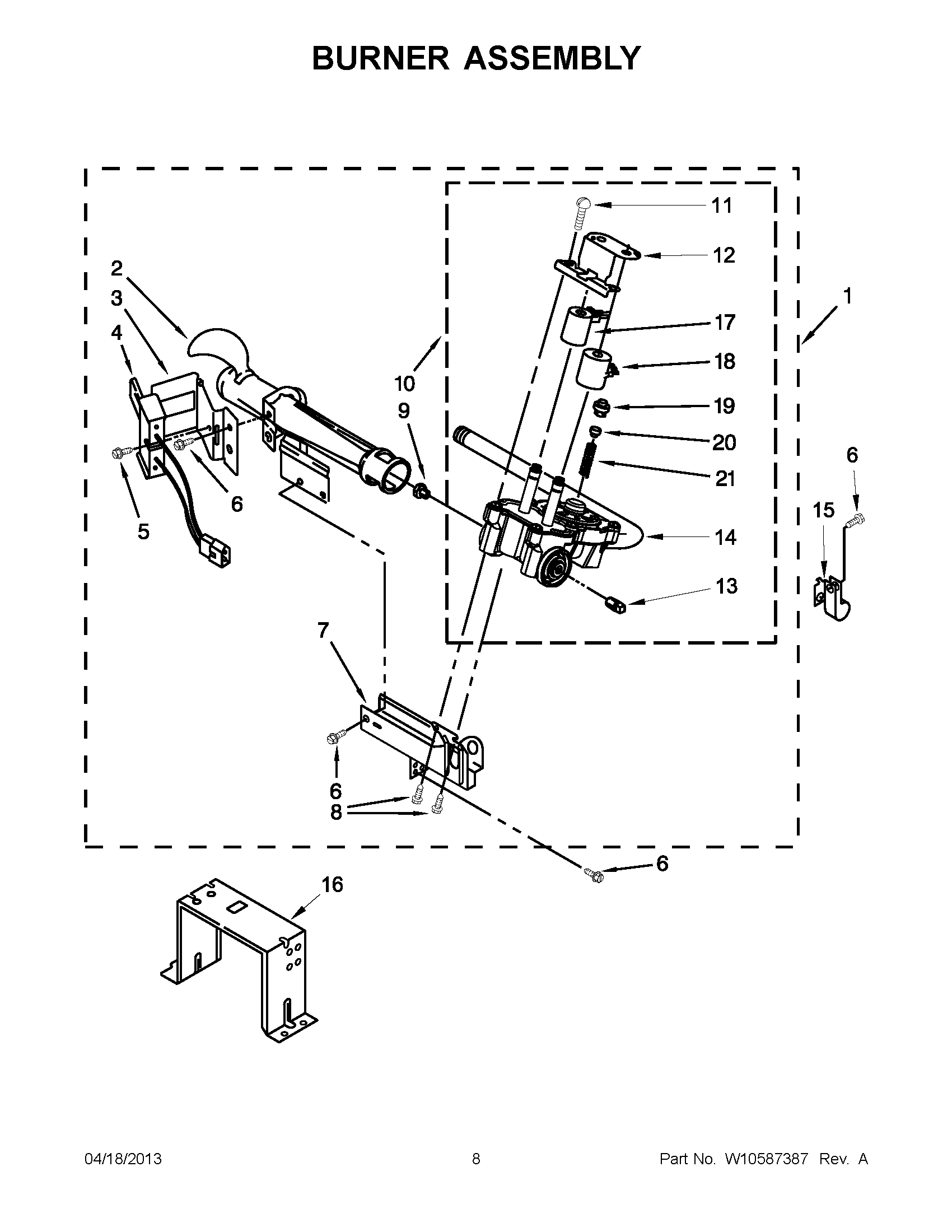

MDG17MNBGW3 04 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10233219
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10096909
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1)
9	MAY 234868
10	VALVE, GAS 50 HZ. (COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	MAY W10295523
14	MAY W10097610
15	MAY 3387561
16	MAY 3389889
17	COIL, 50 HZ. (2 TERMINAL) (MAIN)
18	MAY 695298
19	MAY 694424
20	MAY 694423
21	MAY 694422
