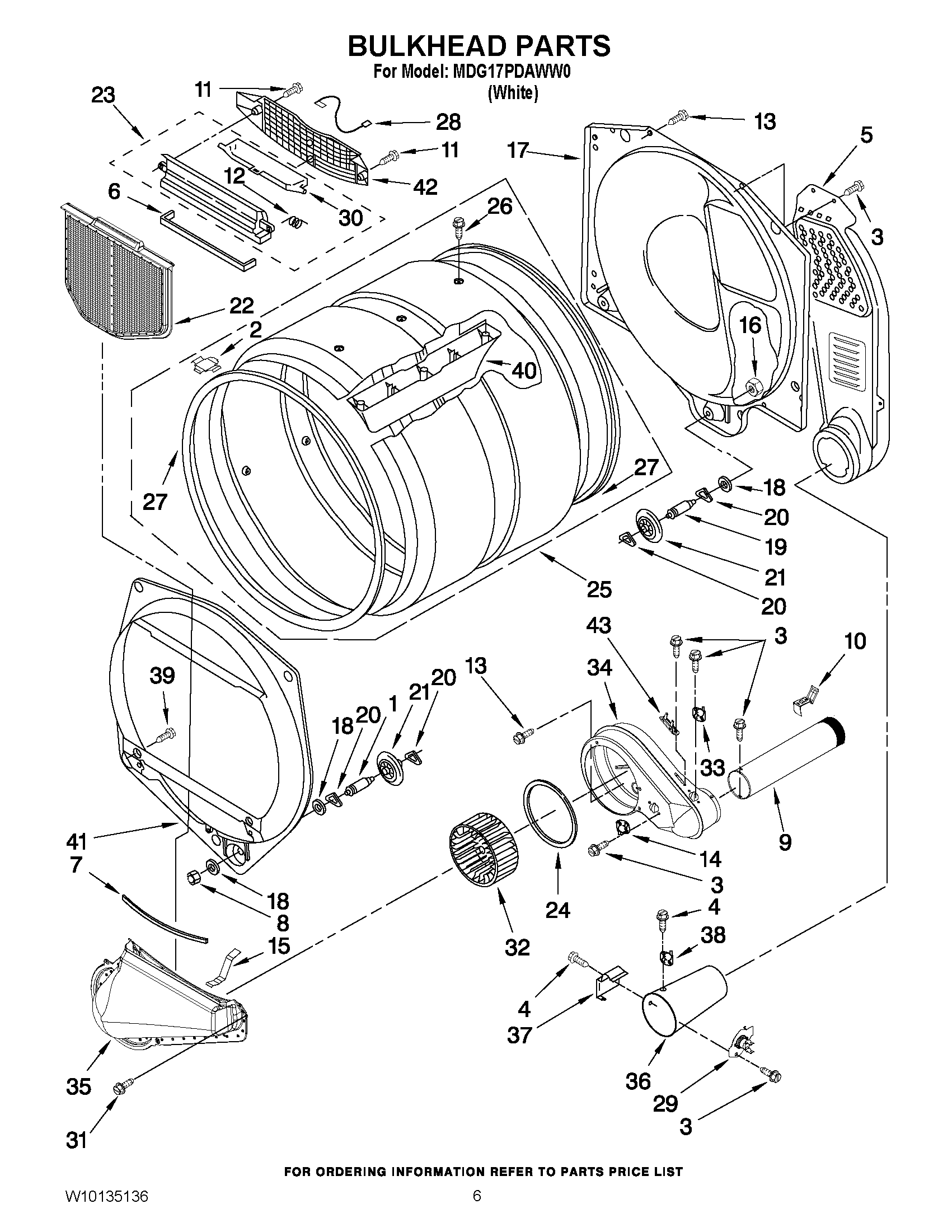

MDG17PDAWW0 03 – BULKHEAD PARTS

MDG17PDAWW0 03 – BULKHEAD PARTS

Written by

in

MDG17PDAWW0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	Plug, Drum Hole
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	Spring, Lint Screen Door
13	SCREW
14	THERMOSTAT
15	CLIP-SPRING
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY W10049370
23	Housing, Outlet
24	SEAL, PLATE COVER
25	Complete Drum Assembly
26	MAY W10109200
27	MAY W10166807
28	WIRE JUMPER
29	CUT-OFF, THERMAL
30	MAY 8563758
31	MAY 487909
32	MAY W10168564
33	THERMOSTAT 140Âº F ELECTRONIC
34	HOUSING, BLOWER
35	Lint Duct Assembly
36	MAY 8573824
37	MAY 338906
38	MAY 8573028
39	SCREW
40	BAFFLE, DRUM
41	BULKHEAD, FRONT
42	MAY 8563756
43	Fuse, Thermal (91 C)
