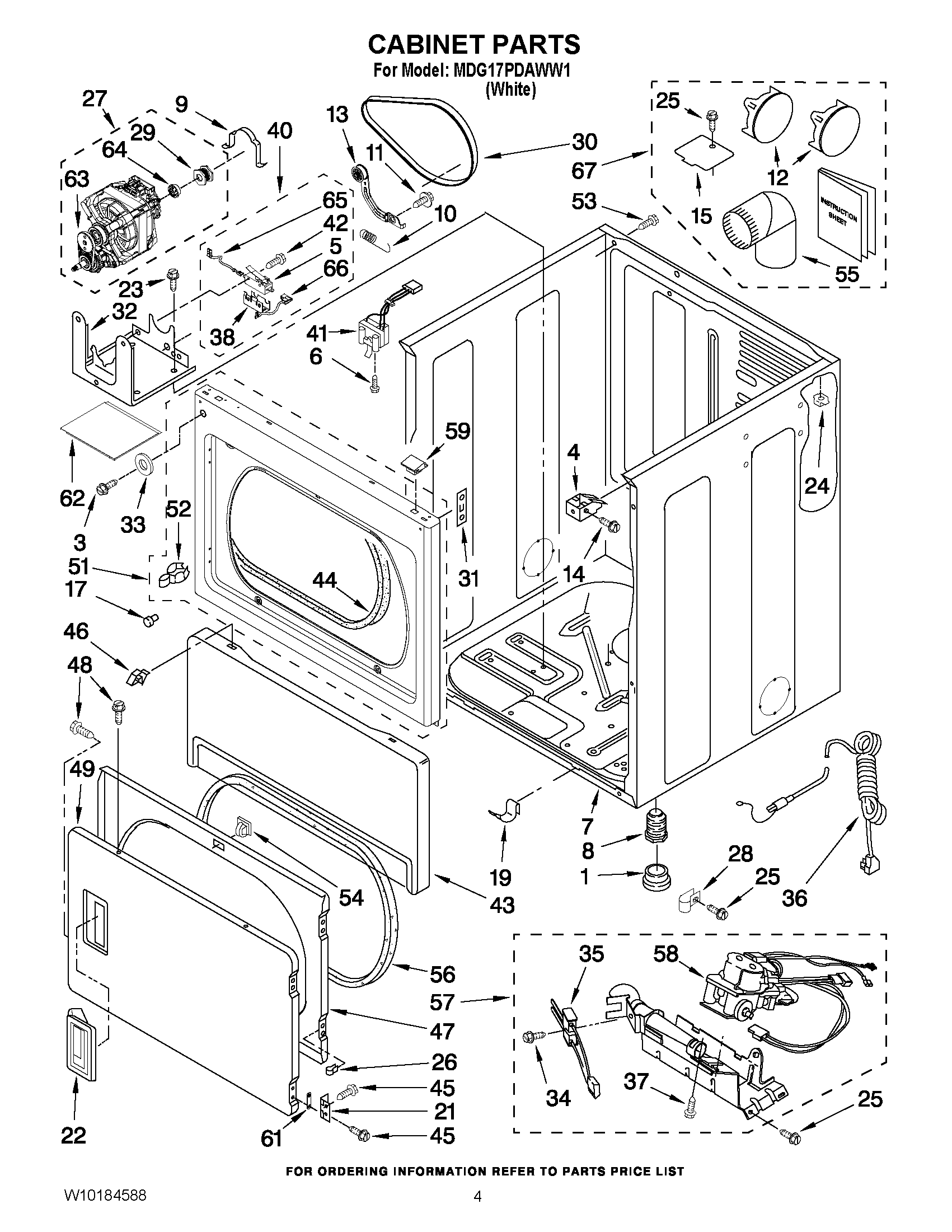

MDG17PDAWW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	MAY 279818
1	BOOT, FOOT
3	SCREW
4	CLIP, FRONT PANEL
5	Switch, Broken Belt
6	SCREW
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, IDLER
14	SCREW
15	MAY 3394331
17	BUMPER
19	Clip (2)
21	Hinge & Pin Assembly (2)
22	Handle, Door (White)
23	SCREW
24	NUT, CAGE
25	SCREW
26	Nut, Inner Door (4)
27	MOTOR ASSEMBLY 60 HZ.
28	MAY 3387561
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	WASHER
34	MAY 3393909
35	MAY 686590
36	MAY 3401401
37	SCREW
38	MAY 8564011
40	MAY W10155571
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY 3392563
48	MAY 694091
49	MAY 3387872
51	PANEL, FRONT (WHITE)
52	MAY 696144
53	MAY 8533974
54	MAY 3392538
55	MAY 279731
56	MAY 3390735
57	MAY W10135231
58	VALVE, GAS (60 HZ -COMPLETE)
59	LOCK TOP
61	PLUG, HINGE SCREW
62	DAPENING PANEL
63	MAY 3405160
64	MAY 3393657
65	Wire, Belt (To Protector)
66	MAY 8539892
