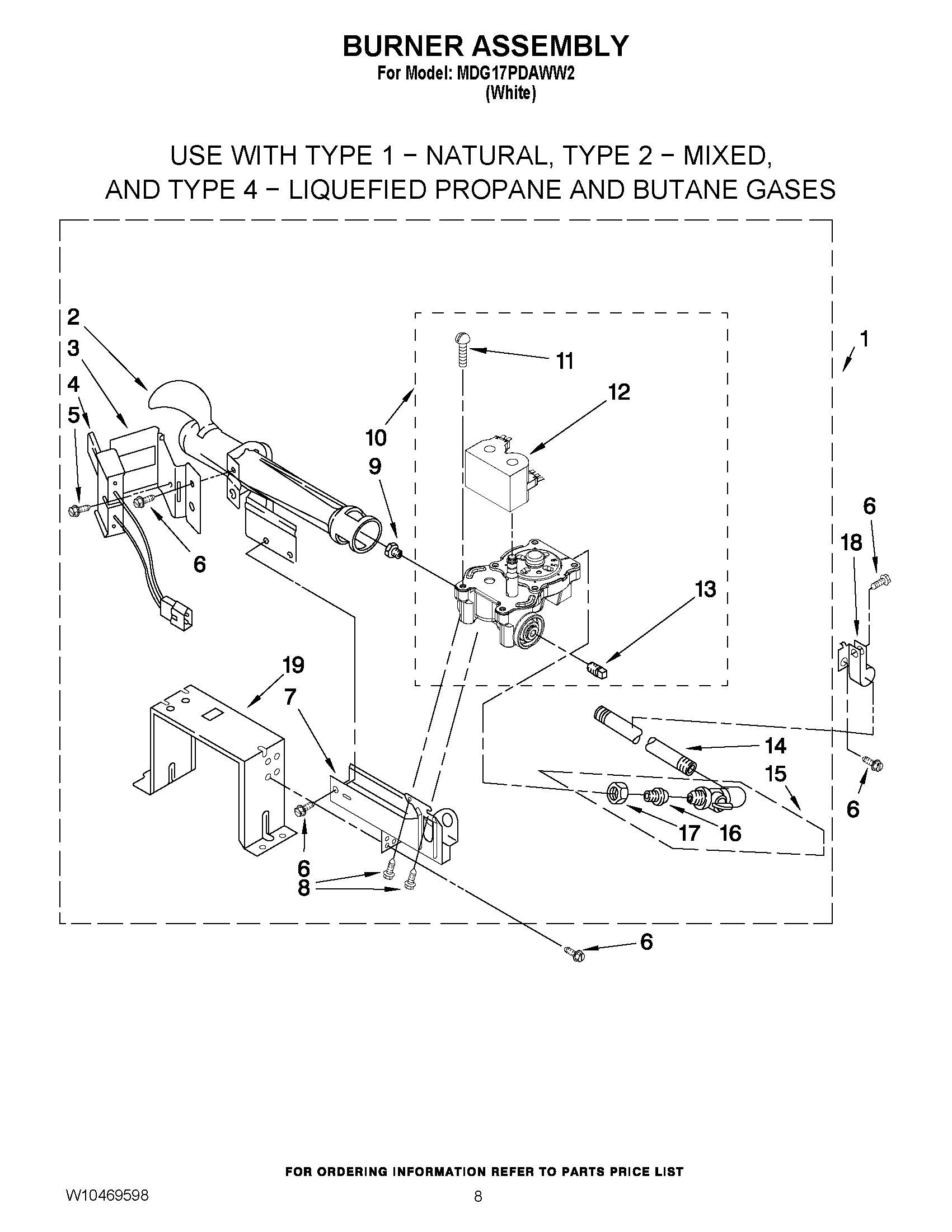

MDG17PDAWW2 04 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10436933RE
1	BURNER ASSEMBLY 60 HZ. (TYPE 1, 2 & 3) (COPRECI)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	MAY 234868
9	Orifice, Burner (Type 1)
10	VALVE GAS 60 HZ. (COMPLETE)
11	MAY 326049536
12	MAY W10328463
13	MAY W10295523
14	MAY W10110395
15	Valve & Union Shut-Off
16	MAY 3393767
17	MAY 233076
18	MAY 3387561
19	MAY 3389889
