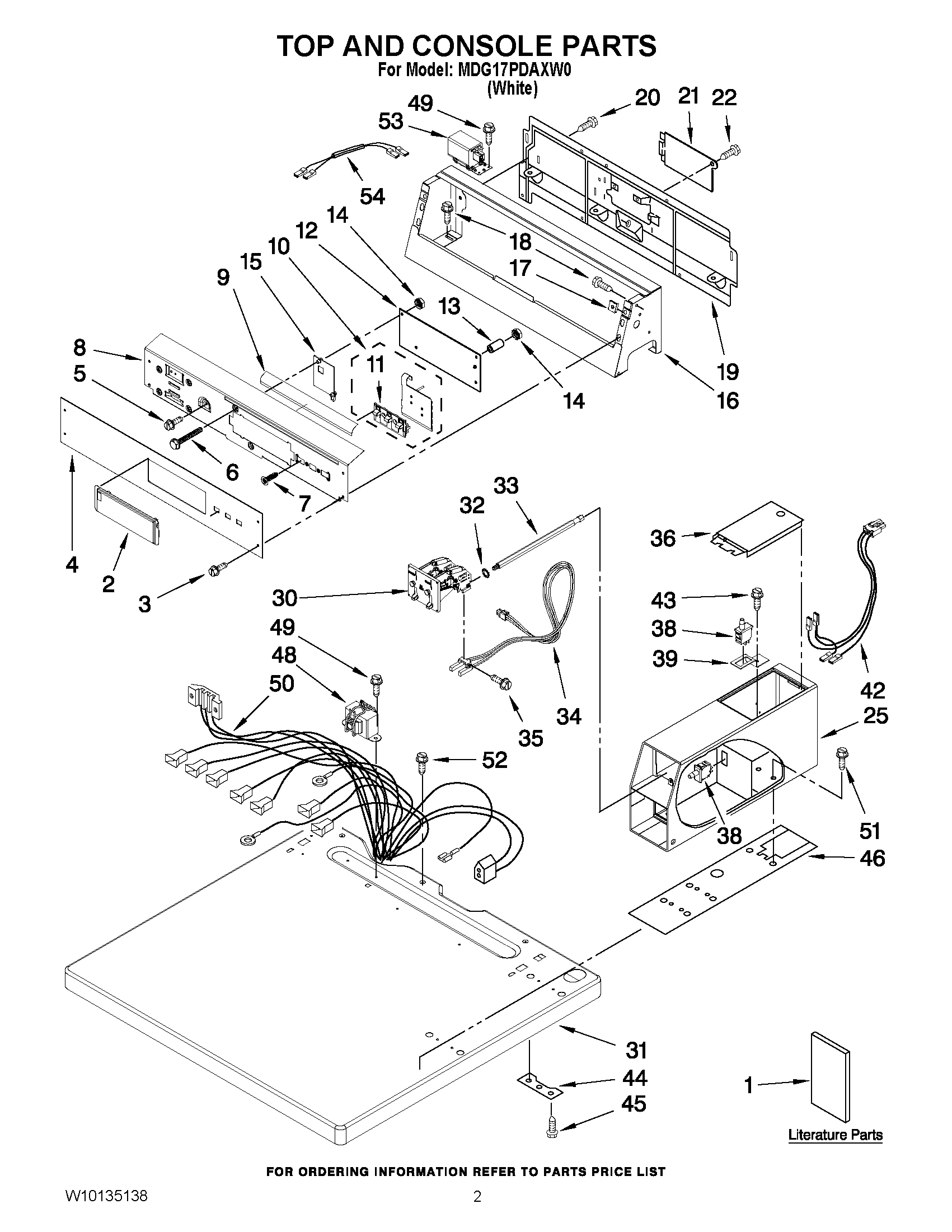

MDG17PDAXW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10135138
1	MAY W10135134
1	MAY W10135150
2	Cover, Display
3	MAY W10131119
4	MAY W10135181
5	SCREW
6	SCREW
7	MAY W10140652
8	MAY W10124214
9	MAY W10133515
10	MAY W10135233
11	BUTTON, PUSH
12	MAY W10130081
13	STANDOFF, CIRCUIT BOARD
14	NUT
15	MAY W10161476
16	MAY W10137299
17	NUT, "U"
19	MAY W10177313
20	SCREW
21	MAY 8317340
22	Screw, 8-18 x 3/8
25	MAY W10136645
30	Coin Drop Assy.
31	TOP (WHITE MDE20PDAGW0)
32	Washer
33	MAY W10137319
34	Coin Optic Sensor Assembly
35	SCREW
36	ASSEMBLY, SERVICE DOOR
38	MAY W10131838
39	MAY W10133508
42	MAY W10139456
43	MAY W10139210
44	MAY 3347825
45	SCREW
46	CUSHION, METER CASE
48	MAY W10131839
49	MAY 8533971
50	MAY W10130190
51	BOLT
52	SCREW
53	RFI-Filter
54	MAY W10175650
