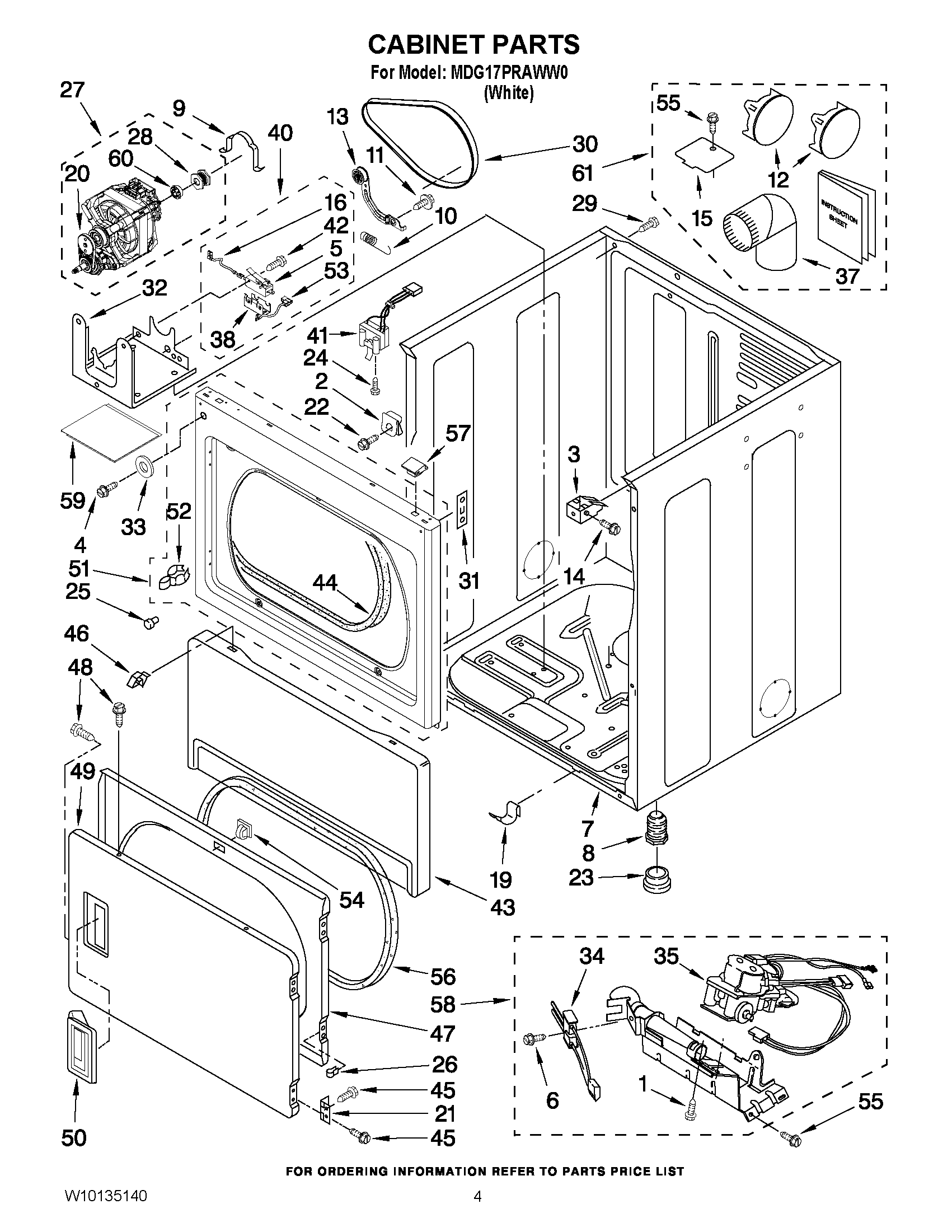

MDG17PRAWW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	MAY 279818
1	SCREW
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	Switch, Broken Belt
6	MAY 3393909
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, IDLER
14	SCREW
15	MAY 3394331
16	Wire, Belt (To Protector)
19	Clip (2)
20	MAY 3405160
21	Hinge & Pin Assembly (2)
22	MAY W10131119
23	BOOT, FOOT
24	SCREW
25	BUMPER
26	Nut, Inner Door (4)
27	MOTOR ASSEMBLY 60 HZ.
28	PULLEY, MOTOR
29	MAY 8533974
30	BELT, DRIVE
31	MAY 3390902
32	MAY W10135695
33	WASHER
34	MAY 686590
35	VALVE, GAS (60 HZ -COMPLETE)
37	MAY 279731
38	MAY 8564011
40	MAY W10155571
41	MAY 3406109
42	Bolt, 6-20 x 1 1/4
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY 3392563
48	MAY 694091
49	MAY 3387872
50	Handle, Door (White)
51	Front Panel
52	MAY 696144
53	MAY 8539892
54	MAY 3392538
55	SCREW
56	MAY 3390735
57	LOCK TOP
58	MAY W10135231
59	DAPENING PANEL
60	MAY 3393657
