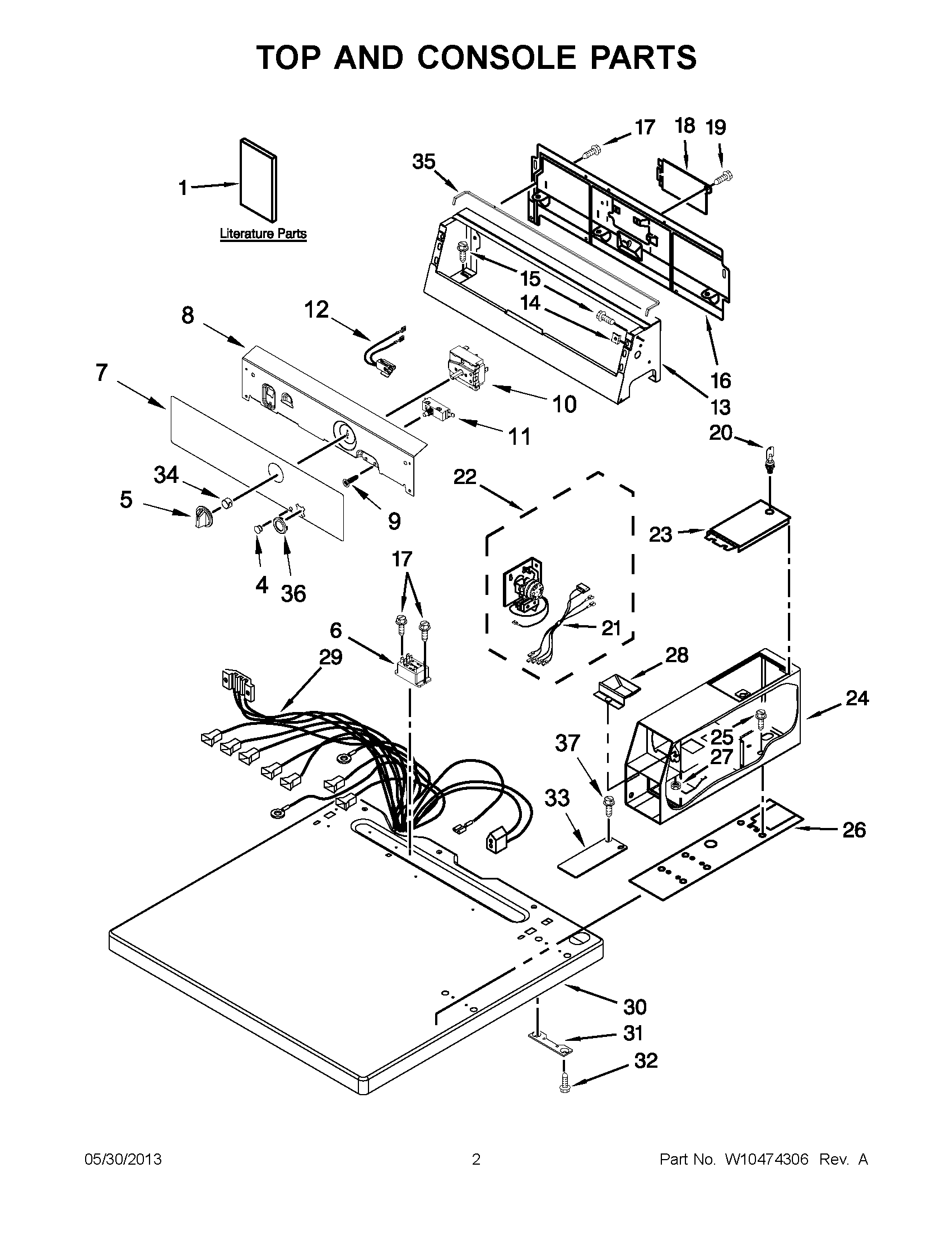

MDG18CSAGW0 01 – TOP AND CONSOLE PARTS

MDG18CSAGW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDG18CSAGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10396190
1	MAY W10474275
4	INDICATOR LIGHTS ASSEMBLY
5	KNOB
6	RELAY, HEATER 230V
7	MAY W10506024
8	MAY W10461070
9	SCREW
10	SWITCH, CYCLE SELECTION
11	MAY W10488054
12	LAMP, INDICATOR
13	CONSOLE MDE20PDAGW0
14	NUT, "U"
15	MAY W10139210
16	MAY W10135273
17	SCREW
18	MAY W10096918
19	SCREW
20	ASSEMBLY, CAM & SECURITY LOCK
21	MAY W10111030
22	MAY W10135271
23	ASSEMBLY, SERVICE DOOR
24	MAY W10529172
25	BOLT
26	CUSHION, METER CASE
27	MAY W10139060
28	MAY W10133509
29	MAY W10386331
30	TOP (WHITE MDE20PDAGW0)
31	MAY 3347825
32	SCREW
33	MAY W10153513
34	MAY W10140928
35	Foam Seal
36	BEZEL – PTS
37	SCREW
