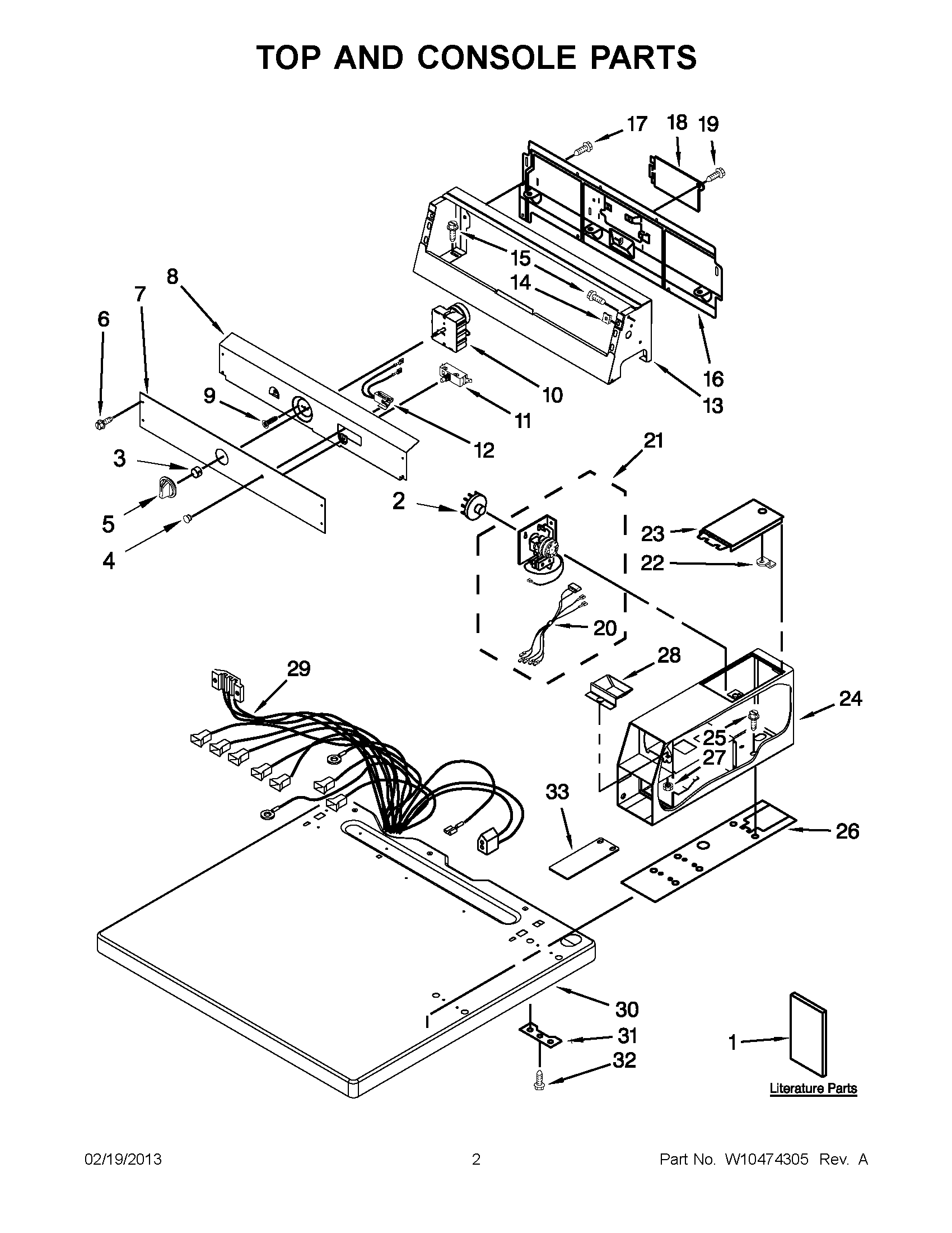

MDG18CSAWW0 01 – TOP AND CONSOLE PARTS

MDG18CSAWW0 01 – TOP AND CONSOLE PARTS

Written by

in

MDG18CSAWW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10167622
1MAY W10474273
2Timing Cam (Cam – 3 Pin)
2Timing Cam (Cam – 6 Pin)
3MAY W10140928
4INDICATOR LIGHTS ASSEMBLY
5KNOB
6SCREW
7MAY W10461109
8MAY W10461070
9SCREW
10SWITCH, CYCLE SELECTION
11MAY W10488054
12Lamp-Indicator 120 V.
13CONSOLE MDE20PDAGW0
14NUT, "U"
15MAY W10139210
16MAY 3978608
17SCREW
18MAY 8317340
19MAY 303776
20MAY W10177793
21Timer 7 Harness Assembly
22MAY W10156125
23ASSEMBLY, SERVICE DOOR
24MAY W10529172
25BOLT
26CUSHION, METER CASE
27MAY W10139060
28MAY W10133509
29MAY W10153108
30TOP (WHITE MDE20PDAGW0)
31MAY 3347825
32SCREW
33MAY W10153513
