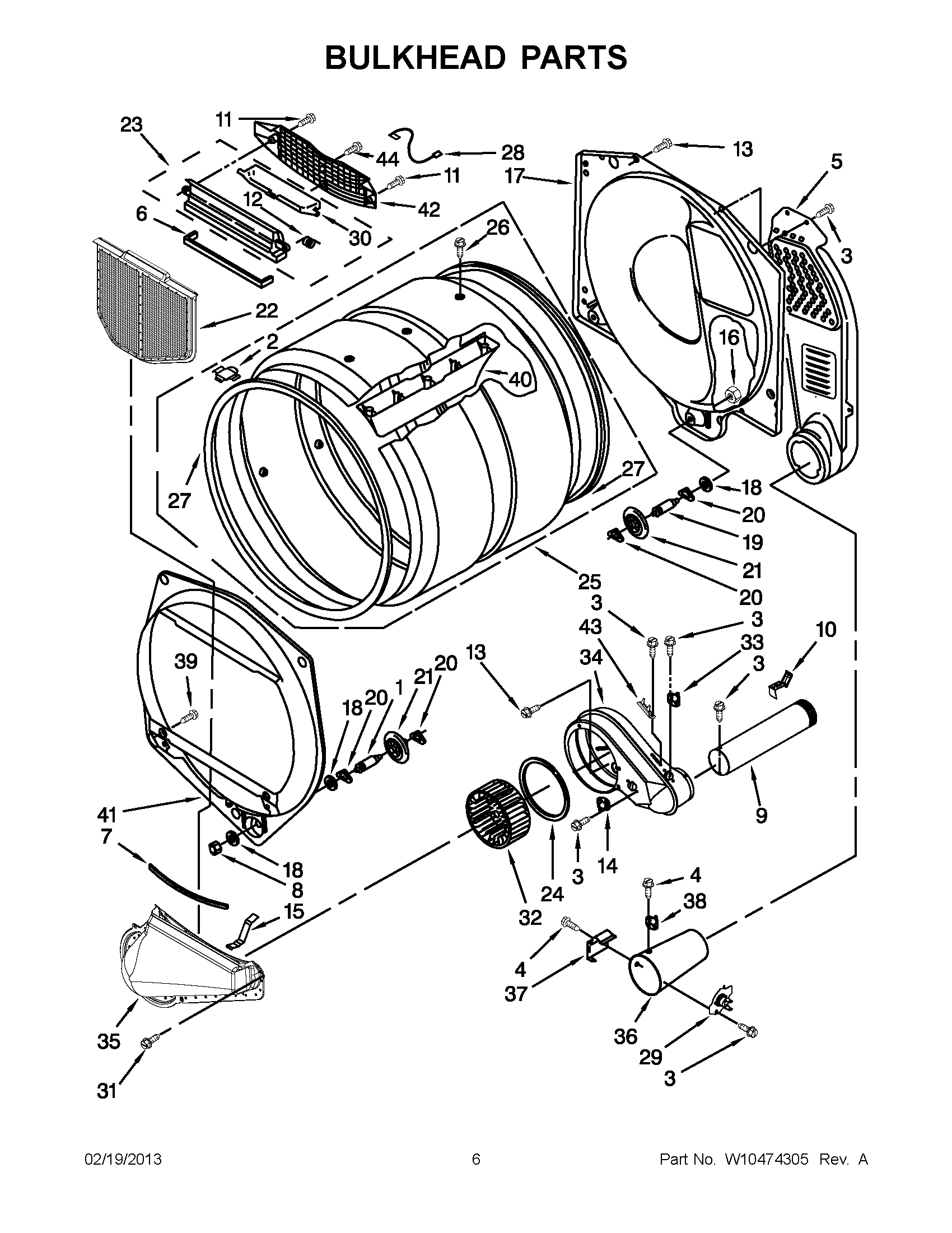

MDG18CSAWW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	Plug, Drum Hole
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	Spring, Lint Screen Door
13	Screw
14	THERMOSTAT
15	CLIP, SPRING
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER - LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10049370
23	OUTLET HOUSING ASSEMBLY
24	SEAL, PLATE COVER
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	WIRE JUMPER
29	CUT-OFF, THERMAL
30	MAY W10181925
31	SCREW
32	MAY W10349492
33	THERMOSTAT
34	HOUSING, BLOWER
35	Lint Duct Assembly
36	MAY 8573824
37	MAY 338906
38	THERMOSTAT, HI LIMIT
39	SCREW
40	BAFFLE, DRUM
41	BULKHEAD, FRONT
42	MAY W10181926
43	Fuse, Thermal (91 C)
44	Screw, 8-18 x 1/2
