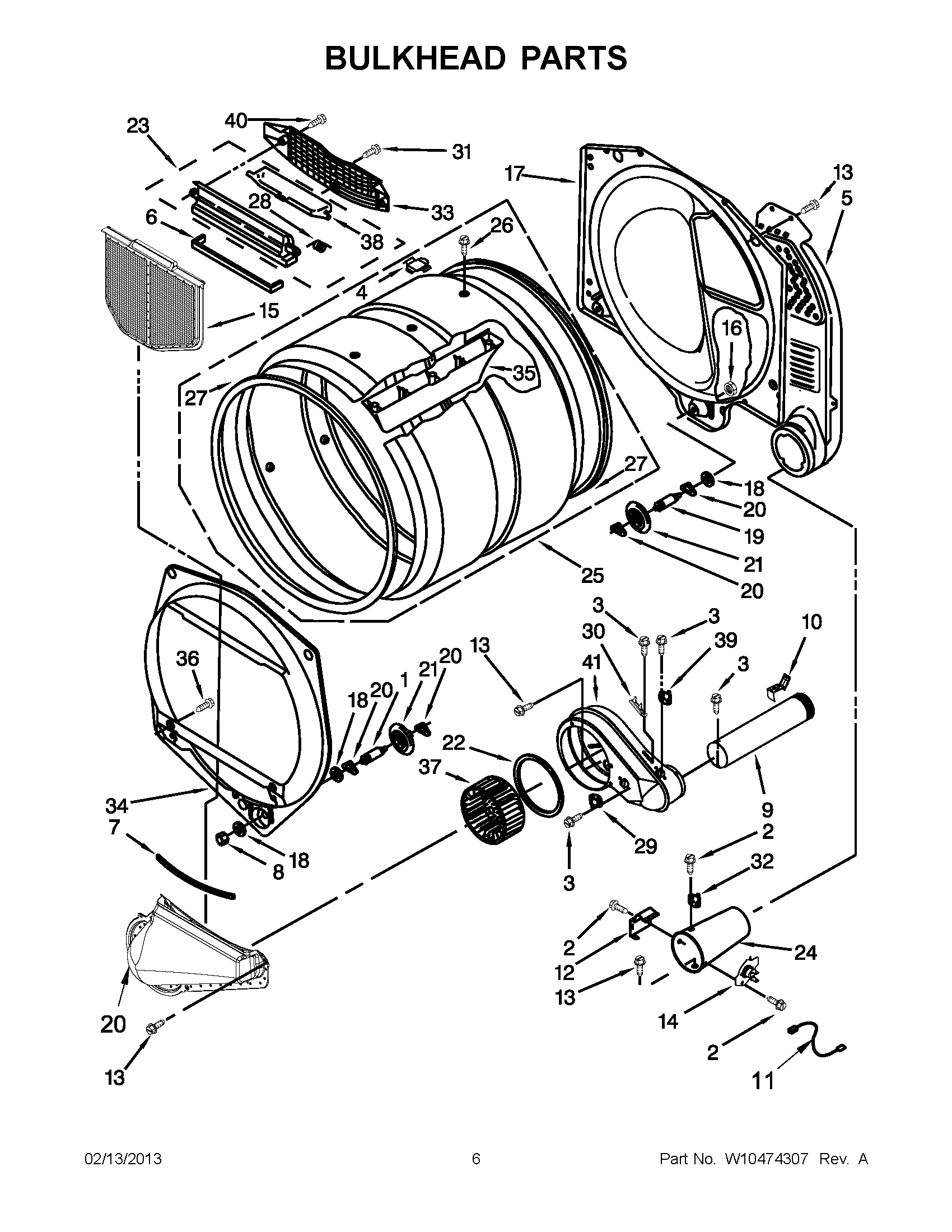

MDG18MNAWW0 03 – BULKHEAD PARTSadmin2025-04-26T10:14:08+00:00MDG18MNAWW0 03 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | Screw |
| 3 | MAY 8533971 |
| 4 | Plug, Drum Hole |
| 5 | MAY 3394346 |
| 6 | MAY 697813 |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | PIPE, EXHAUST |
| 10 | CLIP, EXHAUST |
| 11 | WIRE JUMPER |
| 12 | MAY 338906 |
| 13 | SCREW |
| 14 | CUT-OFF, THERMAL |
| 15 | MAY W10049370 |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY 3387809 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | Lint Duct Assembly |
| 21 | ROLLER, SUPPORT |
| 22 | SEAL, PLATE COVER |
| 23 | Housing, Outlet |
| 24 | MAY 8573824 |
| 25 | Complete Drum Assembly |
| 26 | MAY W10219342 |
| 27 | MAY W10166807 |
| 28 | Spring, Lint Screen Door |
| 29 | THERMOSTAT |
| 30 | Fuse, Thermal (91 C) |
| 31 | Screw, 8-18 x 1/2 |
| 32 | THERMOSTAT, HI LIMIT |
| 33 | MAY 8563756 |
| 34 | BULKHEAD, FRONT |
| 35 | BAFFLE, DRUM |
| 36 | SCREW |
| 37 | MAY W10349492 |
| 38 | MAY 8563758 |
| 39 | THERMOSTAT |
| 40 | SCREW |
| 41 | HOUSING, BLOWER |
