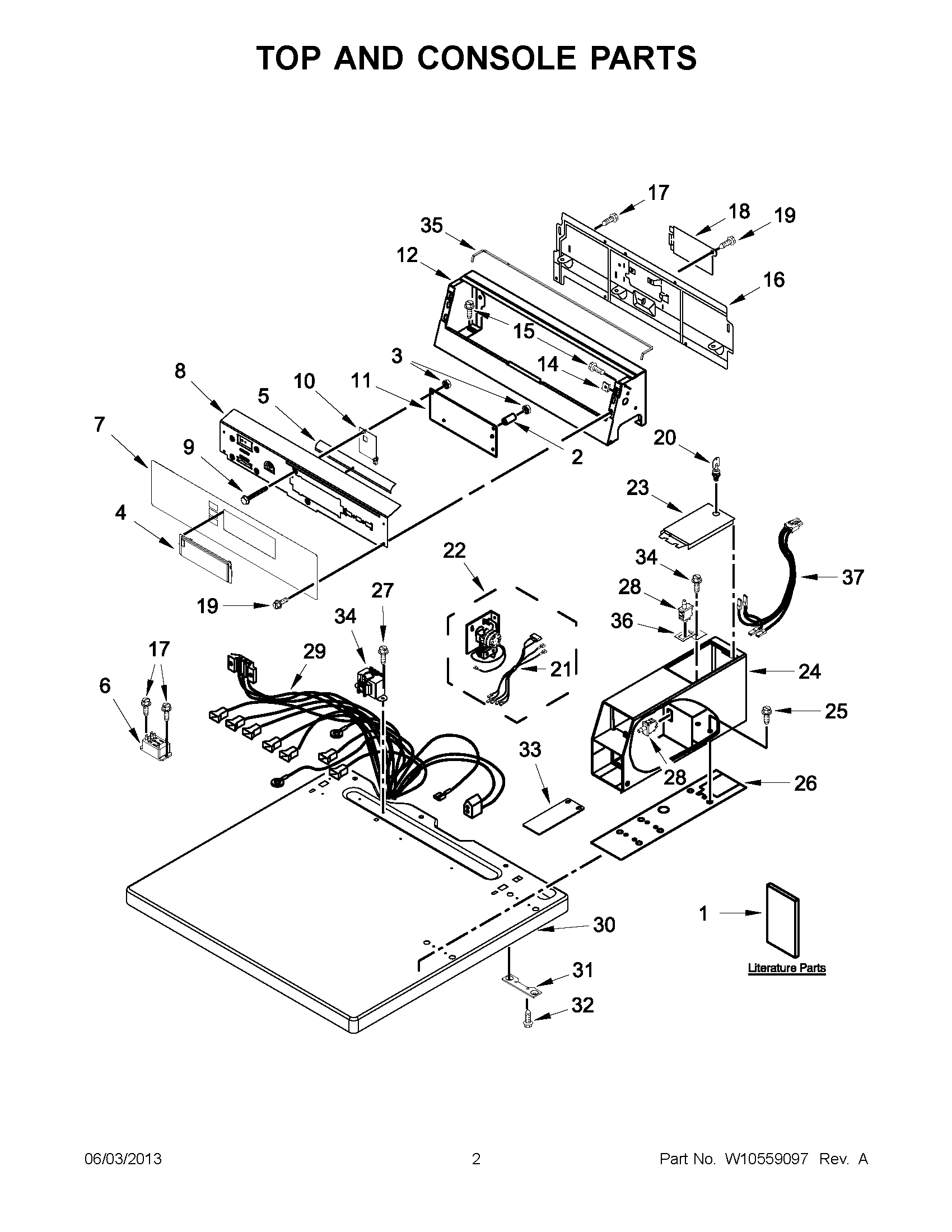

MDG18PDAGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10396191
1	MAY W10474275
2	STANDOFF, CIRCUIT BOARD
3	NUT
4	COVER, DISPLAY
5	MAY W10133515
6	RELAY, HEATER 230V
7	MAY W10461123
8	MAY W10461121
9	SCREW
10	MAY W10161476
11	MAY W10471563
12	CONSOLE MDE20PDAGW0
14	NUT, "U"
15	MAY W10139210
16	MAY W10135273
17	SCREW
18	MAY W10096918
19	SCREW
20	ASSEMBLY, CAM & SECURITY LOCK
21	MAY W10111030
22	MAY W10135271
23	ASSEMBLY, SERVICE DOOR
24	METER CASE
25	BOLT
26	CUSHION, METER CASE
27	MAY 8533971
28	SWITCH, VAULT SERVICE DOOR
29	MAY W10386331
30	TOP (WHITE MDE20PDAGW0)
31	MAY 3347825
32	SCREW
33	MAY W10153513
34	MAY W10277669
35	Foam Seal
36	MAY W10133508
37	MAY W10211244
