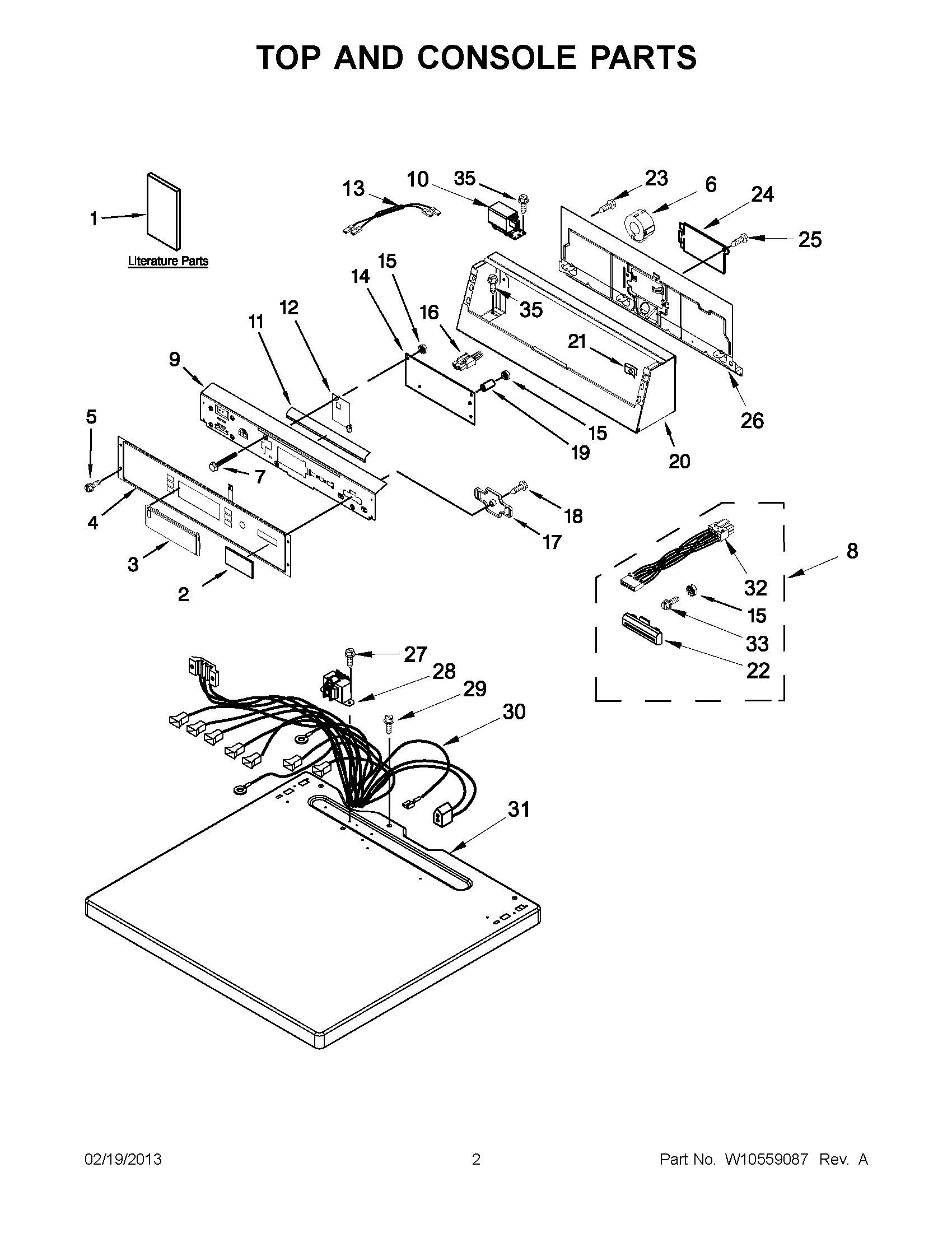

MDG18PRAWW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10143804
1	MAY W10474273
1	MAY W10183571
1	INSTALLATION INSTRUCTIONS CR
2	COVER, CARD READER
3	COVER, DISPLAY
4	MAY W10461112
5	SCREW
6	CHOKE, HARNESS
7	SCREW
8	CARD READER, CONVERSION KIT
9	MAY W10461122
10	FILTER, RFI
11	MAY W10133515
12	MAY W10161476
13	MAY W10175650
14	MAY W10471563
15	NUT
16	JUMPER, SWITCH SERVICE/VAULT
17	RETAINER, CARD READER COVER
18	MAY 3400618
19	STANDOFF, CIRCUIT BOARD
20	CONSOLE
21	NUT, "U"
22	BEZEL
23	SCREW
24	MAY 8317340
25	Screw, 8-32 x 1/32
26	MAY W10177312
27	MAY 8533971
28	MAY W10131839
29	SCREW
30	MAY W10130190
31	TOP (WHITE)
32	CARD READER, HARNESS
33	SCREW
