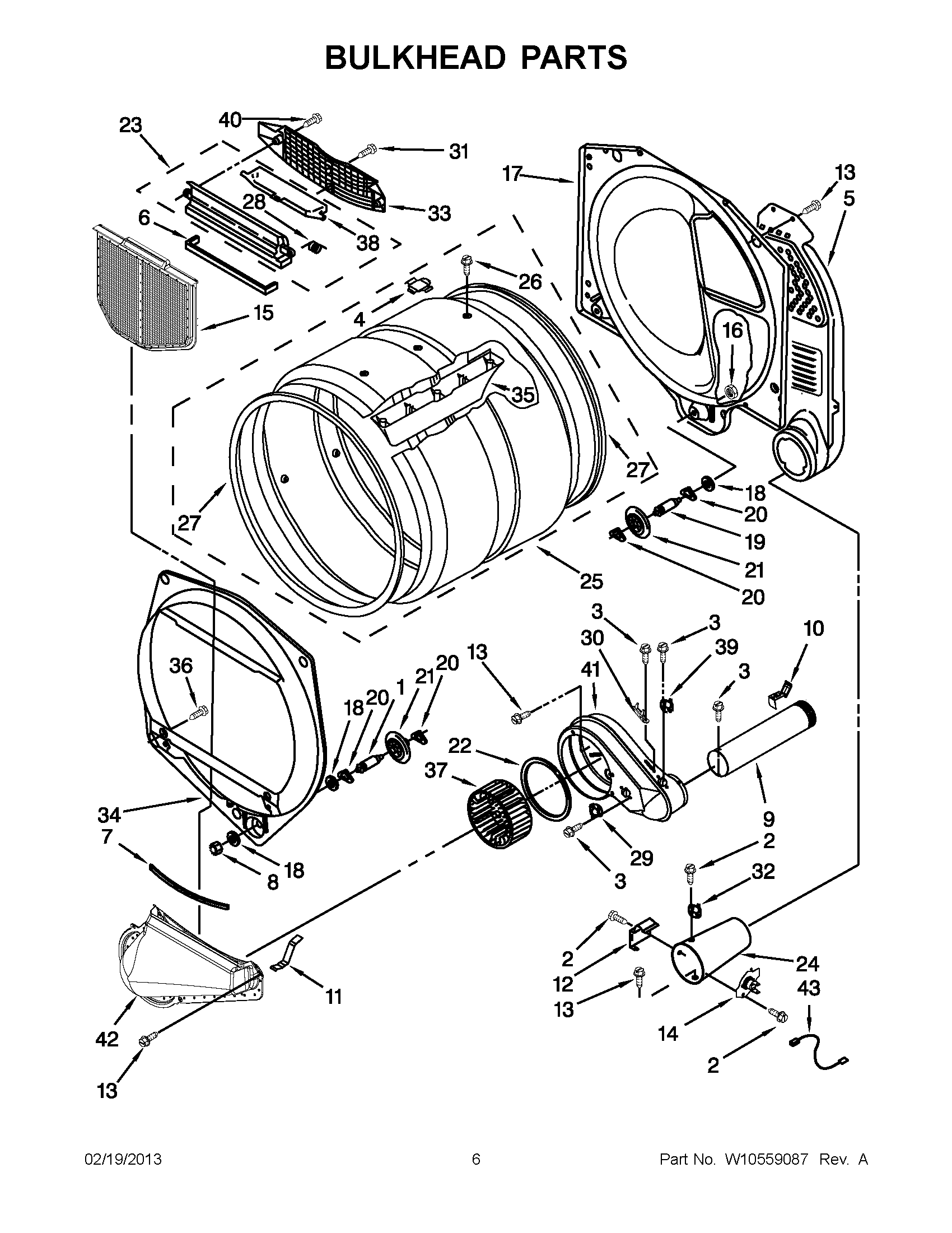

MDG18PRAWW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	MAY 8533971
4	Plug, Drum Hole
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	CLIP, SPRING
12	MAY 338906
13	SCREW
14	CUT-OFF, THERMAL
15	MAY W10049370
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SEAL, PLATE COVER
23	OUTLET HOUSING ASSEMBLY
24	MAY 8573824
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	Spring, Lint Screen Door
29	THERMOSTAT
30	Fuse, Thermal (91 C)
31	MAY 359625
32	THERMOSTAT, HI LIMIT
33	MAY W10181926
34	BULKHEAD, FRONT
35	BAFFLE, DRUM
36	SCREW
37	MAY W10349492
38	MAY W10181925
39	THERMOSTAT 155Â° F (ELECTRONIC)
40	SCREW
41	HOUSING, BLOWER
42	Lint Duct Assembly
43	WIRE JUMPER
