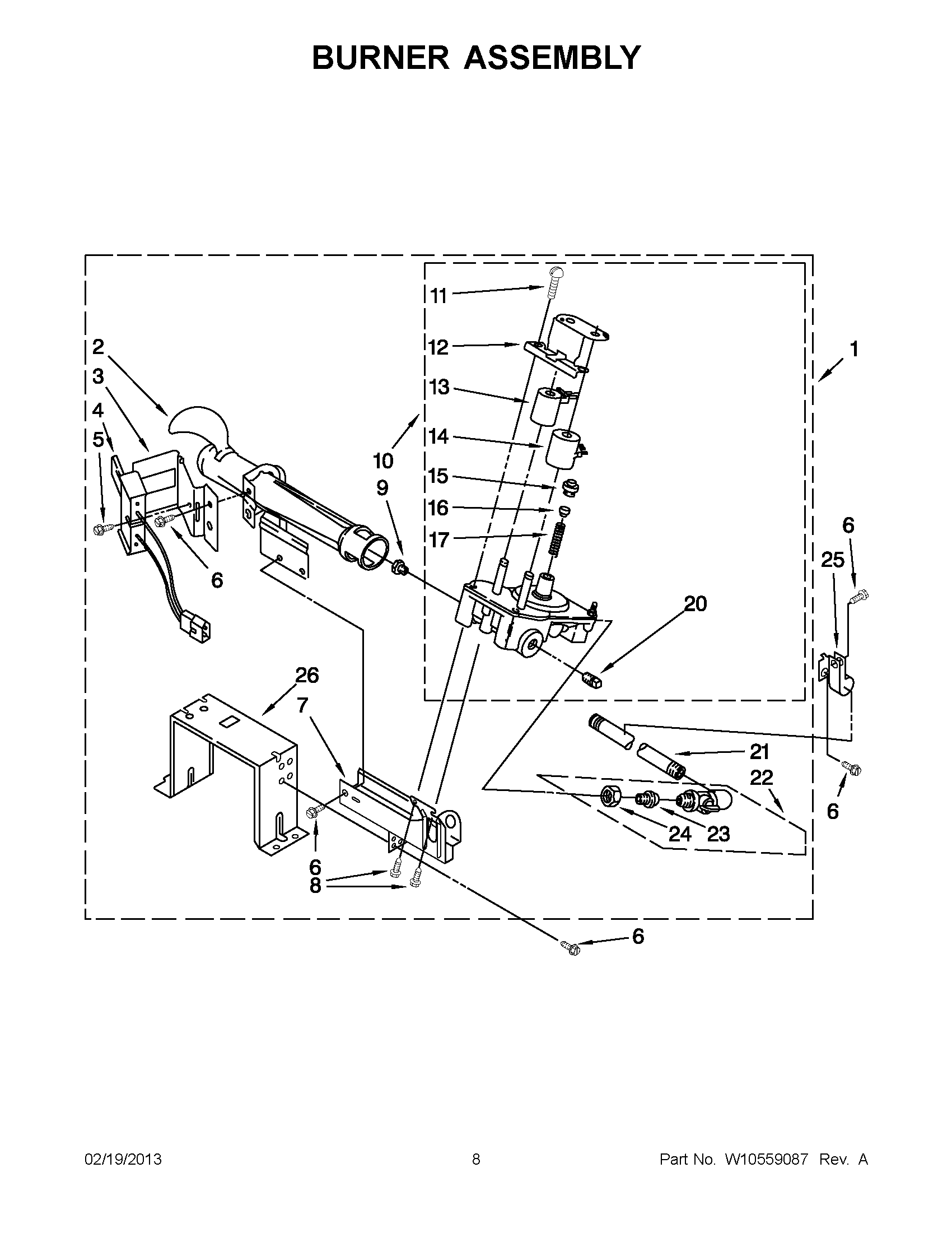

MDG18PRAWW0 04 – BURNER ASSEMBLY

Products

Position	Product
NI	MAY W10436933
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10135231
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	MAY 234868
9	Orifice, Burner (Type 1)
10	VALVE, GAS (60 HZ -COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
20	MAY 239822
21	MAY W10110395
22	Valve & Union Shut-Off
23	MAY 3393767
24	MAY 233076
25	MAY 3387561
26	MAY 3389889
