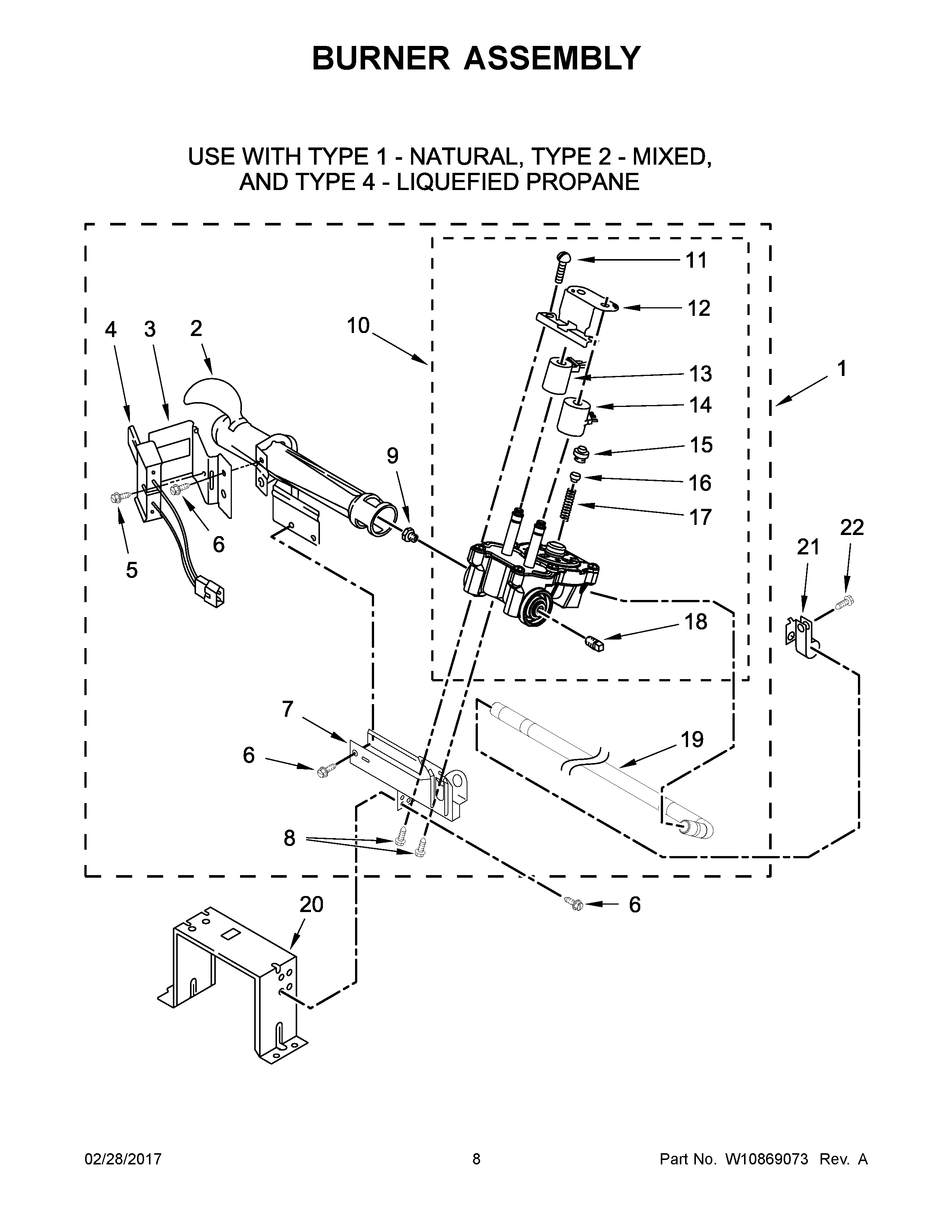

MDG20CSAGW0 05 – BURNER ASSEMBLY

Products

Position	Product
NI	LP CONVERSION KIT (AUS TYPE 4)
NI	LP CONVERSION KIT (FR/BE NAT GAS)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10233219
1	MAY W10096909
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1)
10	VALVE, GAS 50 HZ. (COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	COIL, 50 HZ. (2 TERMINAL) (MAIN)
14	MAY 695298
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	MAY W10295523
19	MAY W10097610
20	MAY 3389889
21	MAY 3978776
22	SCREW
