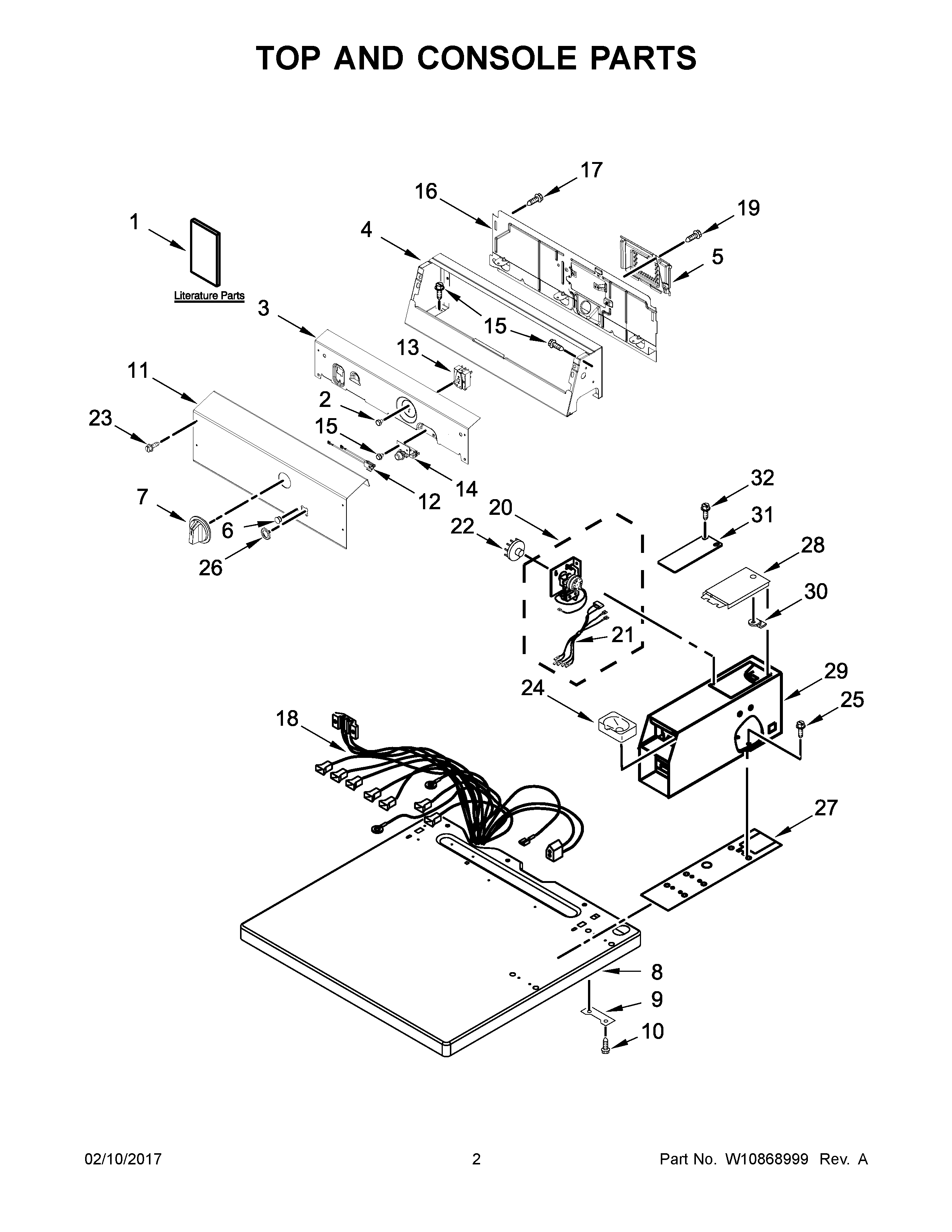

MDG20CSAWW0 02 – TOP AND CONSOLE PARTS

MDG20CSAWW0 02 – TOP AND CONSOLE PARTS

Written by

in

MDG20CSAWW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10167622
1	MAY W10868655
2	SCREW
3	MAY W10461070
4	CONSOLE MDE20PDAGW0
5	MAY 8317339
6	INDICATOR LIGHTS ASSEMBLY
7	KNOB
8	TOP (WHITE MDE20PDAGW0)
9	MAY 3347825
10	SCREW
11	MAY W10845278
12	LAMP, INDICATOR
13	SWITCH, CYCLE SELECTION
14	SWITCH, PUSH TO START
15	MAY 8533971
16	PANEL, REAR (CONSOLE)
17	SCREW
18	MAY W10153108
19	Screw, 8-32 x 1/32
20	Timer 7 Harness Assembly
21	MAY W10177793
22A	Timing Cam (Cam – 6 Pin)
22	Timing Cam (Cam – 3 Pin)
23	SCREW
24	MAY W10133509
25	BOLT
26	BEZEL – PTS
27	CUSHION, METER CASE
28	ASSEMBLY, SERVICE DOOR
29	MAY W10529172
30	MAY W10156125
31	MAY W10153513
32	SCREW
