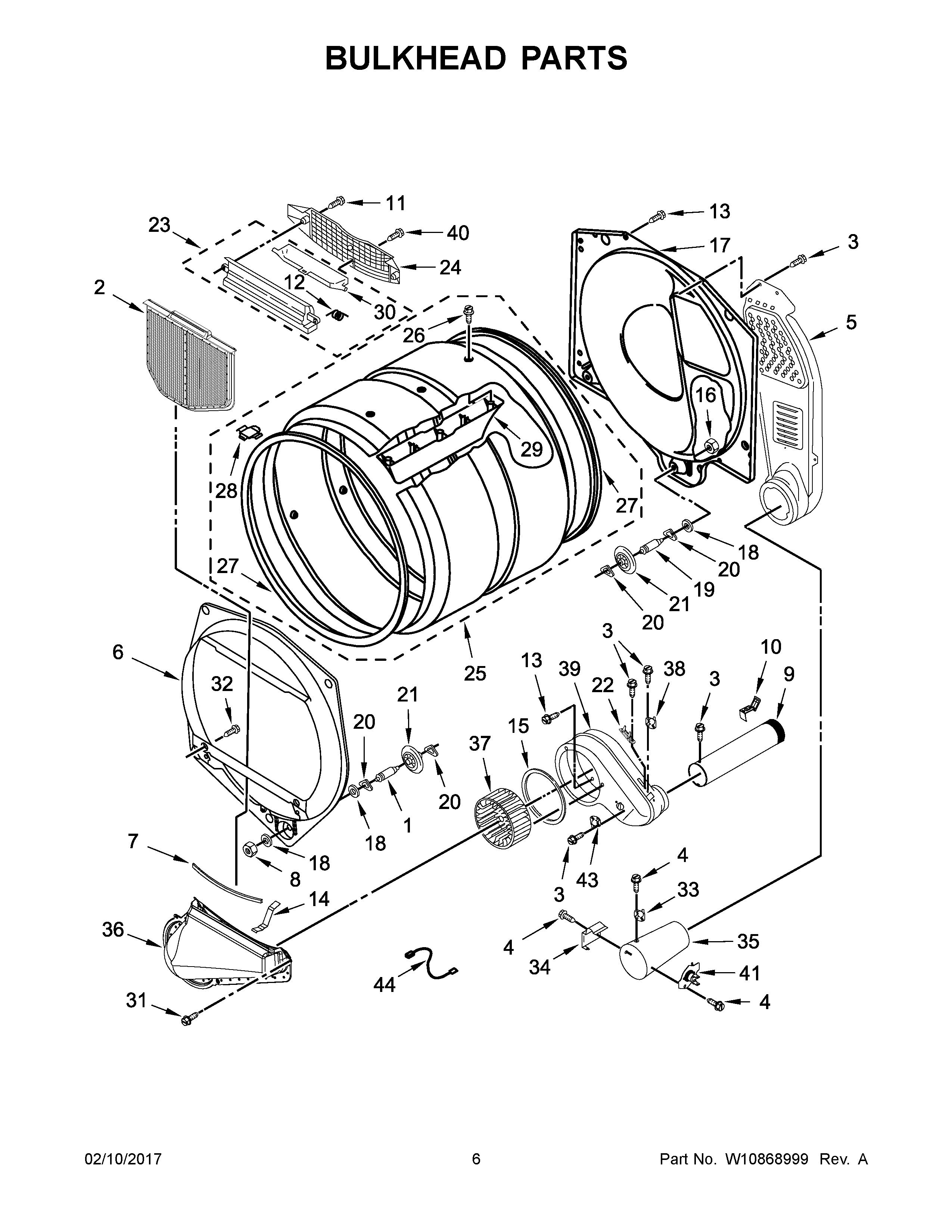

MDG20CSAWW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	LINT SCREEN (WHITE)
3	MAY 8533971
4	SCREW,8-18 X 3/8
5	MAY 3394346
6	Plug, Drum Hole
7	MAY 697814
8	NUT, HEX
9	PIPE, EXHAUST
10	CLIP, EXHAUST
11	SCREW
12	Spring, Lint Screen Door
13	SCREW
14	CLIP, SPRING
15	SEAL, PLATE COVER
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	Fuse, Thermal (91 C)
23	ASSEMBLY, OUTLET HOUSING
24	GRILL, OUTLET
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	BULKHEAD, FRONT
29	BAFFLE, DRUM
30	MAY W10685668
31	Screw
32	SCREW
33	THERMOSTAT, HI LIMIT
34	MAY 338906
35	MAY 8573824
36	Lint Duct Assembly
37	MAY W10349492
38	THERMOSTAT
39	HOUSING, BLOWER
40	Screw, 8-18 x 1/2
41	CUT-OFF, THERMAL
42	Screw
43	THERMOSTAT
44	WIRE JUMPER
