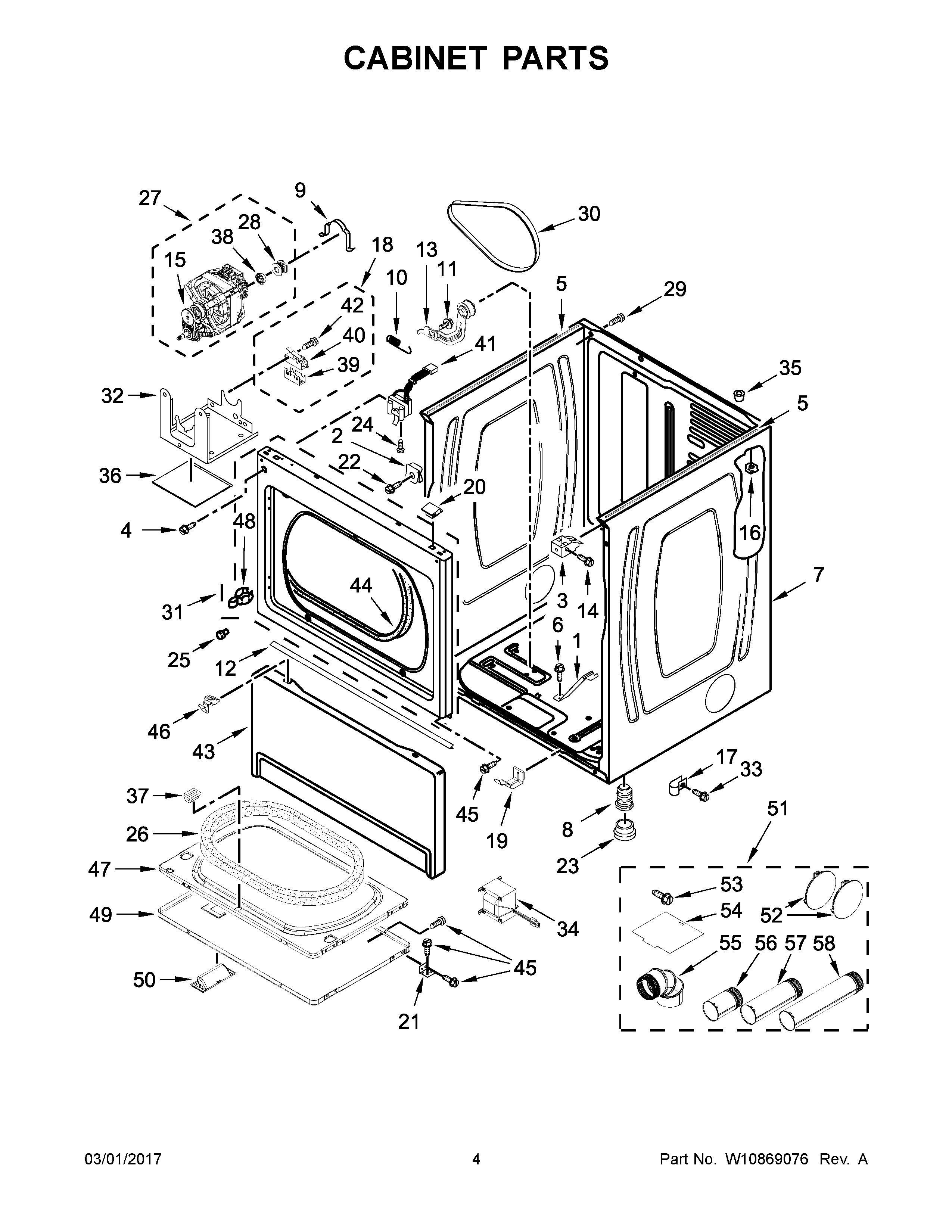

MDG20MNAGW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10181903
2	NUT, "U"
3	CLIP, FRONT PANEL
4	SCREW
5	SEAL-FOAM (IEC)
6	Screw
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY W10576519
13	MAY W10344192
14	SCREW
15	MAY 3405160
16	NUT, CAGE
17	MAY 3387561
18	ASSEMBLY, SWITCH
19	CLIP
20	LOCK TOP
21	ASSEMBLY, HINGE & PIN (SILVER)
23	BOOT, FOOT
24	SCREW
25	BUMPER
26	MAY 3390735
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10167237
29	SCREW
30	BELT, DRIVE
31	PANEL, FRONT
32	MAY W10135695
33	SCREW
34	MAY W10753690
35	CONE WEDGE
36	MOTOR, SOUND PAD
37	MAY 3392538
38	MAY 3393657
39	MAY 8564011
40	ASSEMBLY, SWITCH ACTUATOR
41	MAY W10237959
42	SCREW
43	Toe Panel (Includes Item. 2) (White)
44	MAY 3387242
45	MAY 342055
46	RETAINER
47	MAY W10323061
48	MAY 696144
49	DOOR, FRONT
50	Handle, Door (White)
51	MAY 279818
52	MAY 697750
53	MAY 488729
54	MAY 3394331
55	MAY 49026
56	MAY 8563750
57	PIPE, EXHAUST (MEDIUM)
58	PIPE, EXHAUST (LONG)
