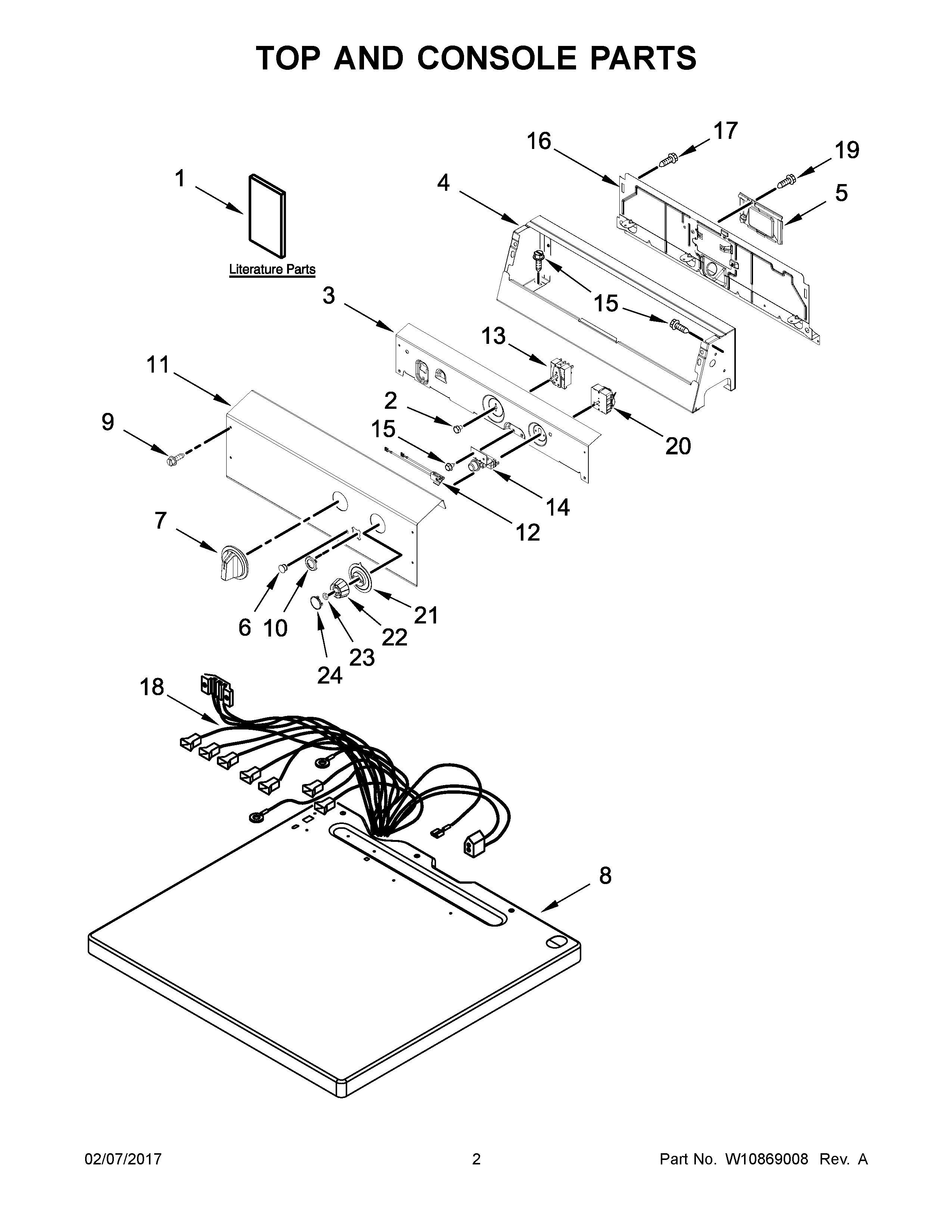

MDG20MNAWW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AWIRING DIAGRAM
1MAY W10868655
2SCREW
3BACK BRACKET, NON-COIN
4CONSOLE
5MAY 8317339
6INDICATOR LIGHTS ASSEMBLY
7KNOB
8TOP (WHITE)
9SCREW
10BEZEL – PTS
11MAY W10845280
12LAMP, INDICATOR
13SWITCH, CYCLE SELECTION
14SWITCH, PUSH TO START
15MAY 8533971
16PANEL, REAR (CONSOLE)
17SCREW
18HARNESS, MAIN
19Screw, 8-32 x 1/32
20TIMER, DRYER
21SKIRT, DIAL
22MAY W10906058
23NUT, HEX
24CAP, KNOB
