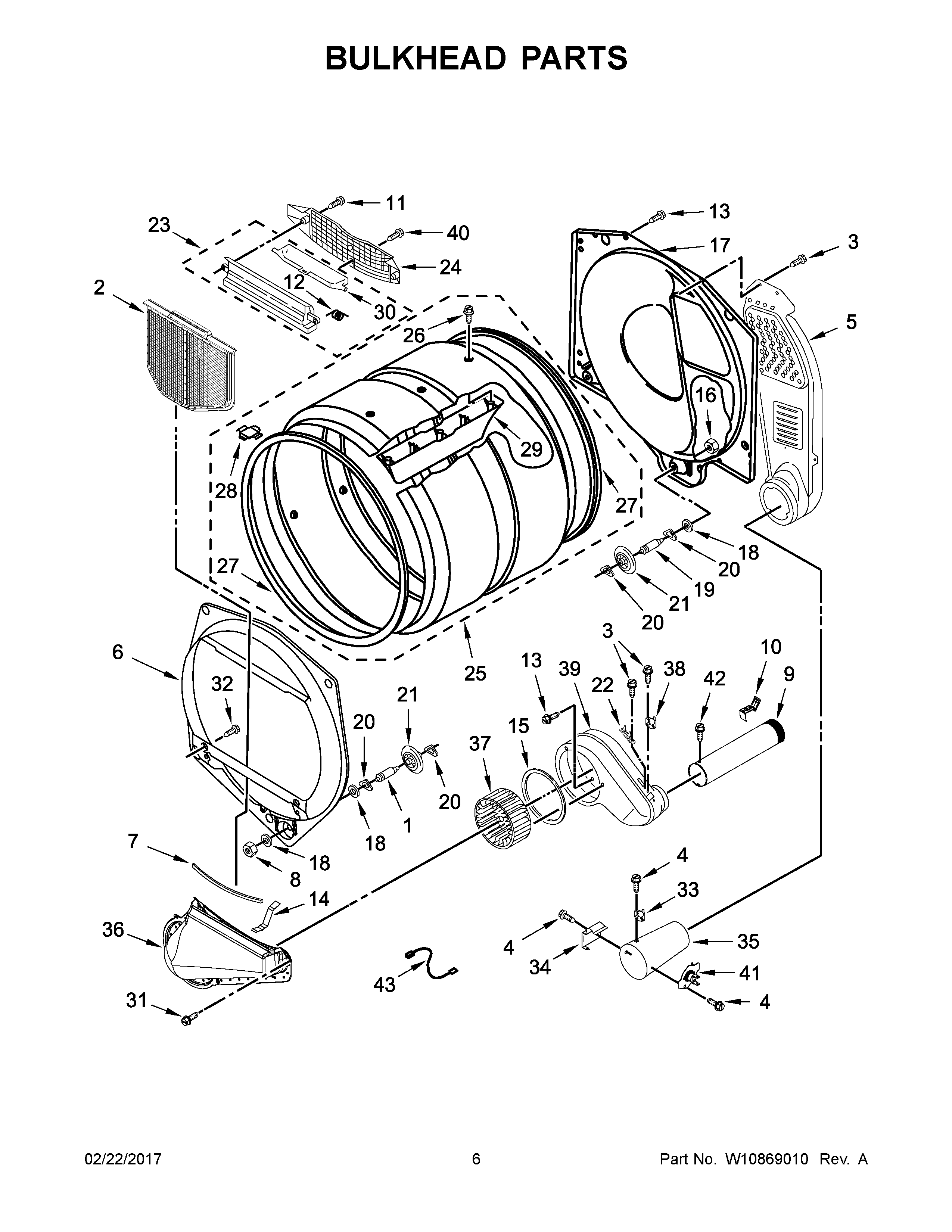

MDG20PDAWW0 04 – BULKHEAD PARTSadmin2025-04-26T10:11:34+00:00MDG20PDAWW0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | LINT SCREEN (WHITE) |
| 3 | MAY 8533971 |
| 4 | SCREW,8-18 X 3/8 |
| 5 | MAY 3394346 |
| 6 | BULKHEAD, FRONT |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | PIPE, EXHAUST |
| 10 | CLIP, EXHAUST |
| 11 | SCREW |
| 12 | Spring, Lint Screen Door |
| 13 | SCREW |
| 14 | CLIP, SPRING |
| 15 | SEAL, PLATE COVER |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY 3387809 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | Fuse, Thermal (91 C) |
| 23 | ASSEMBLY, OUTLET HOUSING |
| 24 | GRILL, OUTLET |
| 25 | ASSEMBLY, DRUM |
| 26 | MAY W10219342 |
| 27 | MAY W10521118 |
| 28 | Plug, Drum Hole |
| 29 | BAFFLE, DRUM |
| 30 | MAY W10685668 |
| 31 | Screw |
| 32 | SCREW |
| 33 | THERMOSTAT, HI LIMIT |
| 34 | MAY 338906 |
| 35 | MAY 8573824 |
| 36 | Lint Duct Assembly |
| 37 | MAY W10349492 |
| 38 | THERMISTOR |
| 39 | MAY 8544362 |
| 40 | Screw, 8-18 x 1/2 |
| 41 | CUT-OFF, THERMAL |
| 42 | Screw |
| 43 | WIRE JUMPER |
