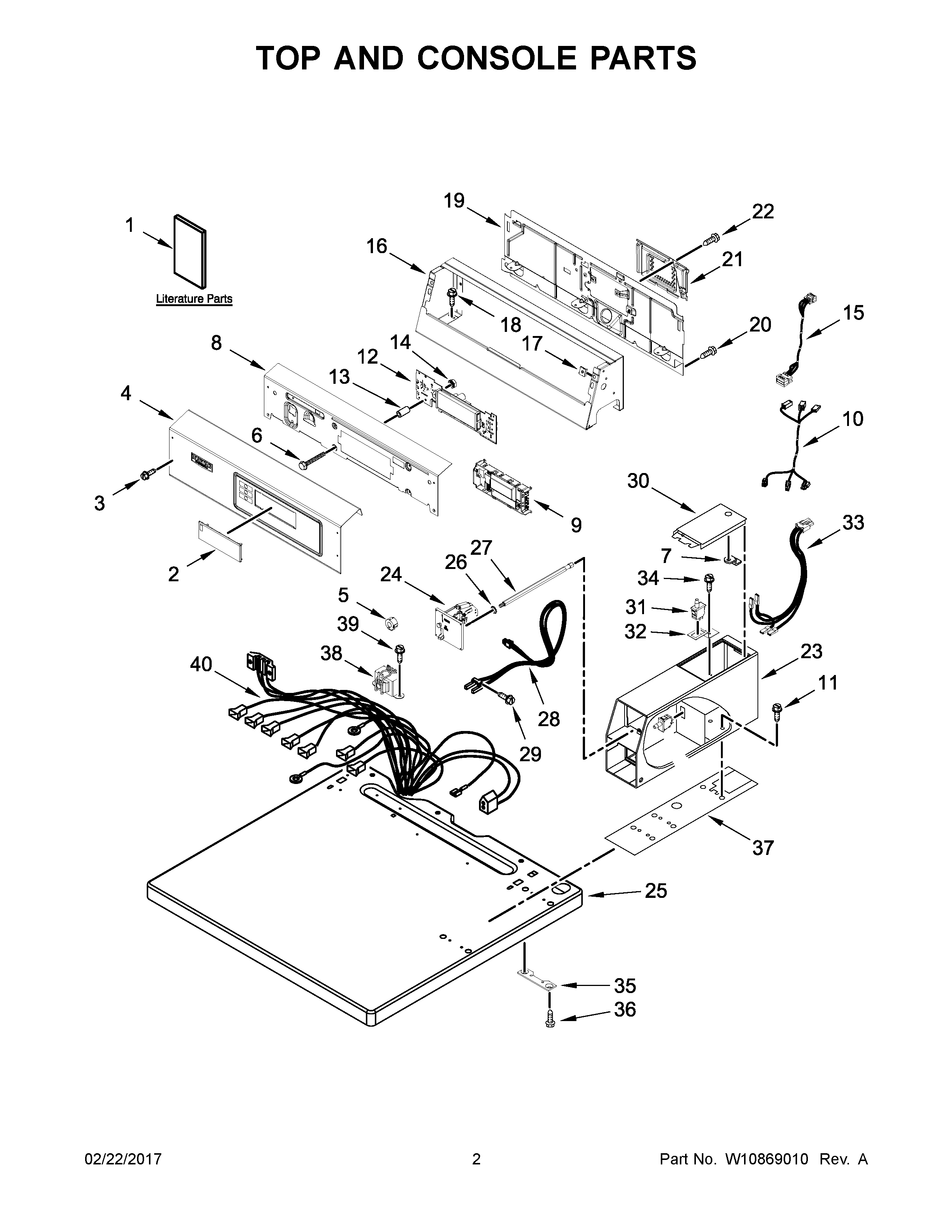

MDG20PDAXW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	MAY W10868965
1	MAY W10868655
1C	MAY W10868766
1B	MAY W10868765
2	COVER, DISPLAY
3	SCREW
4	MAY W10845282
5	CHOKE, HARNESS
6	SCREW
7	MAY W10156125
8	BRACKET, CONTROL MDE20PDAGW0
9	MAY W10166305
10	HARNESS, COIN EXTENDER
11	BOLT
12	MAY W10852649
13	STANDOFF, CIRCUIT BOARD
14	NUT
15	MAY W10881678
16	CONSOLE MDE20PDAGW0
17	NUT, "U"
19	PANEL, REAR (CONSOLE) MDE20PDAGW0
20	SCREW
21	MAY 8317339
22	Screw, 8-32 x 1/32
23	METER CASE
23A	METER CASE MDG20PDAXW0
24A	ASSEMBLY, DUAL COIN DROP, MDE20PDAZW0
24	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
25	TOP (WHITE MDE20PDAGW0)
26	Washer
27	MAY W10137319
28A	COIN SENSOR ASSY, COIN 2 (BLACK)
28	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
29	SCREW
30	ASSEMBLY, SERVICE DOOR
31	MAY W10131838
32	MAY W10133508
33	MAY W10211244
34	MAY W10139210
35	MAY 3347825
36	SCREW
37	CUSHION, METER CASE
38	MAY W10131839
39	MAY 8533971
40	MAY W10864805
