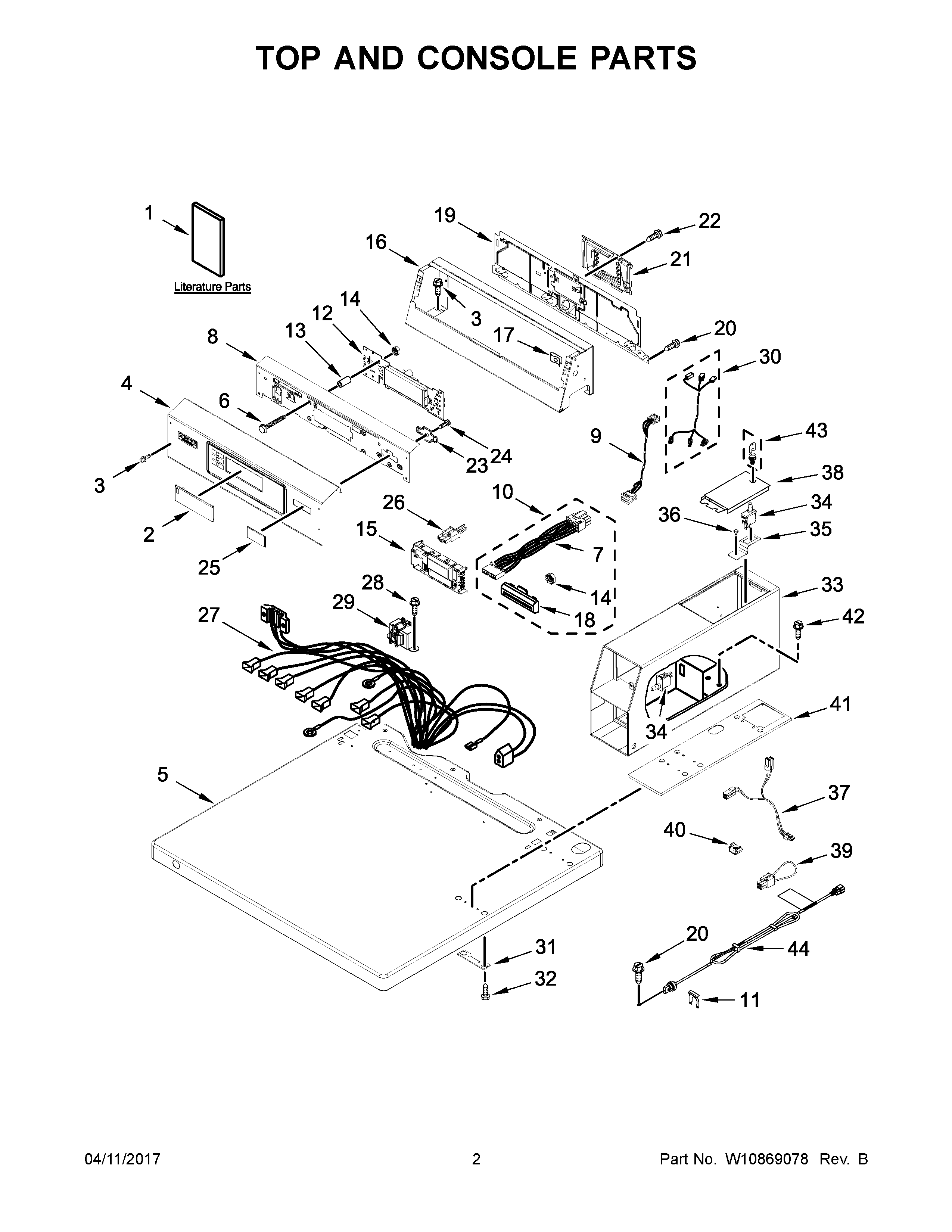

MDG20PNAGW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
NI10A CORD ADAPTER (EUROPEAN)
NIMAY W10476818
NI10A CORD ADAPTER (BRITISH)
NI10A CORD LOCK
1BMAY W10913404
1AMAY W10868710
1CMAY W10868969
1DMAY W10894511
1EWIRING DIAGRAM MDE20PNAGW0
1MAY W10868681
2COVER, DISPLAY
3SCREW
4MAY W10845283
4AFACIA MDE20PNAGW0
5ATOP (WHITE)
5TOP (WHITE MDE20PDAGW0)
6SCREW
7CARD READER, HARNESS
8ABRACKET, CONTROL MDE20PNAGW0
8BRACKET, CONTROL MDE20PDAGW0
9MAY W10881678
10MAY W10913402
11STRAIN-RELIEF CLIP
12ACONTROL, USER INTERFACE MDE20PNAGW0
12MAY W11042008
13STANDOFF, CIRCUIT BOARD
14NUT
15BOARD, CONTROL
16CONSOLE MDE20PDAGW0
16ACONSOLE
17NUT, "U"
18BEZEL
19PANEL, REAR (CONSOLE) MDE20PDAGW0
19APANEL, REAR (CONSOLE) MDE20PNAGW0
20SCREW
21MAY W10601020
22Screw, 8-32 x 1/32
23RETAINER, CARD READER COVER
24MAY 3400618
25COVER, CARD READER
26JUMPER, SWITCH SERVICE/VAULT
27MAY W10864807
28MAY 8533971
29TRANSFORMER, 240-22.5 VAC
30HARNESS, COIN EXTENDER
31MAY 3347825
32SCREW
33METER CASE
34SWITCH, VAULT SERVICE DOOR
35MAY W10133508
36MAY W10139210
37MAY W10211244
38ASSEMBLY, SERVICE DOOR
39MAY W10785124
40NUT, CAGE
41CUSHION, METER CASE
42BOLT
43ASSEMBLY, CAM & SECURITY LOCK
44CORD-POWER
