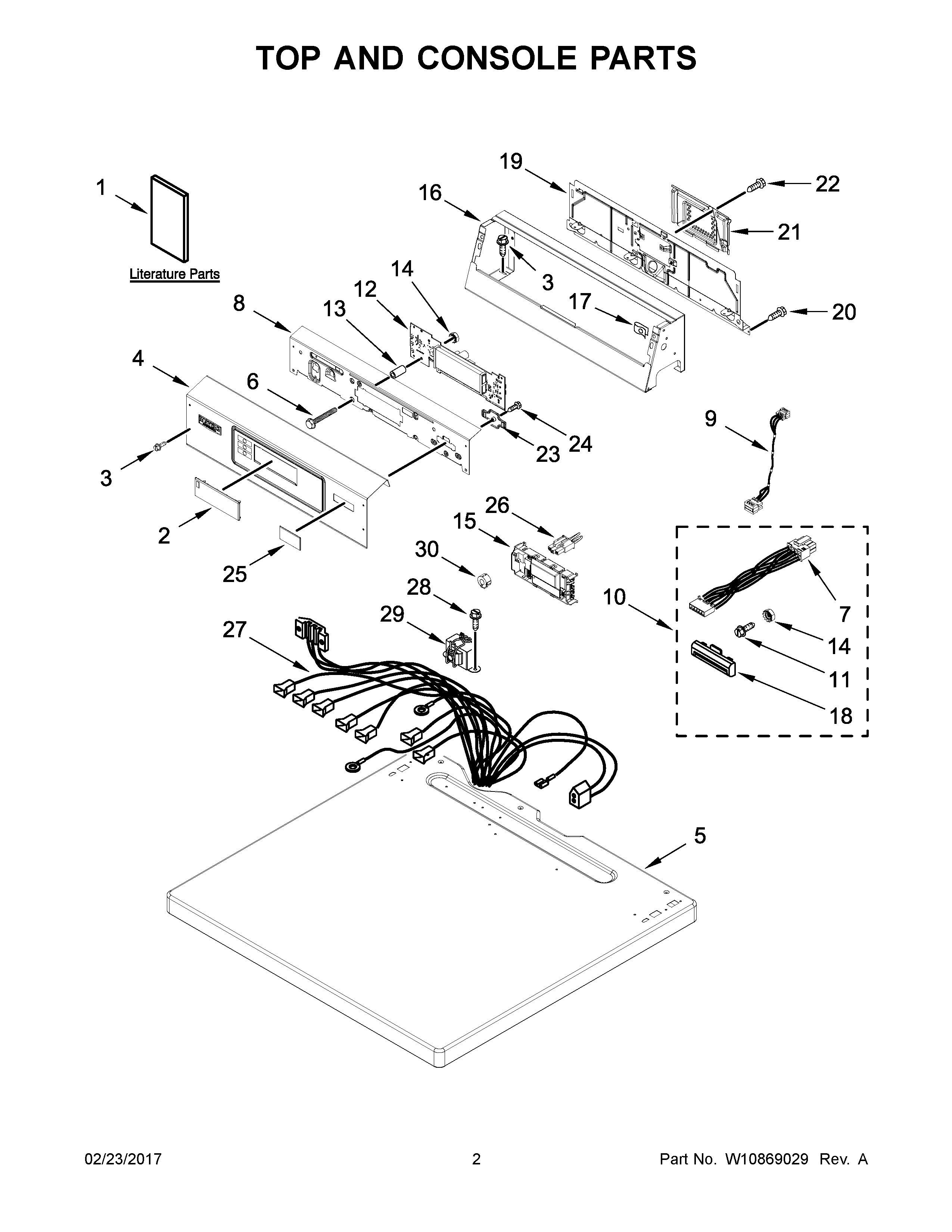

MDG20PRAWW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10868965
1C	MAY W10868768
1	MAY W10868655
1A	INSTALLATION INSTRUCTIONS CR
2	COVER, DISPLAY
3	SCREW
4	MAY W10845284
5	TOP (WHITE)
6	SCREW
7	CARD READER, HARNESS
8	BRACKET, CONTROL MDE20PNAGW0
9	MAY W10881678
10	CARD READER, CONVERSION KIT
11	SCREW
12	MAY W10852653
13	STANDOFF, CIRCUIT BOARD
14	NUT
15	MAY W10166305
16	CONSOLE
17	NUT, "U"
18	BEZEL
19	PANEL, REAR (CONSOLE) MDE20PNAGW0
20	SCREW
21	MAY 8317339
22	Screw, 8-32 x 1/32
23	RETAINER, CARD READER COVER
24	MAY 3400618
25	COVER, CARD READER
26	JUMPER, SWITCH SERVICE/VAULT
27	MAY W10864805
28	MAY 8533971
29	MAY W10131839
30	CHOKE, HARNESS
