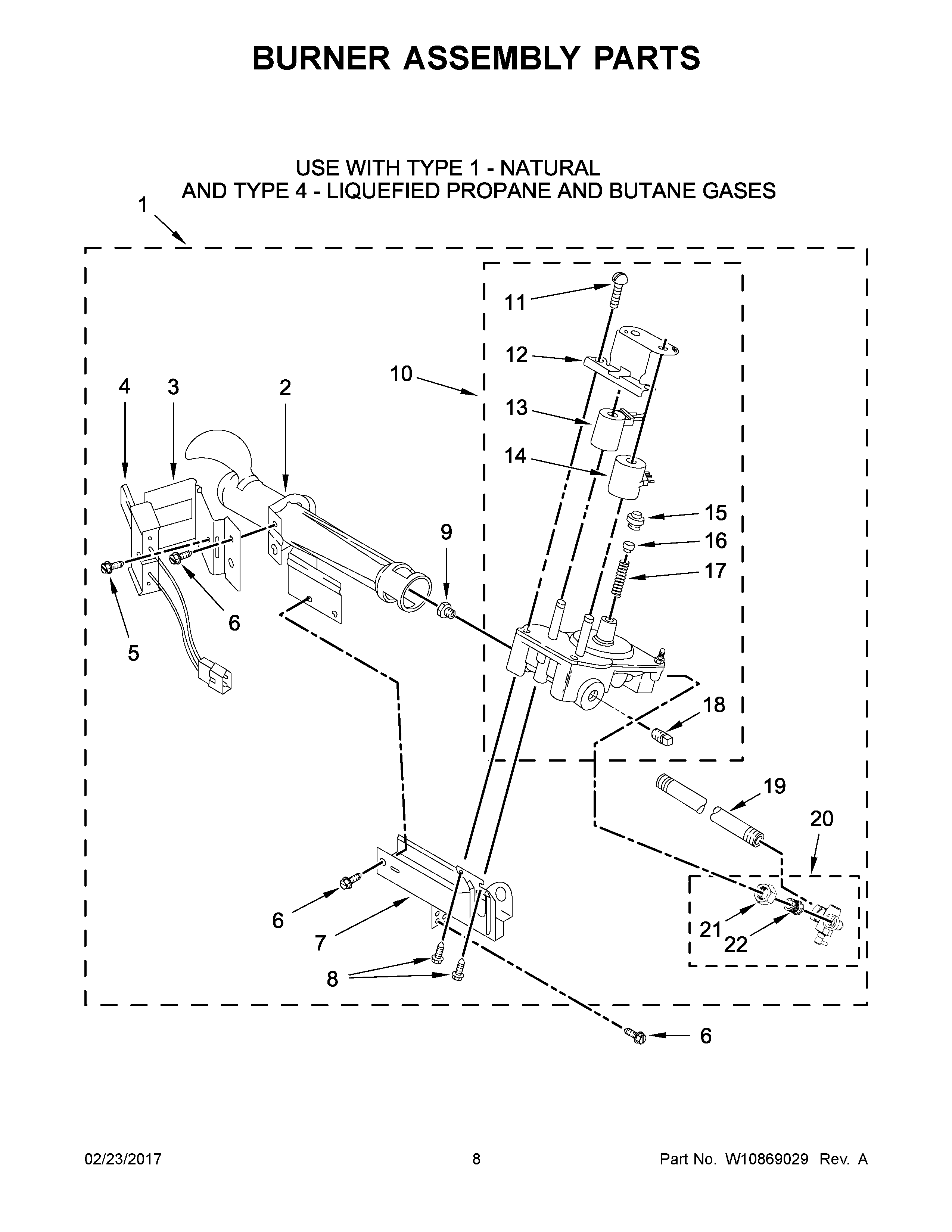

MDG20PRAWW0 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
1	BURNER ASSEMBLY (60 HZ)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1 (NATURAL GAS))
10	VALVE, GAS (COMPLETE) 60 HZ
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	MAY 239822
19	MAY W10110395
20	Valve & Union Shut-Off
21	MAY 233076
22	MAY 3393767
