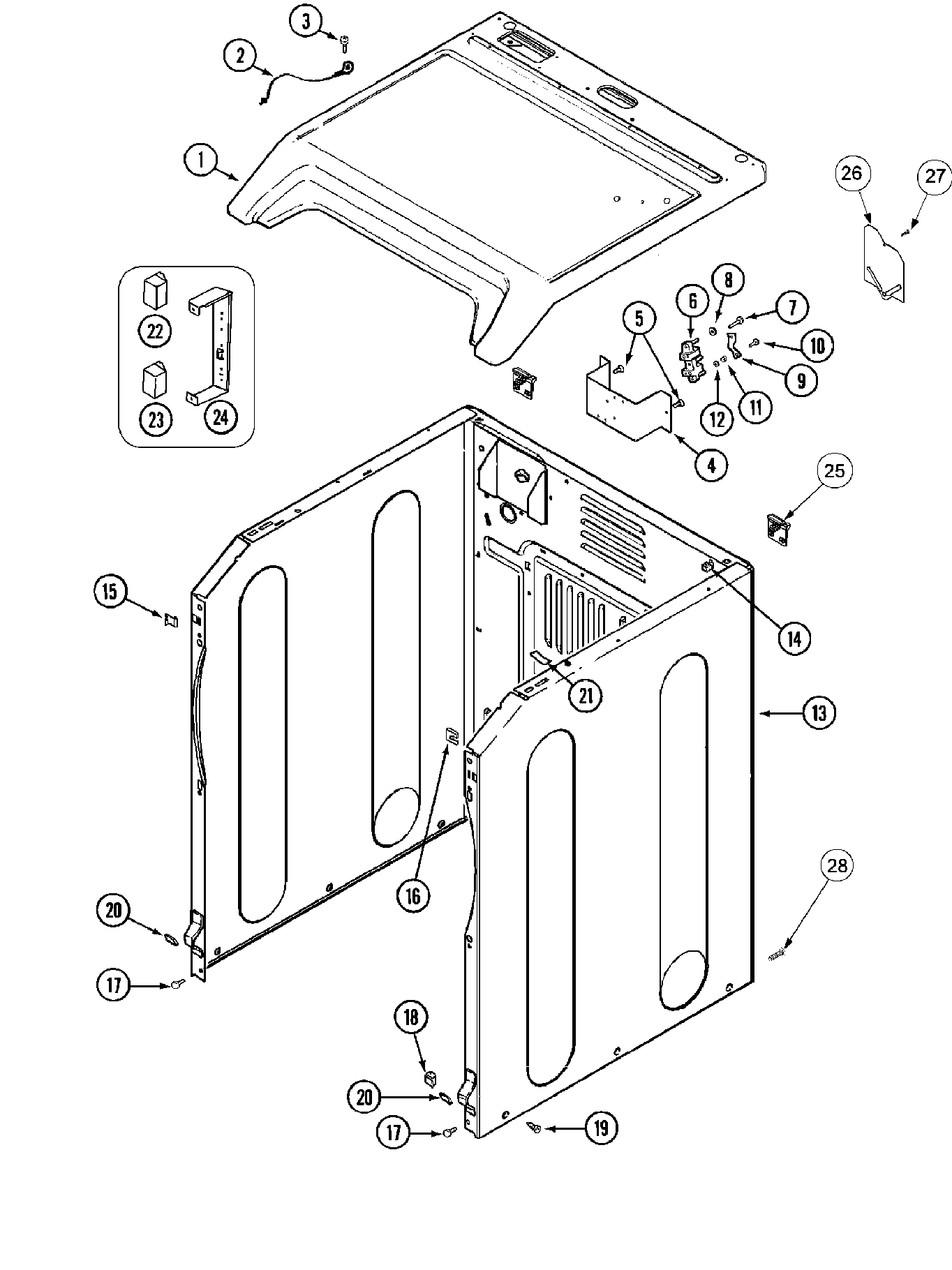

MDG21PNAGW 02 – CABINET FRONT

MDG21PNAGW 02 – CABINET FRONT

Written by

in

MDG21PNAGW 02 – CABINET FRONT

Products

PositionProduct
001MAY 33002627
002MAY 205810
003WP489399 Whirlpool Refrigerator Screw
006MAY 33002259
006MAY 33002106
007SCREW, No.10-24 X 3/4 INCH—–O
008WPY311270 Whirlpool Washer TE
009PART NOT USED
010DOWEL PIN FOR HANDLE
011WP112432 Whirlpool Nut Assembly
012MAY 33002388
013MAY 22003639
014MAY 33002194
015WP22002049 Whirlpool Washer/Dryer Clip
016MAY 213280
018MAY Y310376
018MAY 22003298
019213007 Whirlpool Screw #12
020MAY 22002239
021MAY 33001836
022MAY 206824
023MAY 306398
023WP3177991 Whirlpool Screw
024MAY 314627
025MAY 22003367
026MAY 33001795
028W11573574 Whirlpool Screw
029MAY 216183
029MAY 22003705
029MAY 22003540
