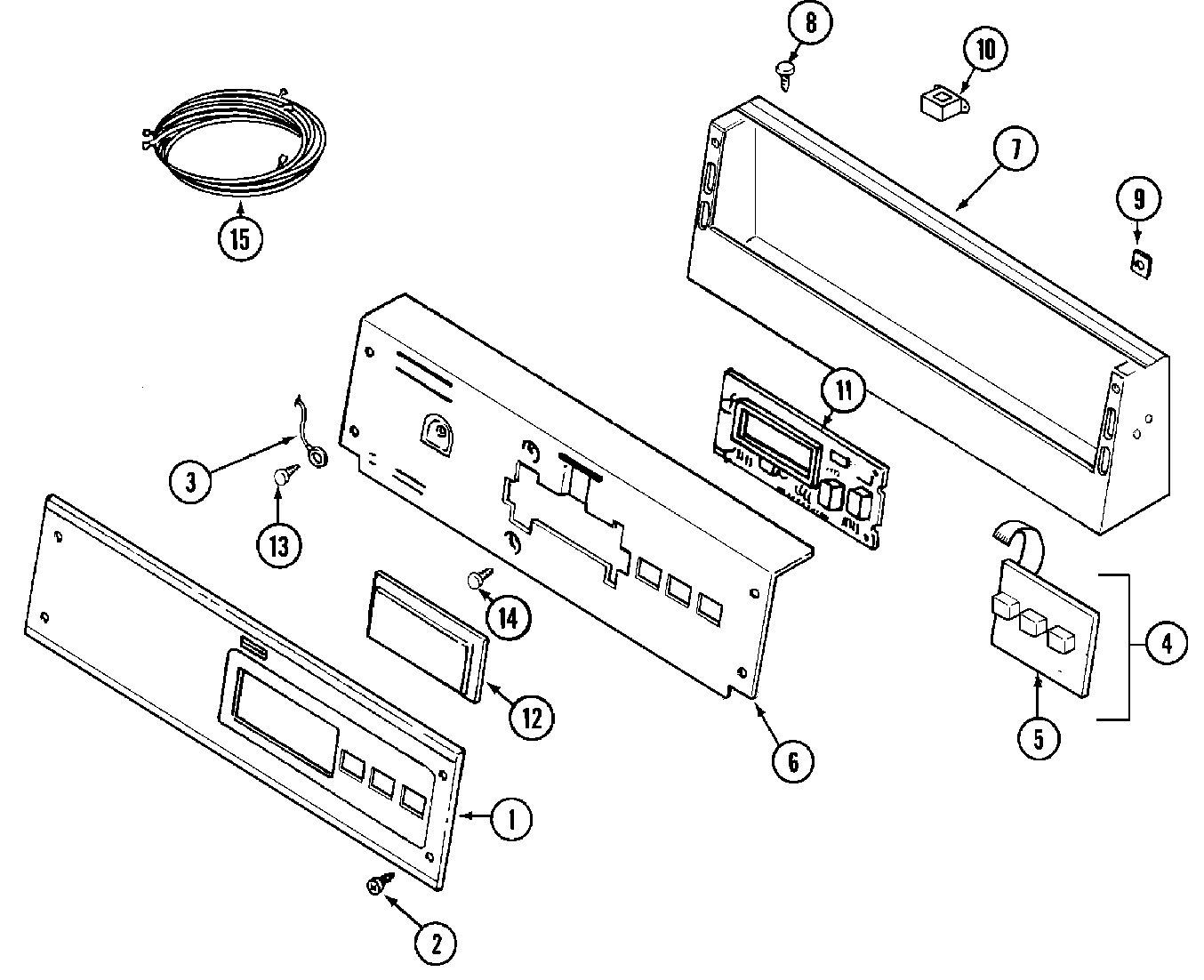

MDG21PNDWW 01 – CONTROL PANEL

Products

PositionProduct
001MAY 33002943
002WPW10131119 Whirlpool Screw
003MAY 22001959
004BACKUP PLATE W/SWITCH
004W10756178 Whirlpool Screw
005WPW10424308 Whirlpool Push Button
006MAY 22002954
006MAY 33002523
007MAY 22003101
008WP489128 Whirlpool Refrigerator Screw
009MAY 215003
010MAY 22001960
011MAY 33001204
012WPW10131114 Whirlpool Cover Assembly
013WP489399 Whirlpool Refrigerator Screw
014SCREW, CIRCUIT BOARD
015MAY 33001878
015MAY 33002090
015MAY 22003818
