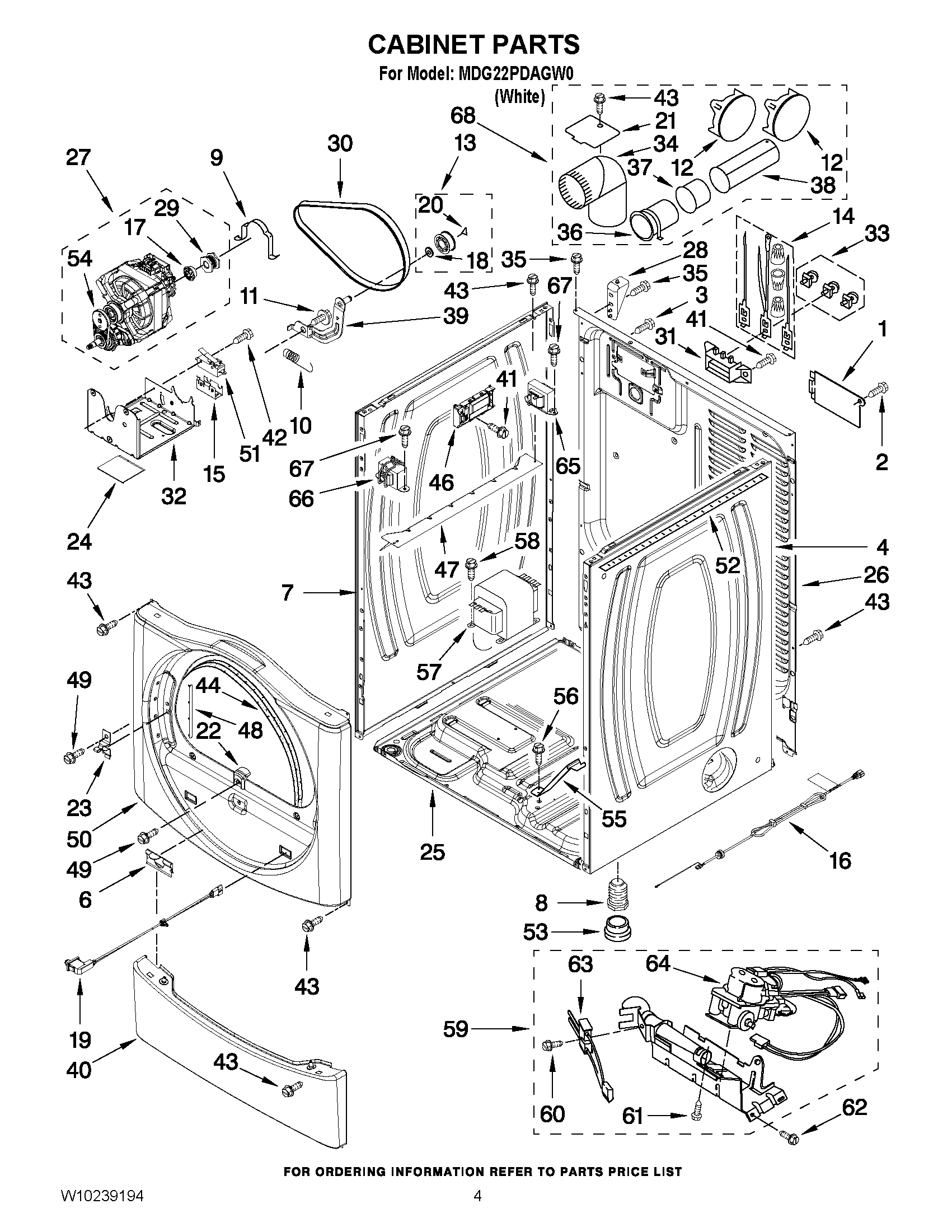

MDG22PDAGW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY W10153836
NI	MAY 279818
NI	MAY 279810
NI	MAY W10223807
NI	MAY W10223809
NI	MAY W10223804
1	MAY 8576583
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
6	MAY 8519459
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	CORD, POWER
17	MAY 3393657
18	MAY 233520
19	MAY W10251066
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	DAPENING PANEL
25	MAY W10225178
26	MAY W10225180
27	ASSEMBLY, MOTOR (50 HZ.)
28	MAY W10137398
29	MAY W10167237
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 49026
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY 8540621
42	SCREW
43	MAY W10080700
44	MAY 3387242
46	BOARD, CONTROL
47	Bracket, Control
48	Plug, Front Panel
49	MAY W10080710
50	PANEL, FRONT
51	ASSEMBLY, SWITCH
52	SEAL-FOAM (IEC)
53	BOOT, FOOT
54	MAY 3405160
55	MAY W10181903
56	MAY W10080390
57	MAY 3977633
58	MAY W10080740
59	MAY W10096909
60	Screw & Washer (8-32 x 5/8)
61	MAY W10080320
62	MAY W10080630
63	MAY 686590
64	VALVE, GAS 50 HZ. (COMPLETE)
65	TRANSFORMER
66	TRANSFORMER, 240 – 120 VAC
67	MAY W10080820
