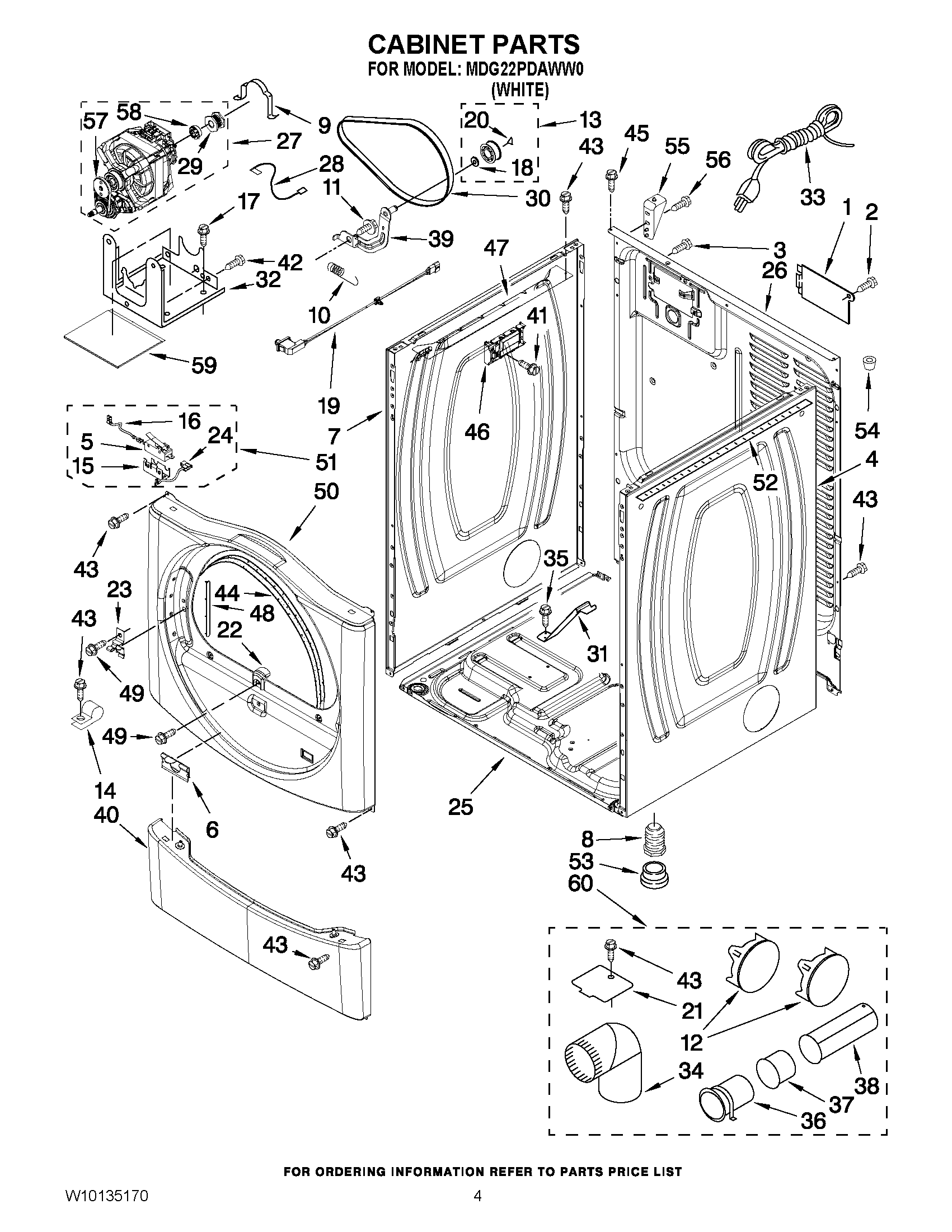

MDG22PDAWW0 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	MAY 279818
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
5	Switch, Broken Belt
6	MAY 8519459
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 697750
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	MAY 8564011
16	Wire, Belt (To Protector)
17	SCREW
18	MAY 233520
19	MAY 8574875
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8565083
23	STRIKE, DOOR
24	MAY 8539892
25	MAY 8565046
26	MAY 8565059
27	MOTOR ASSEMBLY 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 8529757
32	MAY W10135695
33	MAY 3401401
34	MAY 49026
35	Screw
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	MAY 8540621
41	MAY 8533971
42	Bolt, 6-20 x 1 1/4
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10166297
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	MAY W10117421
51	MAY W10155571
52	SEAL-FOAM (IEC)
53	BOOT, FOOT
54	CONE WEDGE
55	MAY W10137398
56	Screw, 8-18 x 5/8
57	MAY 3405160
58	MAY 3393657
59	DAPENING PANEL
