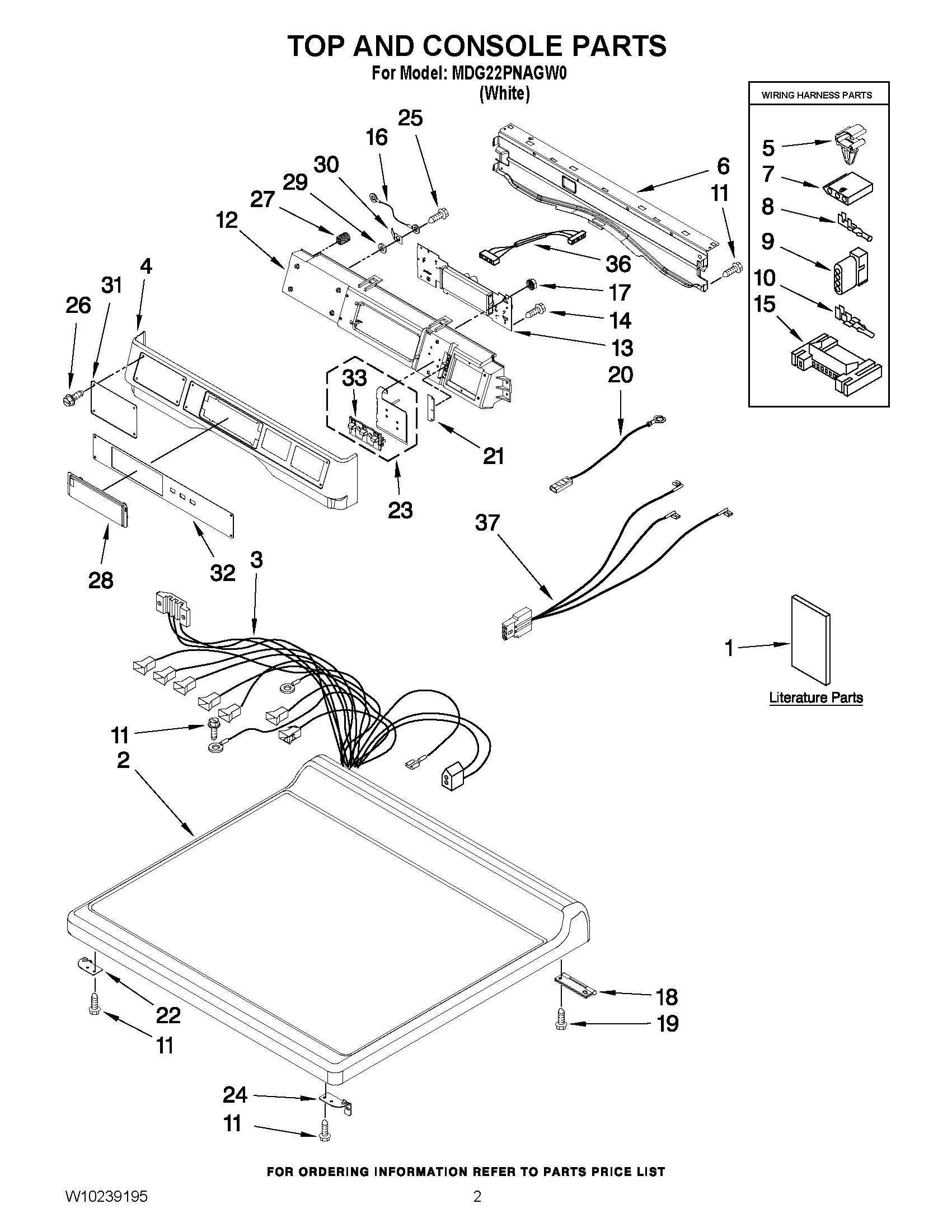

MDG22PNAGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239195
1	MAY W10239207
1	MAY W10233253
1	MAY W10239197
2	TOP (WHITE)
3	MAY W10111046
4	MAY W10137459
5	CLIP, HARNESS
6	MAY 8565237
7	Connector Sensor
8	Terminal
9	MAY 3936144
10	Terminal
11	MAY W10080700
12	MAY W10137427
13	MAY W10166346
14	MAY 489136
15	CONNECTOR (MOTOR)
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	SCREW
20	MAY W10257051
21	MAY W10187276
22	MAY W10137445
23	SWITCH, MEMBRANE & BACKER PLATE
24	MAY W10137444
25	Screw 8-32 x 1/4
26	SCREW
27	INSERT
28	Cover, Display
29	MAY W10189075
30	MAY 3373818
31	DISPENSER, FASCIA
32	MAY W10135194
33	BUTTON, PUSH
36	MAY W10166307
37	JUMPER, TRANSFORMER
