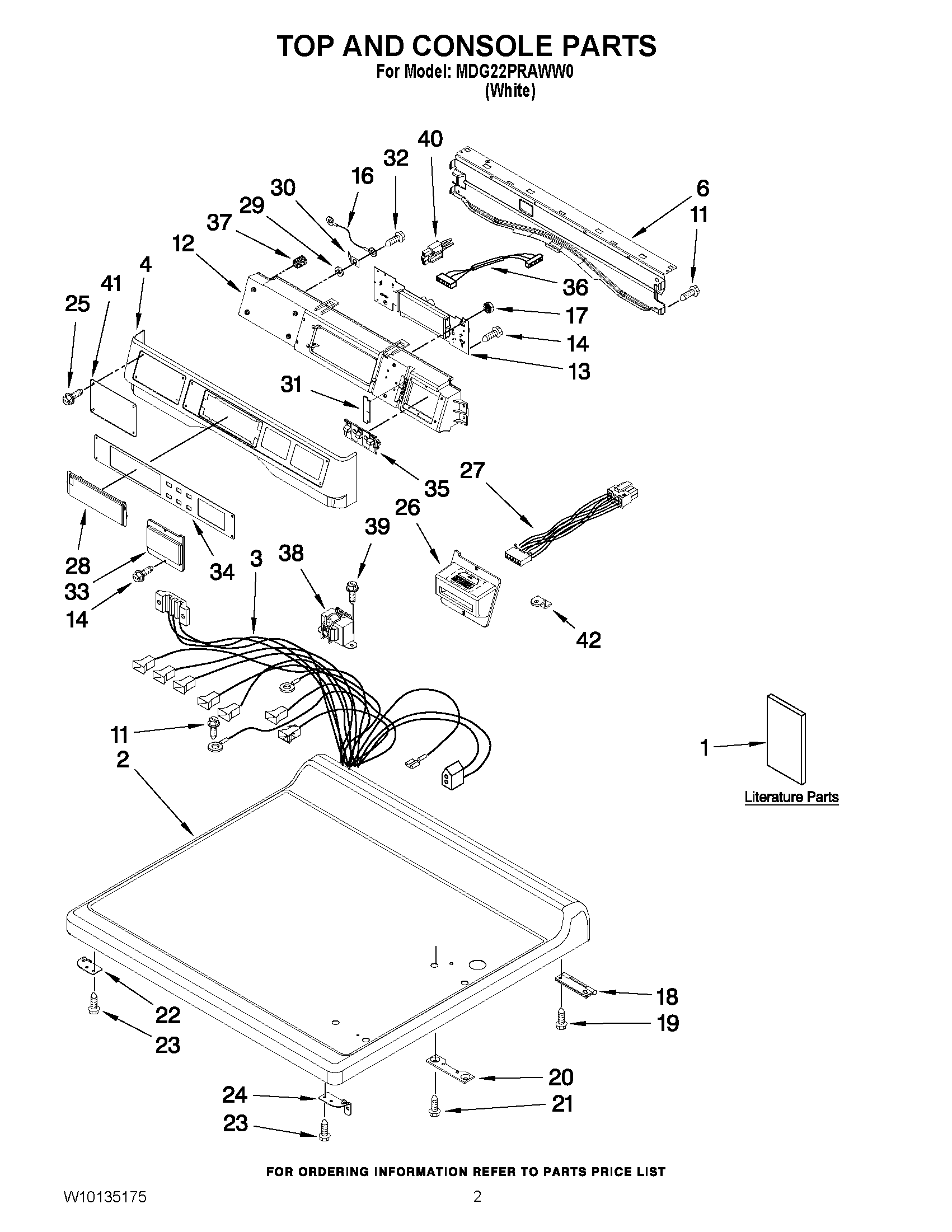

MDG22PRAWW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10135175
1	MAY W10166332
1	INSTALLATION INSTRUCTION
2	TOP (WHITE)
3	MAY W10111006
4	MAY W10137459
6	MAY 8565237
11	SCREW
12	MAY W10137427
13	MAY W10137419
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY 3347825
21	SCREW
22	MAY W10137445
23	Screw, 8-18 x 5/8
24	MAY W10137444
25	SCREW
26	MAY W10137454
27	CARD READER, HARNESS
28	Cover, Display
29	MAY W10189075
30	MAY 3373818
31	MAY W10187276
32	Screw 8-32 x 1/4
33	MAY W10137477
34	MAY W10137439
35	BUTTON, PUSH
36	MAY W10166307
37	INSERT
38	MAY W10131839
39	MAY 8533971
40	JUMPER, SWITCH SERVICE/VAULT
41	DISPENSER, FASCIA
42	CAM COMMERCIAL LOCK
