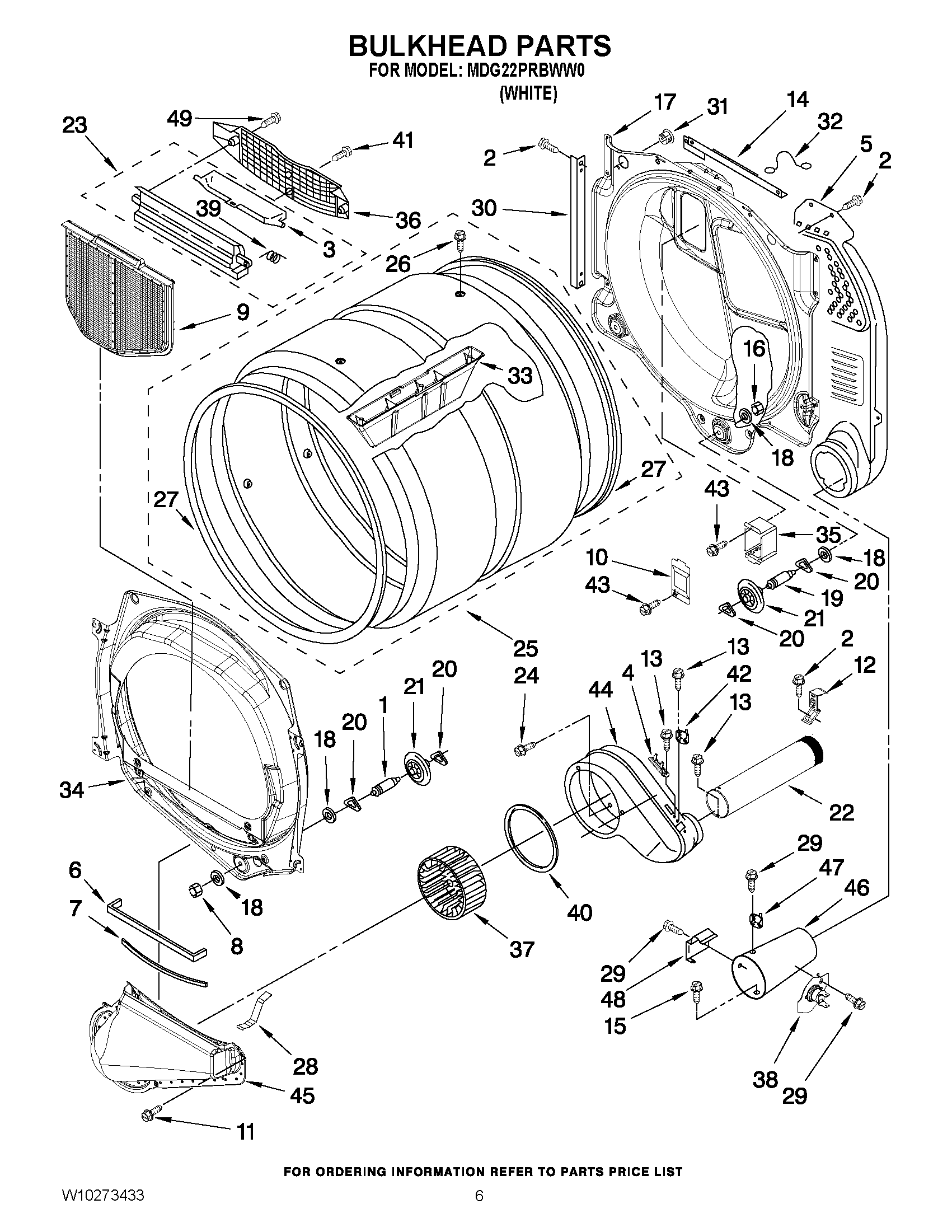

MDG22PRBWW0 03 – BULKHEAD PARTS

MDG22PRBWW0 03 – BULKHEAD PARTS

Written by

in

MDG22PRBWW0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY W10181925
4	Fuse, Thermal (91 C)
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
11	MAY 359625
12	CLIP, EXHAUST
13	MAY 8533971
14	MAY 8571651
15	Screw
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8563728
23	OUTLET HOUSING ASSEMBLY
24	Screw
25	MAY W10153420
26	MAY W10219342
27	MAY W10166807
28	CLIP-SPRING
29	SCREW,8-18 X 3/8
30	MAY 8519221
31	MAY 8529007
32	WIRE JUMPER
33	MAY W10153409
34	MAY 8565061
35	MAY 8578825
36	MAY W10181926
37	MAY W10168564
38	CUT-OFF, THERMAL
39	Spring, Lint Screen Door
40	SEAL, PLATE COVER
41	Screw, 8-18 x 1/2
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8573824
47	THERMOSTAT, HI LIMIT
48	MAY 338906
49	SCREW
