MDG25PDAGW2 05 – DOOR PARTS – Aparts

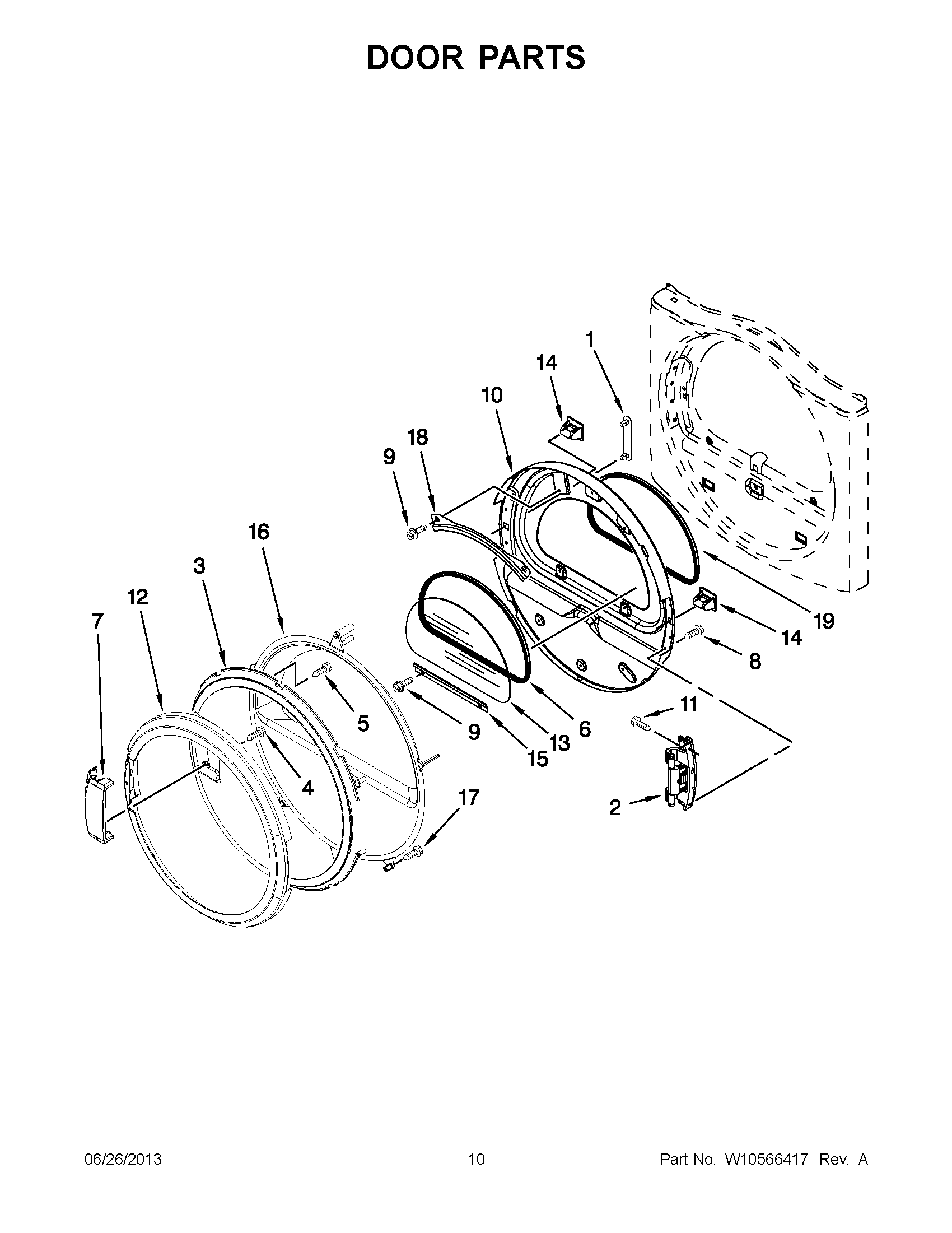

MDG25PDAGW2 05 – DOOR PARTS

Products

Position	Product
1	MAY 8565119
2	MAY W10294646
3	MAY W10137467
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR
8	SCREW
9	Screw, 10-16 x 1/2
10	MAY W10363674
11	MAY 355515
12	Door, Outer Ring
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	MAY 8534022
18	MAY 8519356
19	MAY W10163915
