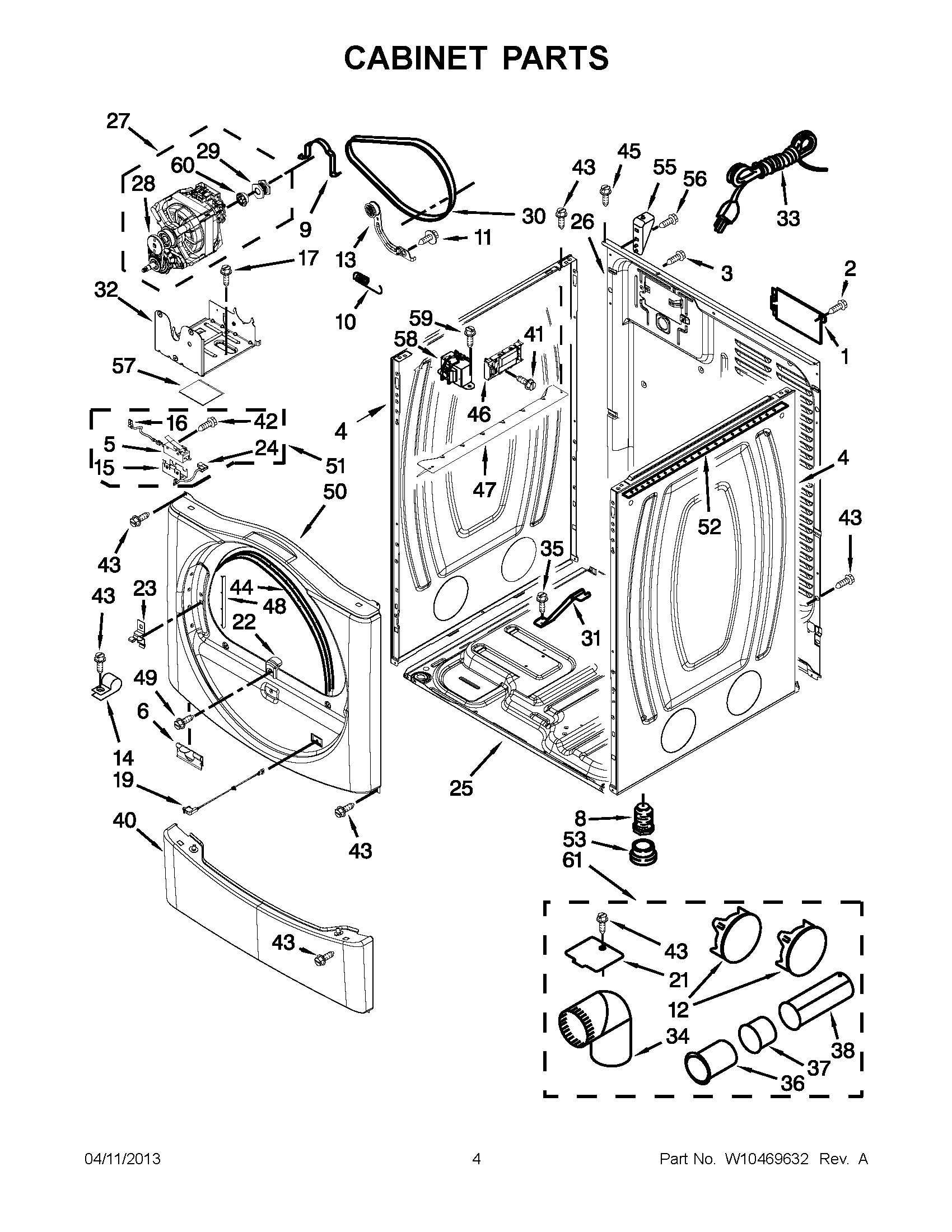

MDG25PDAWW2 02 – CABINET PARTS
Written by
in
MDG25PDAWW2 02 – CABINET PARTS
Products
Position
Product
NI
MAY 279810
1
MAY 8317340
2
Screw, 8-18 x 3/8
3
MAY 8533974
4
MAY W10542714
5
Switch, Broken Belt
6
MAY 8519459
8
MAY 3392100
9
MAY 660658
10
MAY W10446781
11
SCREW
12
MAY 697750
13
MAY W10344192
14
MAY 3978776
15
MAY 8564011
16
Wire, Belt (To Protector)
17
SCREW
19
DOOR SWITCH ASSEMBLY
21
MAY 8066115
22
MAY 8580015
23
STRIKE, DOOR
24
MAY 8539892
25
MAY 8565046
26
MAY 8565059
27
MAY W10396034
28
MAY 3405160
29
PULLEY, MOTOR
30
BELT, DRIVE
31
MAY 8529757
32
MAY W10135695
33
MAY W10440461
34
MAY 49026
35
Screw
36
PIPE, EXHAUST (MEDIUM)
37
MAY 8563750
38
PIPE, EXHAUST (LONG)
40
MAY 8540621
42
Bolt, 6-20 x 1 1/4
44
MAY 3387242
45
SCREW, 10-16 X 1/2
46
MAY W10166305
47
Bracket, Control
48
Plug, Front Panel
49
SCREW
50
MAY W10549665
51
MAY W10155571
52
SEAL-FOAM (IEC)
53
BOOT, FOOT
55
MAY W10137398
56
SCREW
57
DAPENING PANEL
58
MAY W10131839
59
MAY 8533971
60
MAY 3393657
61
MAY 279818
←
