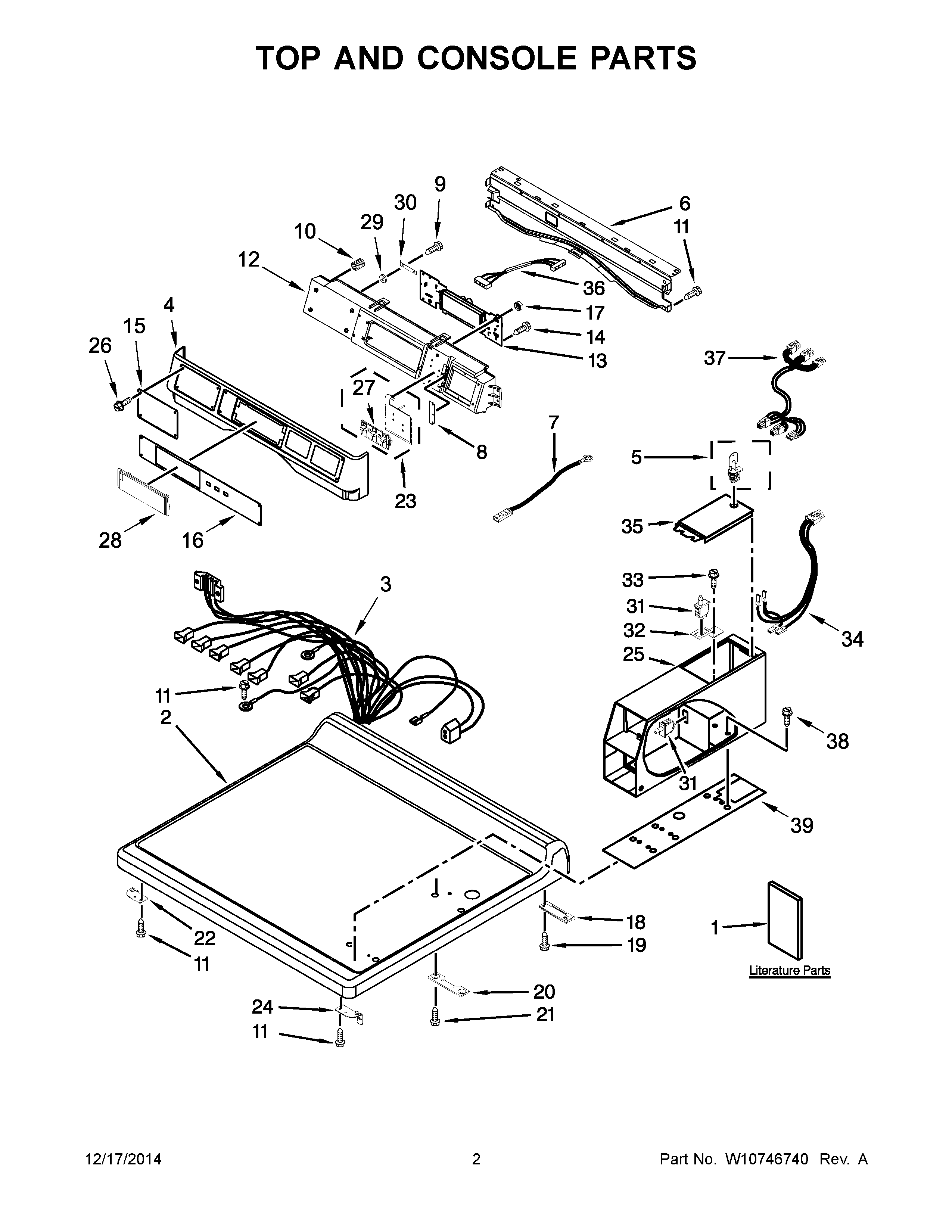

MDG25PDBGW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10589669
1C	MAY W10166388
1A	MAY W10746732
1B	MAY W10731776
2	MAY W10137411
3	MAY W10745629
4	MAY W10137459
5	ASSEMBLY, CAM & SECURITY LOCK
6	MAY 8565237
7	MAY W10257051
8	MAY W10187276
9	Screw 8-32 x 1/4
10	INSERT
11	SCREW
12	MAY W10137427
13	MAY W10166385
14	MAY 489136
15	DISPENSER, FASCIA
16	MAY W10334891
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY 3347825
21	SCREW
22	MAY W10137445
23	SWITCH, MEMBRANE & BACKER PLATE
24	MAY W10137444
25	CASE, METER
26	SCREW
27	MAY W10424308
28	COVER, DISPLAY
29	MAY W10189075
30	MAY W10532923
31	SWITCH, VAULT SERVICE DOOR
32	MAY W10133508
33	MAY W10139210
34	MAY W10211244
35	ASSEMBLY, SERVICE DOOR
36	MAY W10166307
37	MAY W10166308
38	BOLT
39	MAY W10137448
