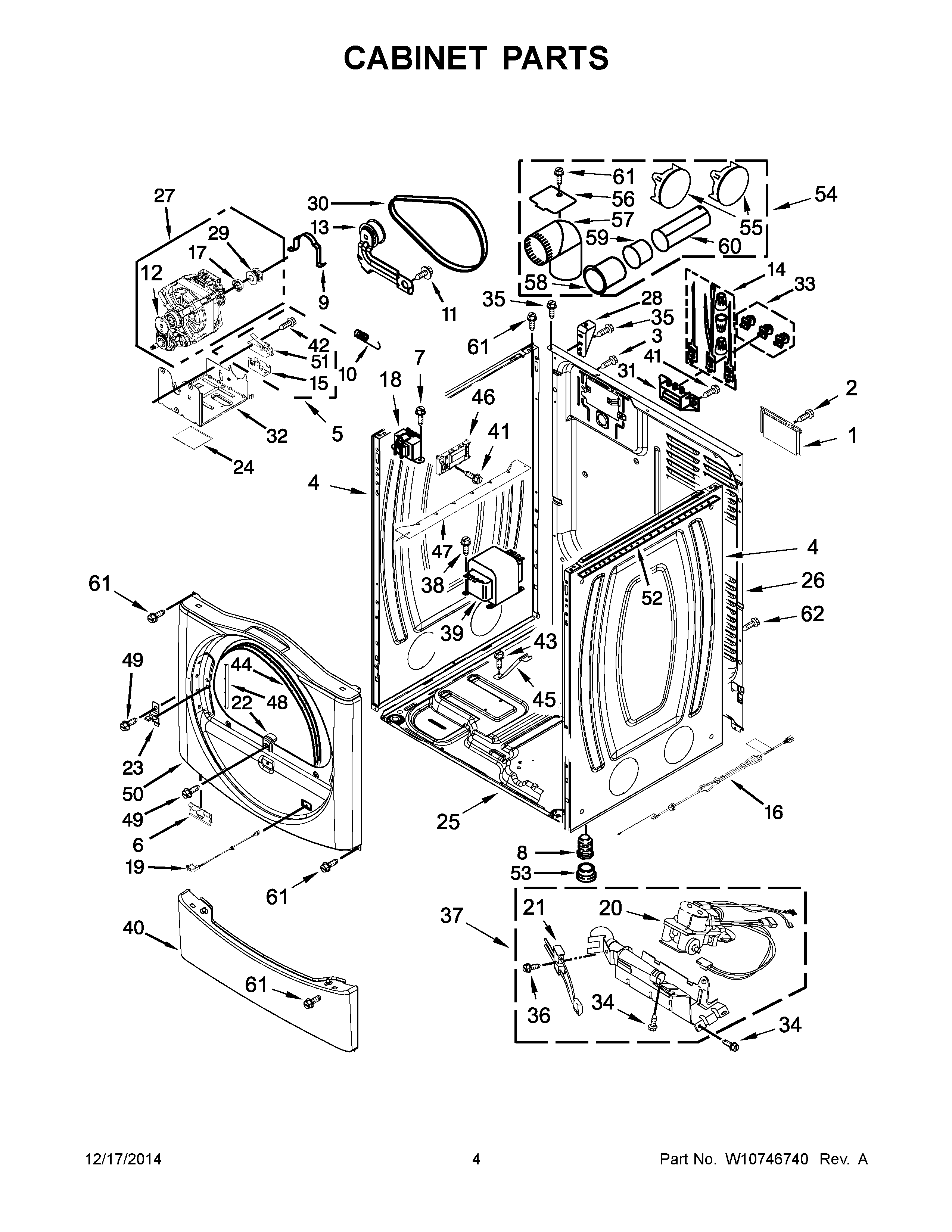

MDG25PDBGW0 03 – CABINET PARTSadmin2025-04-26T10:12:23+00:00MDG25PDBGW0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY W10476818 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | 10A CORD LOCK |
| NI | MAY 279810 |
| NI | 10A CORD ADAPTER (BRITISH) |
| NI | 10A CORD ADAPTER (EUROPEAN) |
| 1 | MAY W10601020 |
| 2 | Screw, 8-18 x 3/8 |
| 3 | MAY 8533974 |
| 4 | MAY W10542714 |
| 5 | ASSEMBLY, SWITCH |
| 6 | MAY 8519459 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | MAY 3405160 |
| 13 | MAY W10344192 |
| 14 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 15 | MAY 8564011 |
| 16 | CORD-POWER |
| 17 | MAY 3393657 |
| 18 | TRANSFORMER, 240-22.5 VAC |
| 19 | MAY W10459028 |
| 20 | VALVE, GAS 50 HZ. (COMPLETE) |
| 21 | MAY 686590 |
| 22 | MAY 8580015 |
| 23 | STRIKE, DOOR |
| 24 | DAPENING PANEL |
| 25 | MAY W10225178 |
| 26 | MAY W10225180 |
| 27 | ASSEMBLY, MOTOR 50 HZ. |
| 28 | MAY W10137398 |
| 29 | MAY W10167237 |
| 30 | BELT, DRIVE |
| 31 | MAY 3397659 |
| 32 | MAY W10135695 |
| 33 | MAY 279393 |
| 34 | SCREW |
| 36 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 37 | MAY W10096909 |
| 38 | SCREW |
| 39 | MAY 3977633 |
| 40 | MAY 8540621 |
| 41 | MAY 8533971 |
| 42 | SCREW |
| 43 | SCREW,8-18 X 3/8 |
| 44 | MAY 3387242 |
| 45 | MAY W10181903 |
| 46 | BOARD, CONTROL |
| 47 | Bracket, Control |
| 48 | Plug, Front Panel |
| 49 | SCREW |
| 50 | PANEL, FRONT (WHITE) |
| 51 | ASSEMBLY, SWITCH ACTUATOR |
| 52 | SEAL-FOAM (IEC) |
| 53 | BOOT, FOOT |
| 54 | MAY 279818 |
| 55 | MAY 697750 |
| 56 | MAY 8066115 |
| 57 | MAY 49026 |
| 58 | PIPE, EXHAUST (MEDIUM) |
| 59 | MAY 8563750 |
| 60 | PIPE, EXHAUST (LONG) |
| 61 | SCREW |
