MDG26CSAAW 04 – CS CONTROL CENTER – Aparts

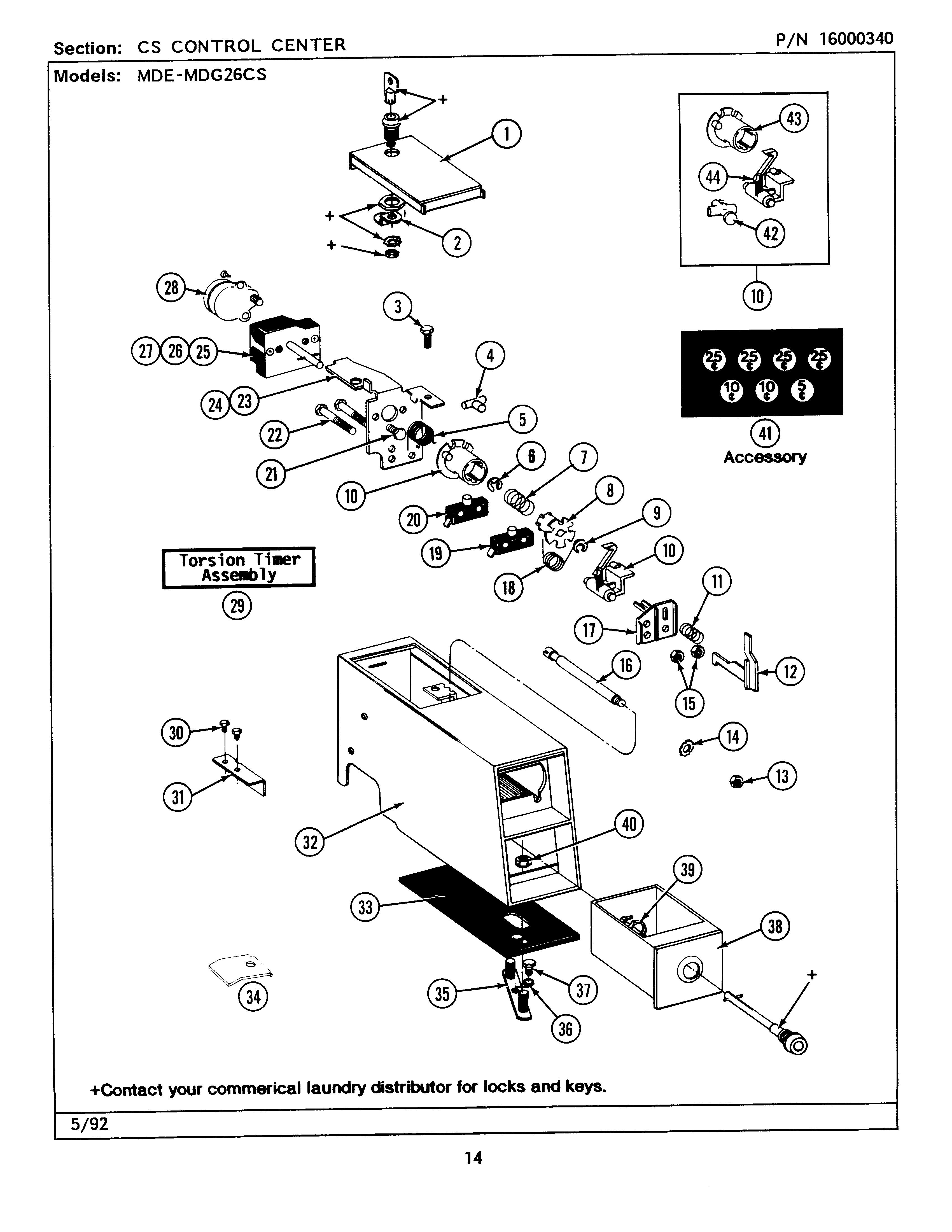

MDG26CSAAW 04 – CS CONTROL CENTER

Products

Position	Product
001	MAY 203188M
001	MAY 203188
001	ACCESS DOOR-ALMOND
002	W11165684 Whirlpool Cam
003	WPW10139210 Whirlpool Screw
004	TIME ADJUSTMENT PEG
006	MAY Y312270
007	WP211065 Whirlpool Timer Spring
010	MAY 306104
012	33002968 Whirlpool Slider
013	Y052721 Whirlpool Nut
014	MAY 910387
015	MAY Y052634
016	MAY 215559
017	MAY 314339
018	MAY 314332
019	MAY 305798
020	MAY Y305799
021	MAY 910708
023	TIMER MOUNTING BRACKET
025	MAY 305796
026	MAY 305813
027	MAY 305800
028	TIMER MOTOR RPR
029	MAY 305797
030	W11684507 Whirlpool Screw
031	BRACKET FOR COIN SLIDE
032	MAY 206956
032	MAY 206956L
032	MAY 206956M
033	MAY 214660
035	DOWEL PIN FOR HANDLE
036	MAY 910309
037	WP90767 Whirlpool Screw
038	MAY 205423M
038	COIN BOX-ALMOND
038	COIN BOX-WHITE
039	W11395752 Whirlpool Nut
040	WP62739 Whirlpool Nut
041	MAY 214648
042	MAY 314547
043	MAY 314546
044	MAY 314548
