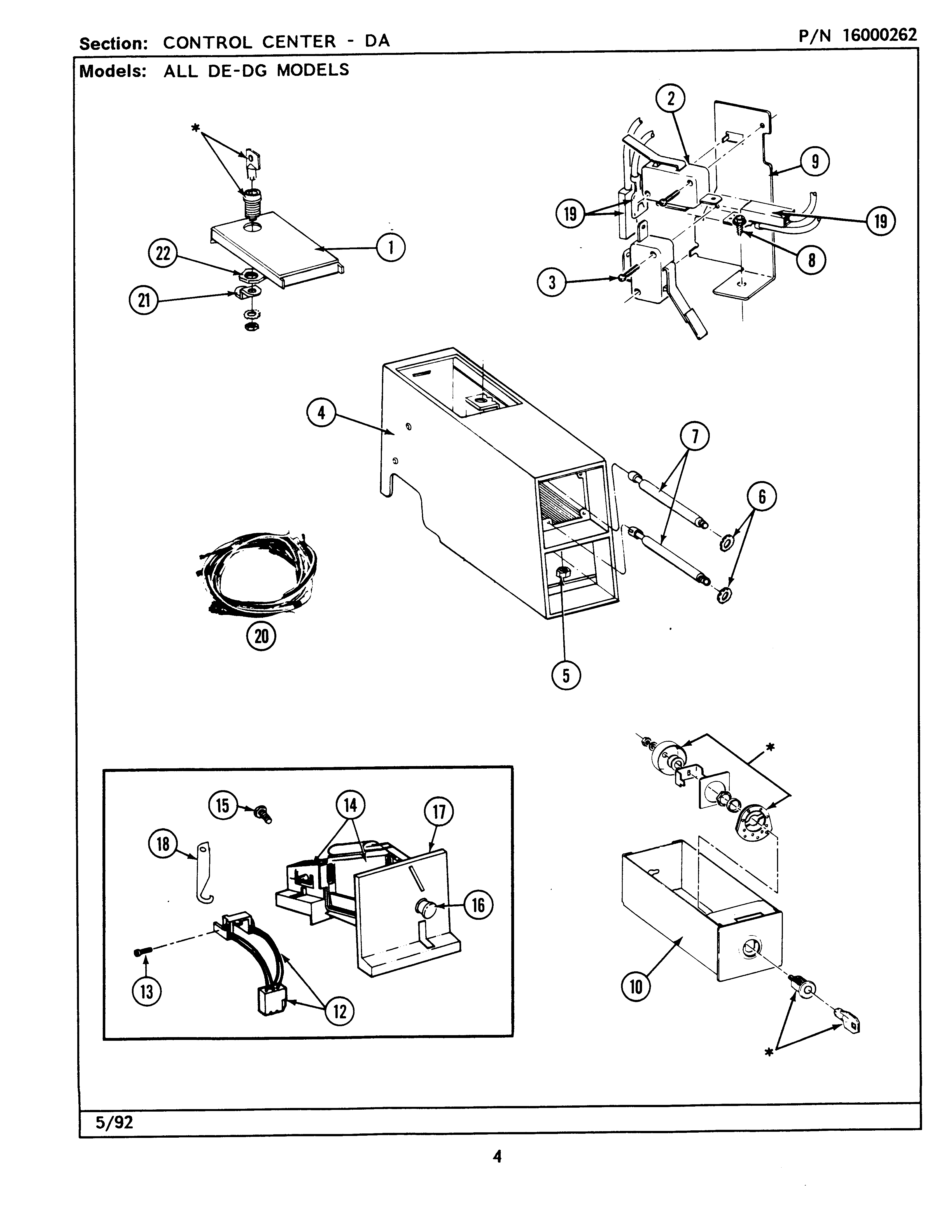

MDG26DAABG 02 – CONTROL CENTER

Products

Position	Product
001	MAY 203188
001	ACCESS DOOR-ALMOND
001	MAY 203188M
002	WPW10447152 Whirlpool VLT Switch
003	MAY 912012
004	MAY 207940
004	(ALM)
005	WP62739 Whirlpool Nut
006	MAY 910181
007	MAY 213035
010	(ALM)
010	BOX, COIN (WHT)
012	MAY 206799
013	WP3395530 Whirlpool Screw
014	MAY 207949
016	MAY 216009
017	MTG. PLATE, SINGLE
018	MAY 216011
019	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
020	DOWEL PIN FOR HANDLE
021	W11165684 Whirlpool Cam
022	W11395752 Whirlpool Nut
