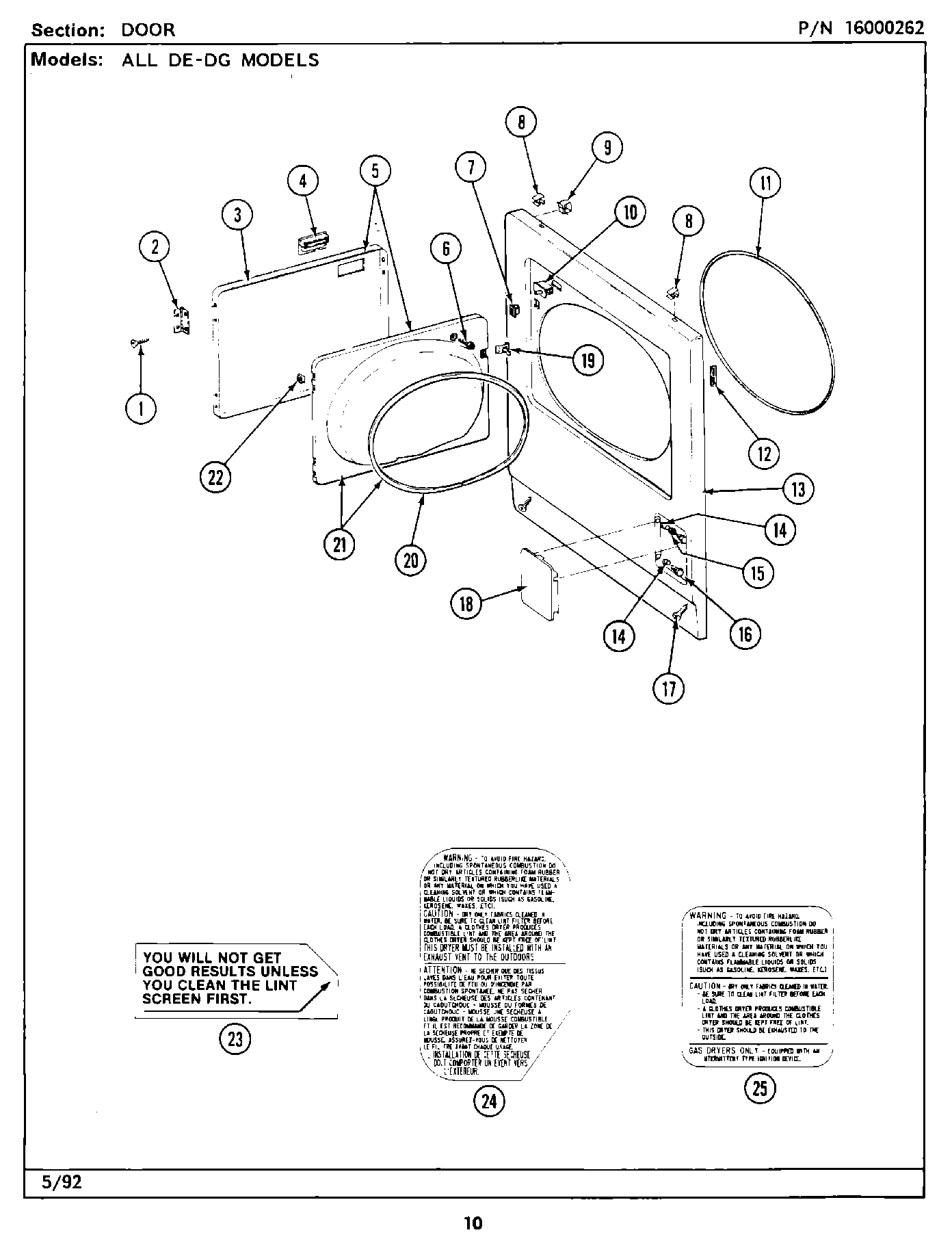

MDG26DAABG 05 – DOOR

Products

Position	Product
002	MAY 307099
003	MAY 314966
004	MAY 314972
004	MAY 314946
005	MAY Y307111
006	SCREW
007	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
008	MAY 212982
009	MAY Y310376
010	W10169313 Whirlpool Door Switch Kit
011	MAY 314937
012	MAY Y313907
013	(ALM)
015	SLEEVE, ACCESS DOOR RUBBER
016	SCREW, BUSHINGS
017	SCREW & FSTNER ASSY (FT. PNL)
019	MAY 314936
020	MAY 314935
021	MAY 307098
022	CLIP, DOOR LINER
023	LABEL, LINT SCREEN INSTR.
024	MAY 314941
025	DOWEL PIN FOR HANDLE
