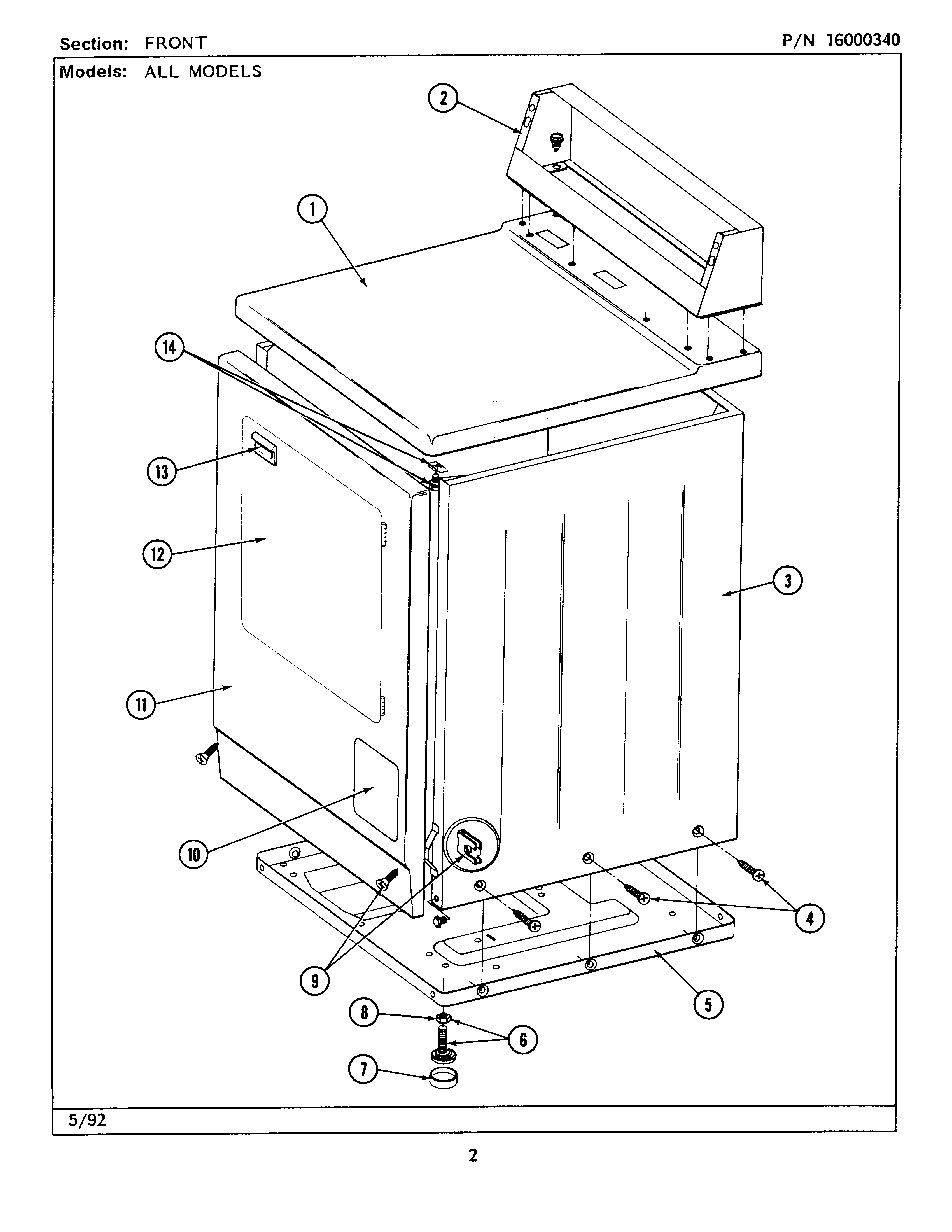

MDG26MNAAL 01 – FRONT VIEW

MDG26MNAAL 01 – FRONT VIEW

Written by

in

MDG26MNAAL 01 – FRONT VIEW

Products

PositionProduct
001TOP COVER ASSY. (WHT)
002MAY 212276
003MAY Y310632
004213007 Whirlpool Screw #12
005MAY Y303361
006W10176519 Whirlpool Leveling Feet
007WPY314137 Whirlpool Rubber Foot
008WP62739 Whirlpool Nut
009SCREW & FSTNER ASSY (FT. PNL)
012MAY 308061
013MAY 314946
013MAY 314972
013DOWEL PIN FOR HANDLE
014MAY 204445
